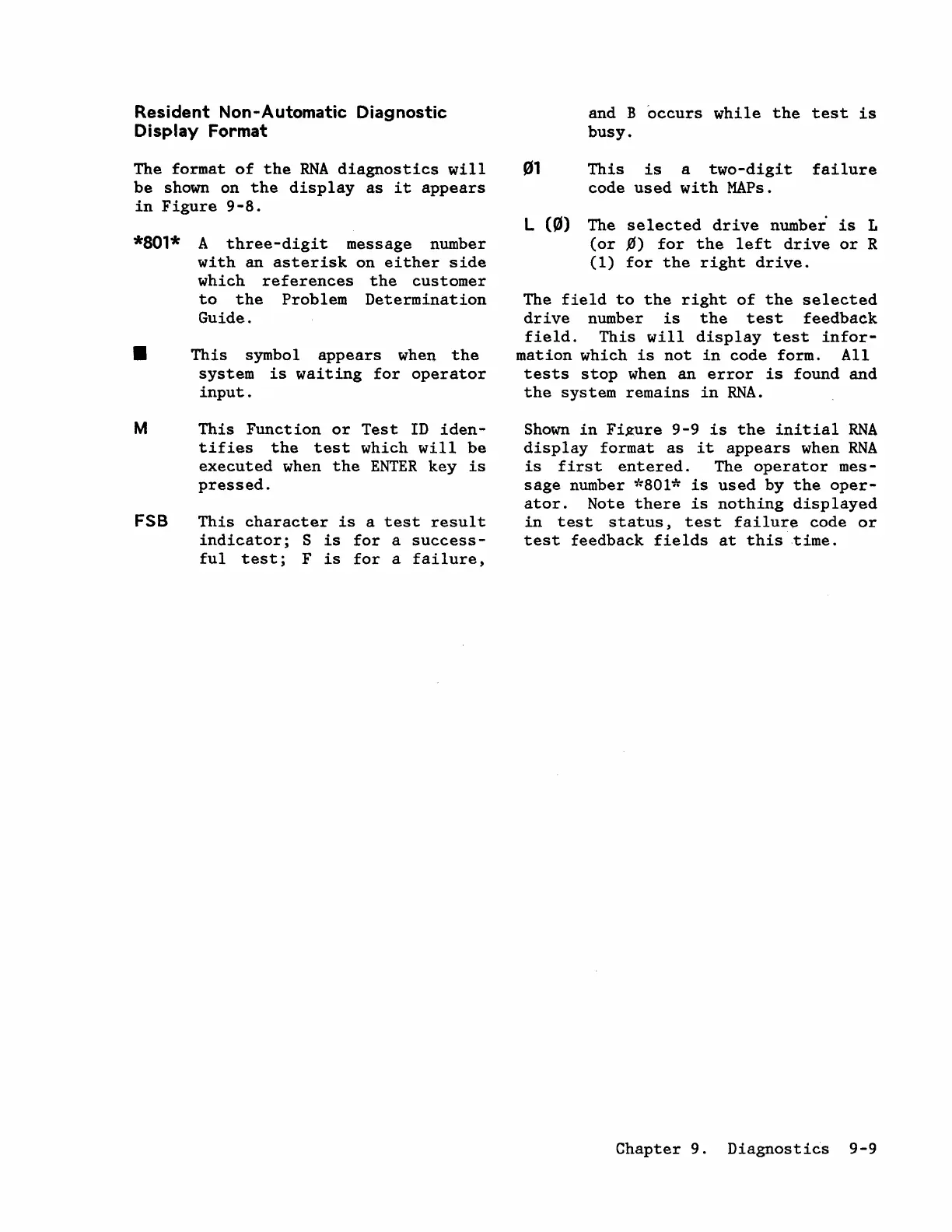

Resident Non ... Automatic Diagnostic
Display Format
The format of the RNA diagnostics will
be shown on the display as it appears
in Figure 9-8.
*801* A three-digit message number
with an asterisk on either side
which references the customer
to the Problem Determination
Guide.
• This symbol appears when the
system is waiting for operator
input.
M This Function or Test ID iden-
tifies the test which will be
executed when the ENTER key is
pressed.
FSB This character is a test result
indicator; S is for a success-
ful test; F is for a failure,
01
and Boccurs while the test is
busy.
This is a two-digit failure
code used with MAPs.
L un The selected drive number' is L
(or ~) for the left drive or R
(1) for the right drive.
The field to the right of the selected
drive number is the test feedback
field. This will display test infor-
mation which is not in code form. All
tests stop when an error is found and
the system remains in RNA.
Shown in Fi~ure 9-9 is the initial RNA
display format as it appears when RNA
is first entered. The operator mes-
sage number *801* is used by the oper-
ator. Note there is nothing displayed
in test status, test failure code or
test feedback fields at this time.
