Figure 44 on page 136 shows the adapter. The connector plug (A) is installed in an empty port and
prevents damage to that port whenever a cable for the adjacent port connectors is plugged-in or
removed.

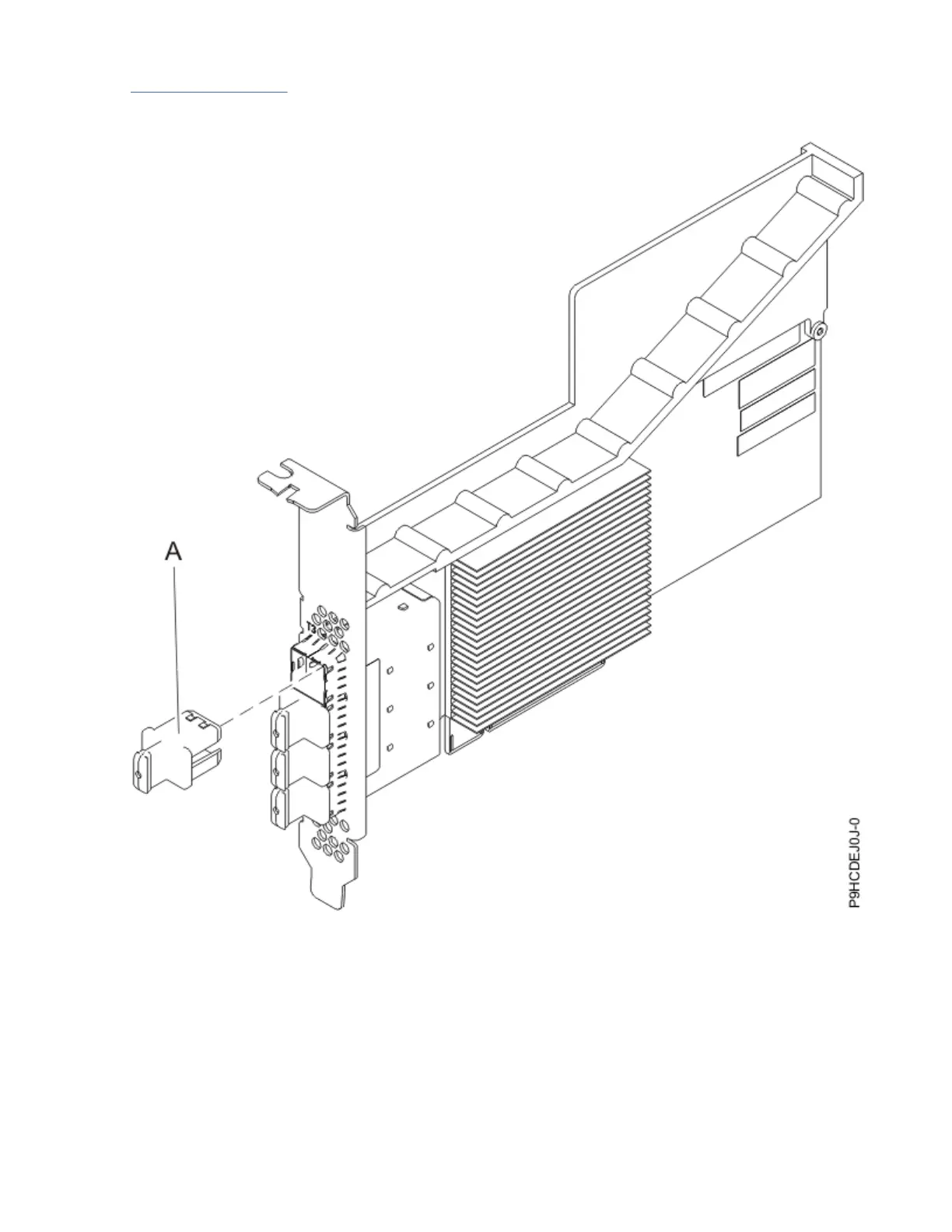

Figure 44. PCIe3 SAS RAID adapter
Specications
Item
Description
Adapter FRU number
000FX846 (Designed to comply with RoHS requirement)
Connector plug part number
00FW784 (The connector plug is installed in an empty port and prevents damage to that port
whenever a cable for the adjacent port connectors is plugged-in or removed.)
136
Power Systems: Managing PCIe adapters
