PCIe3 cable adapter (FC EJ20; CCIN 2CF5)
Learn about the specications and operating system requirements for the feature code (FC) EJ20 adapter.
Overview
FC EJ20 is a full-height, half-length PCIe3 cable adapter. The adapter provides two optical ports for the
attachment of two expansion drawer cables. One adapter supports the attachment of one PCIe3 6-slot
fanout module in a EMX0 PCIe Gen3 I/O expansion drawer.
Note: The FC EJ20 (CCIN 2CF5) adapter only works with the CCIN 50CD PCIe3 6-slot fanout module.

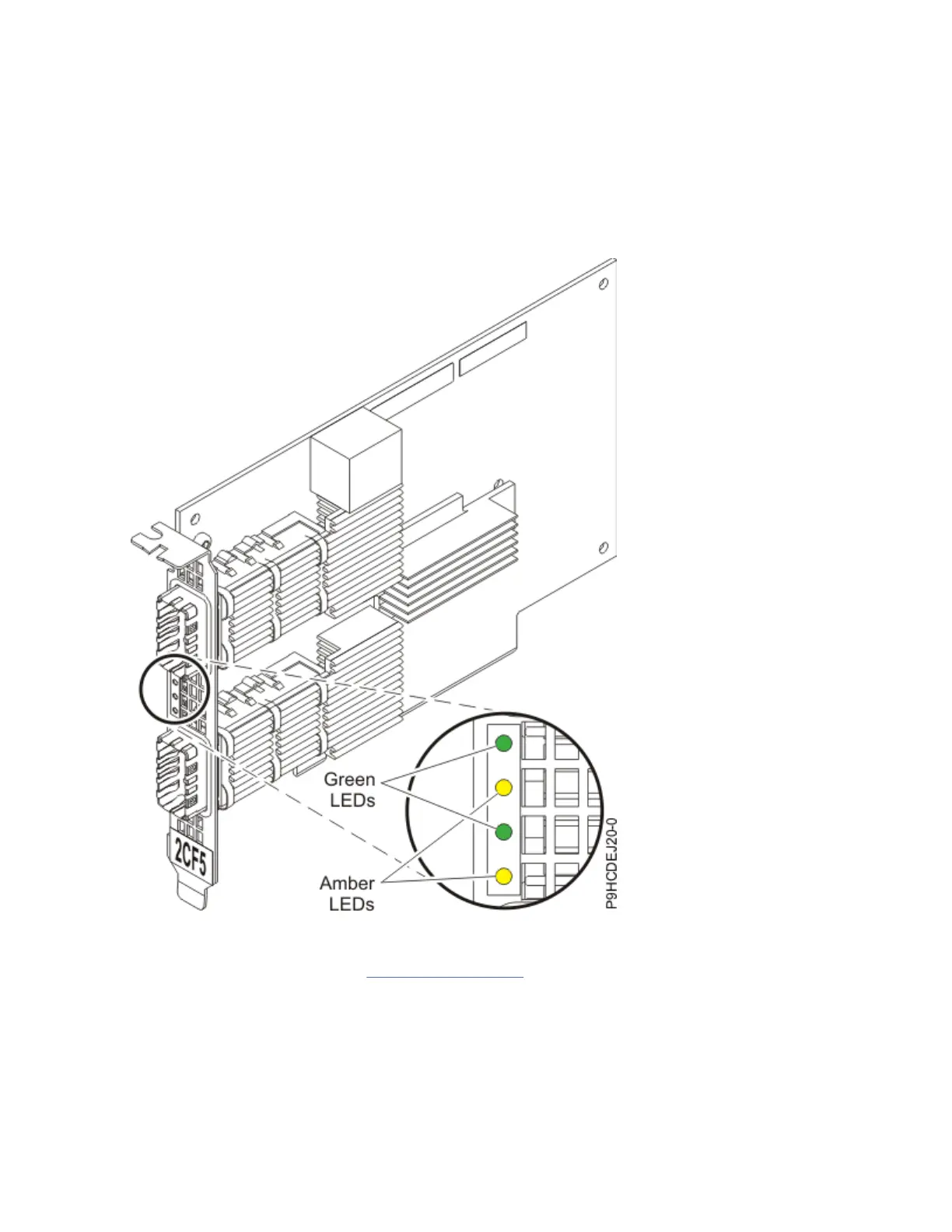

Figure 58. PCIe3 cable adapter
Note: The LEDs that are shown in Figure 58 on page 166 indicate the following states:
• The green LED indicates link status. If the green LED is on, at least one PCIe link is in the trained state.
• The amber LED indicates FRU identify. If the amber LED is on, it will blink at 2 Hz, and indicates that the
adapter is in the identify function state.
Specications
Item
Description
166
Power Systems: Managing PCIe adapters
