Attention: When installing the cable connectors, use extreme care to prevent
damaging the housing or scratching the ends of the fiber optic cables.
5. Remove the dust covers from the first optical cable.
Note: If your system unit is an AS/400e system 620 or server 720 the optical cables
connect to an optical cable connector with this label:
BUS 06 BUS 05
BUS 04 BUS 03
Use the next available set of connectors.
6. Install one end of the optical cable into the upper optical connector of the 2688
OLP card on your system unit (BUS 06 or BUS O4 for 620s and 720s).
7. On unit 5066–002 locate the optical connectors that are labeled 0 and 1.
8. Remove the terminating plug from the optical connectors that are labeled 0
and 1.
9. On unit 5066–002, install the other end of the optical cable into the optical
connector that is labeled 0.
10. Remove the dust covers from the second optical cable.
11. On the unit 5066–002, install one end the second optical cable into the optical
connector that is labeled 1.
12. On unit 5066-001, install the other end of the optical cable into the optical
connector that is labeled 0.
13. Remove the dust covers from the third optical cable.
14. On unit 5066-001, install one end of the optical cable into the optical connector
that is labeled 1
15. Install the other end of the optical cable into the lower optical connector of the
2688 OLP card on your system unit (BUS 05 or BUS O3 for 620s and 720s).

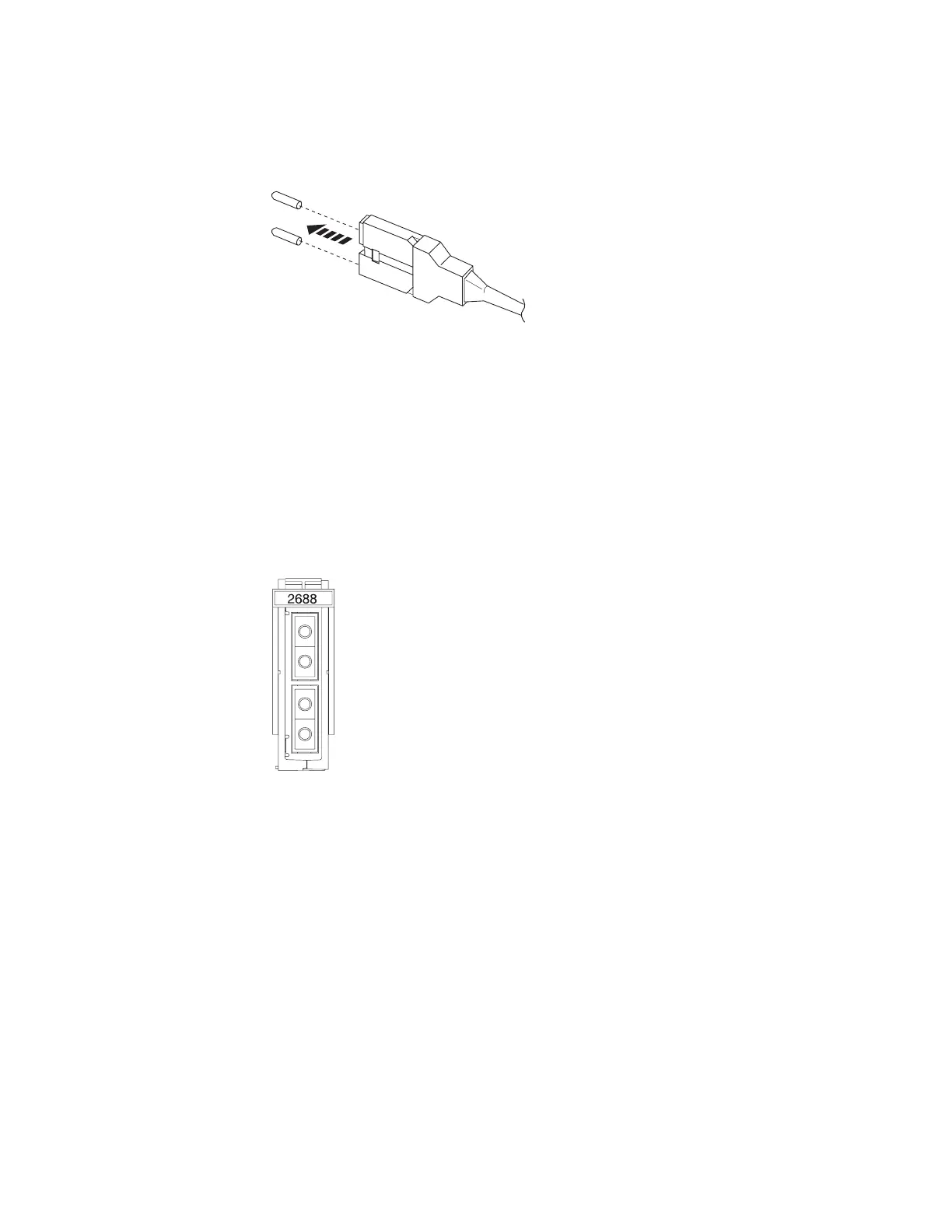

Figure 24. Removing optical plug dust covers
Figure 25. 2688 OLP card
Chapter 3. Setting up your 5066 Expansion Unit 21
