1. Find the optical cables and the SPCN cable in the information that is shipped
with your expansion unit. You will use three optical cables and two SPCN
cables to perform this procedure.
2. Locate an available 2688 OLP card (Figure 25 on page 21) on your system unit.
3. Remove the terminating plugs from the optical connectors on the OLP card.
4. Label each end of the optical cables (Figure 23).

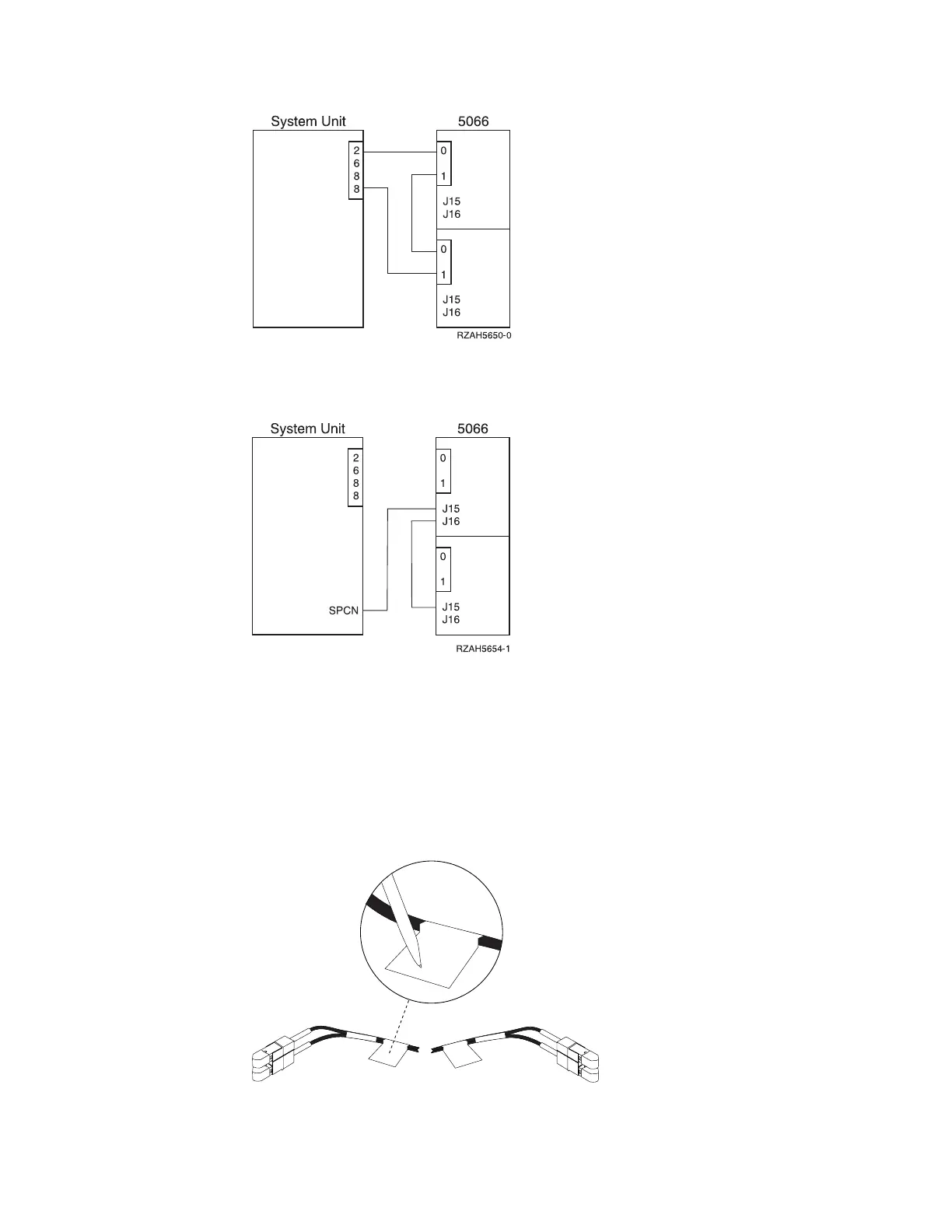

Figure 21. Connecting the optical cables.
Figure 22. Connecting SPCN cables
Figure 23. Labeling the optical cables
20 Setting Up Your 5065 or 5066 Expansion Unit V4R5
