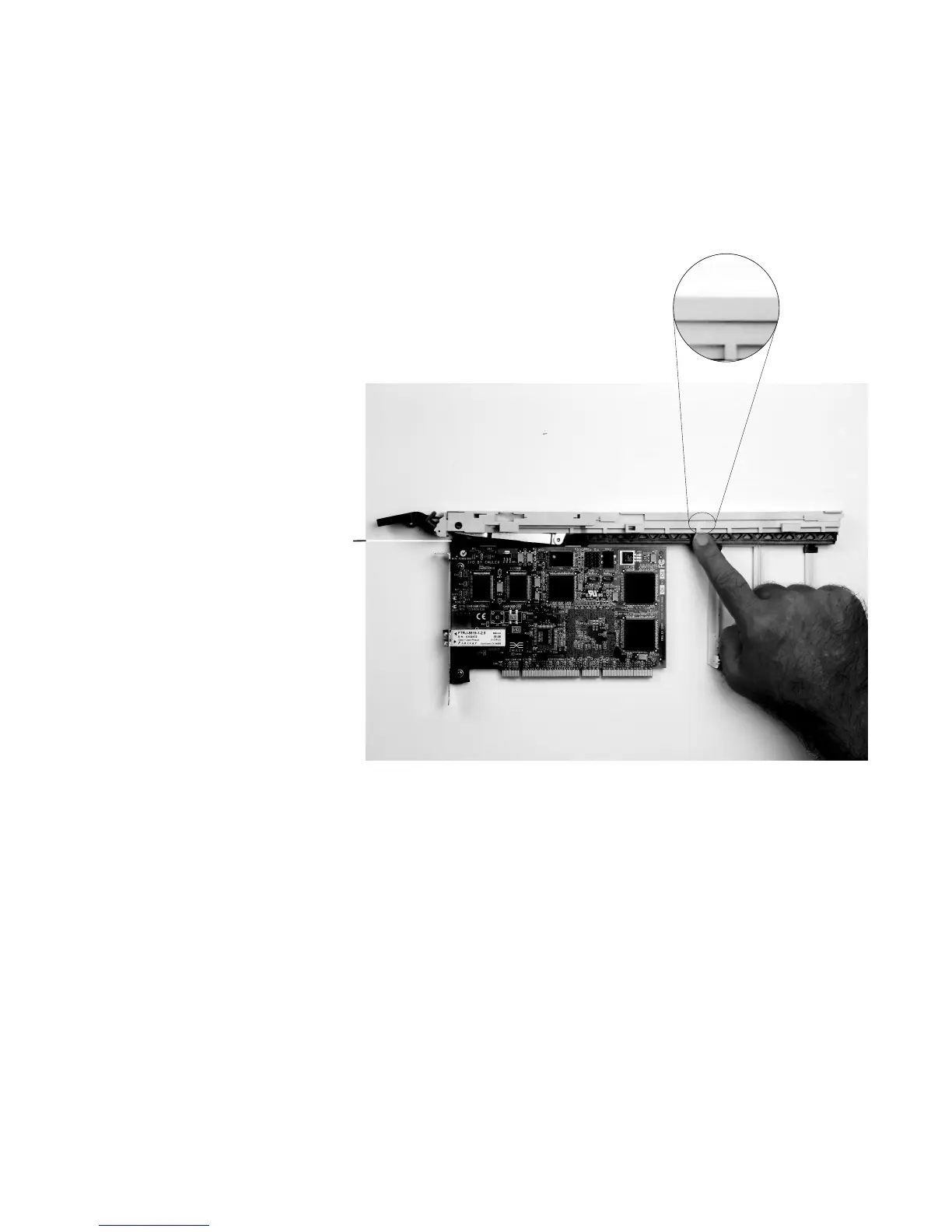

c. The cassette linkage is marked to show long or short adapters similar to the
adapter shown below. Check the right end of the adapter to see if it is long
enough to fall into the long range. Ensure that the corner on the left end of the
adapter is still aligned into the top adapter retaining clip and determine the
length of the adapter.
LONG
ARM
ARM
SHORT
Top Adapter
Retaining Clip
3. Remove the adapter or blank filler and ensure that the handle is in the up position.
If you need to move the handle, ensure that the grey locking bar is pulled into the
unlocked position, and then rotate the adapter handle until the handle is in the up
position (the cassette linkage will extend down beyond the cassette top). If you are
installing a short adapter or blank filler, proceed to “Short Adapter or Blank Filler
Installation” on page 90. If you are installing a long adapter, proceed to “Long
Chapter 8. Removal and Replacement Procedures 89
