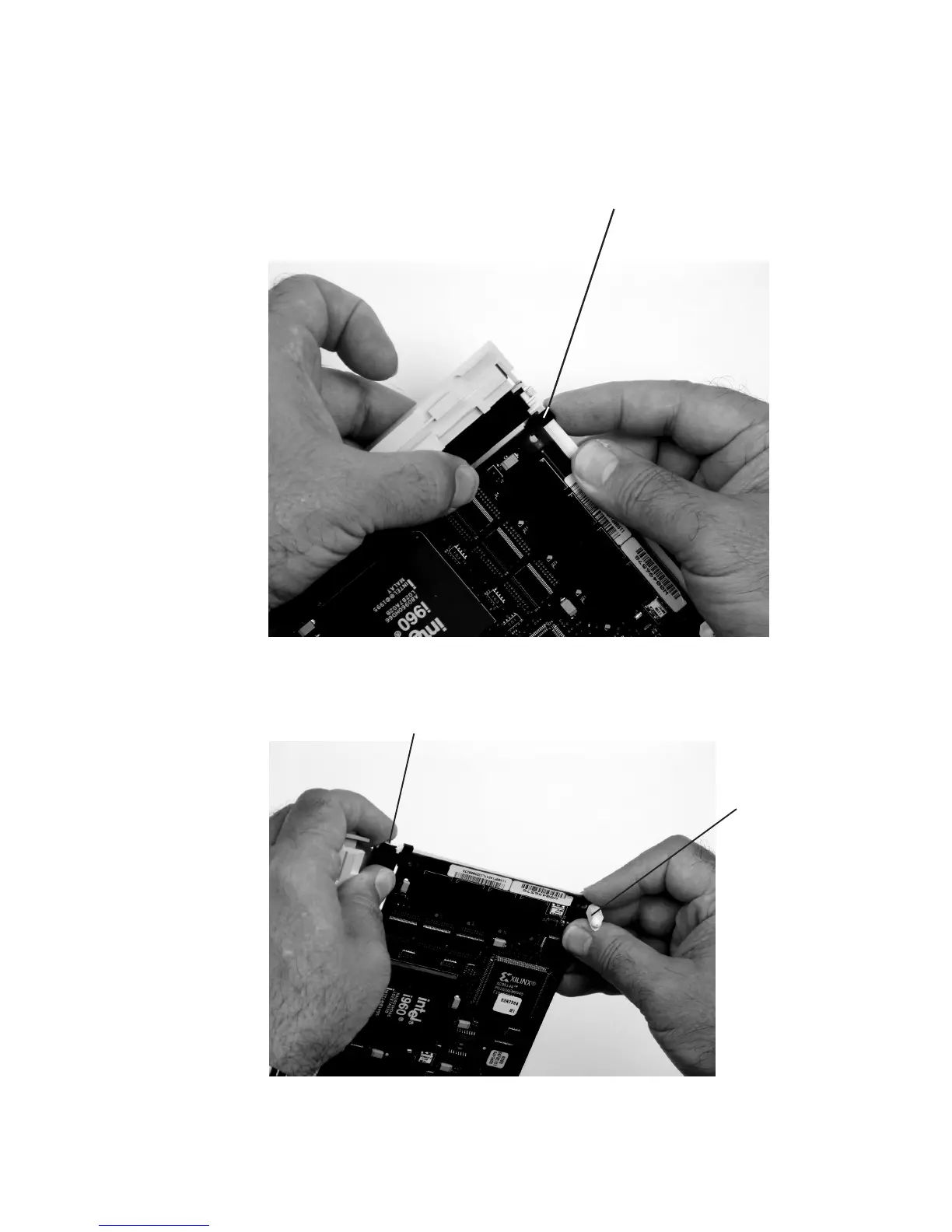

d. Ensure that the adjustable top adapter retaining clip catches the corner of the
adapter as shown in the following figures.
Long Arm Adjustable Retaining Clip
e. Ensure that the bottom edge of the adapter is held by the lower part of the
adapter retaining arm.
Long Adapter Arm
Adjustable Retaining Clip
Long Adapter
Retaining Arm Slot
108 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
