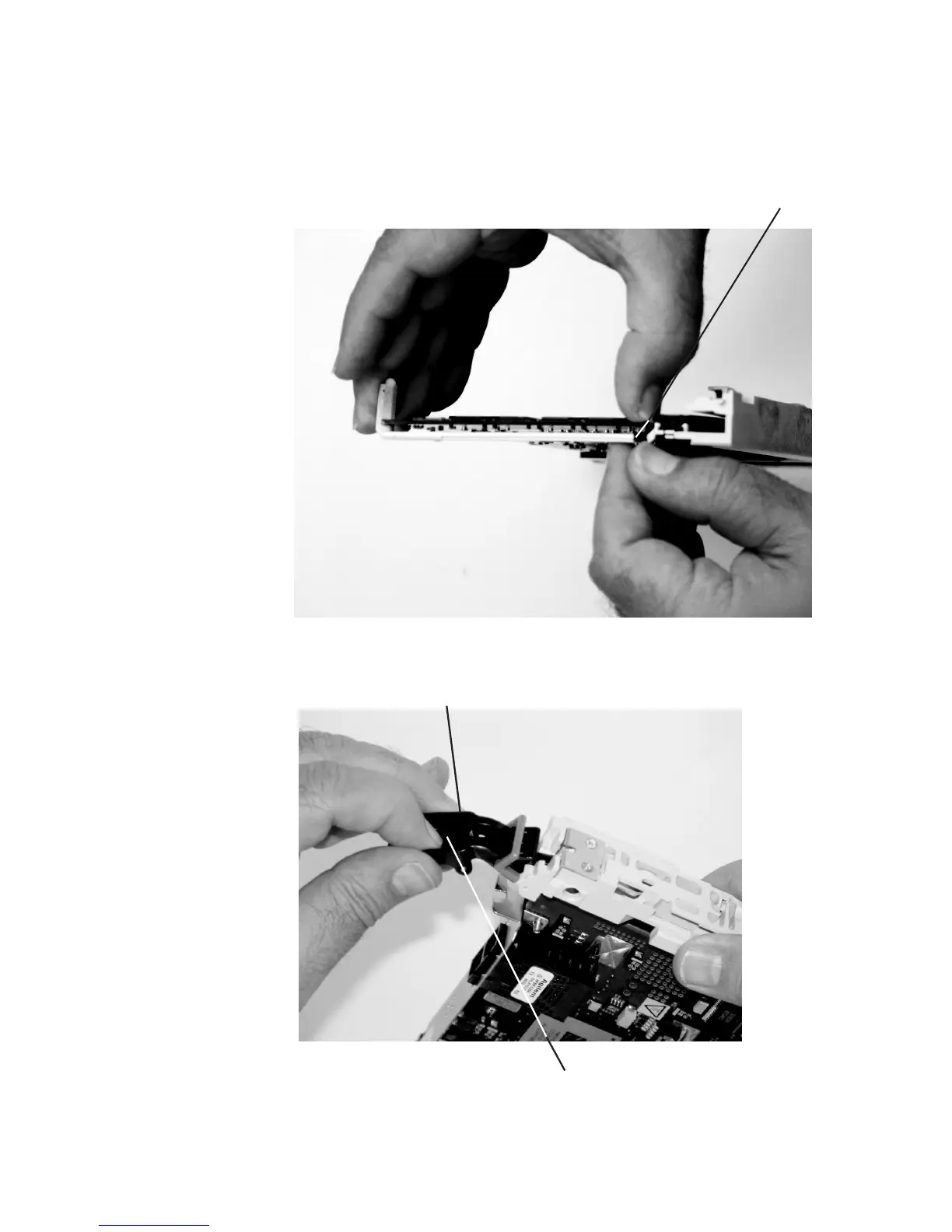

f.
T
o
hold
the
top
of
the
adapter
,
slide
the
top
adjustable
adapter
retaining
clip
on
the
retaining
arm
down.
Long
Adapter
Retaining
Arm
g.
Press
the
lock
on
the
handle
and
rotate
the
adapter
handle
until
the
it
is
in
the
down
position
(adapter
or
blank
filler
moves
up
into
the
cassette
assembly).
Lock
Handle
Chapter
8.
Removal
and
Replacement
Procedures
109
124
126
Table of Contents
