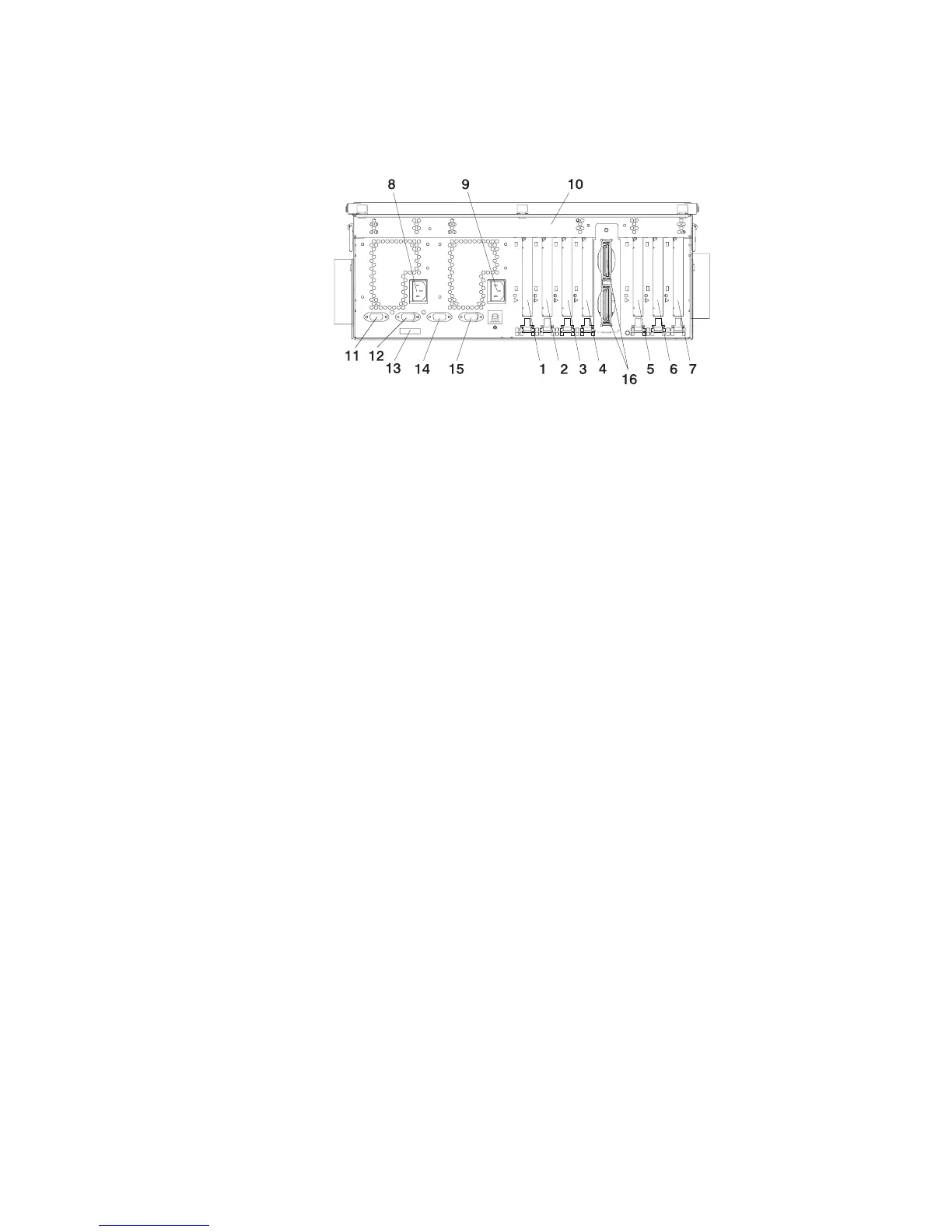

Model D20 Rear View
1 PCI-X Expansion Slot 1 9 Primary Power Supply
2 PCI-X Expansion Slot 2 10 Model D20 I/O Drawer
3 PCI-X Expansion Slot 3 11 Connector J11 (Not Used)
4 PCI-X Expansion Slot 4 12 Connector J14 (Not Used)
5 PCI-X Expansion Slot 5 13 Rear Serial Number Label
6 PCI-X Expansion Slot 6 14 Connector J15 System Power
Control Network Connector
(SPCN)
7 PCI-X Expansion Slot 7 15 Connector J16 System Power
Control Network Connector
(SPCN)
8 Redundant Power Supply
Receptacle
16 RIO Connectors
Upper Connector = 1
Lower Connector = 0
20 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
