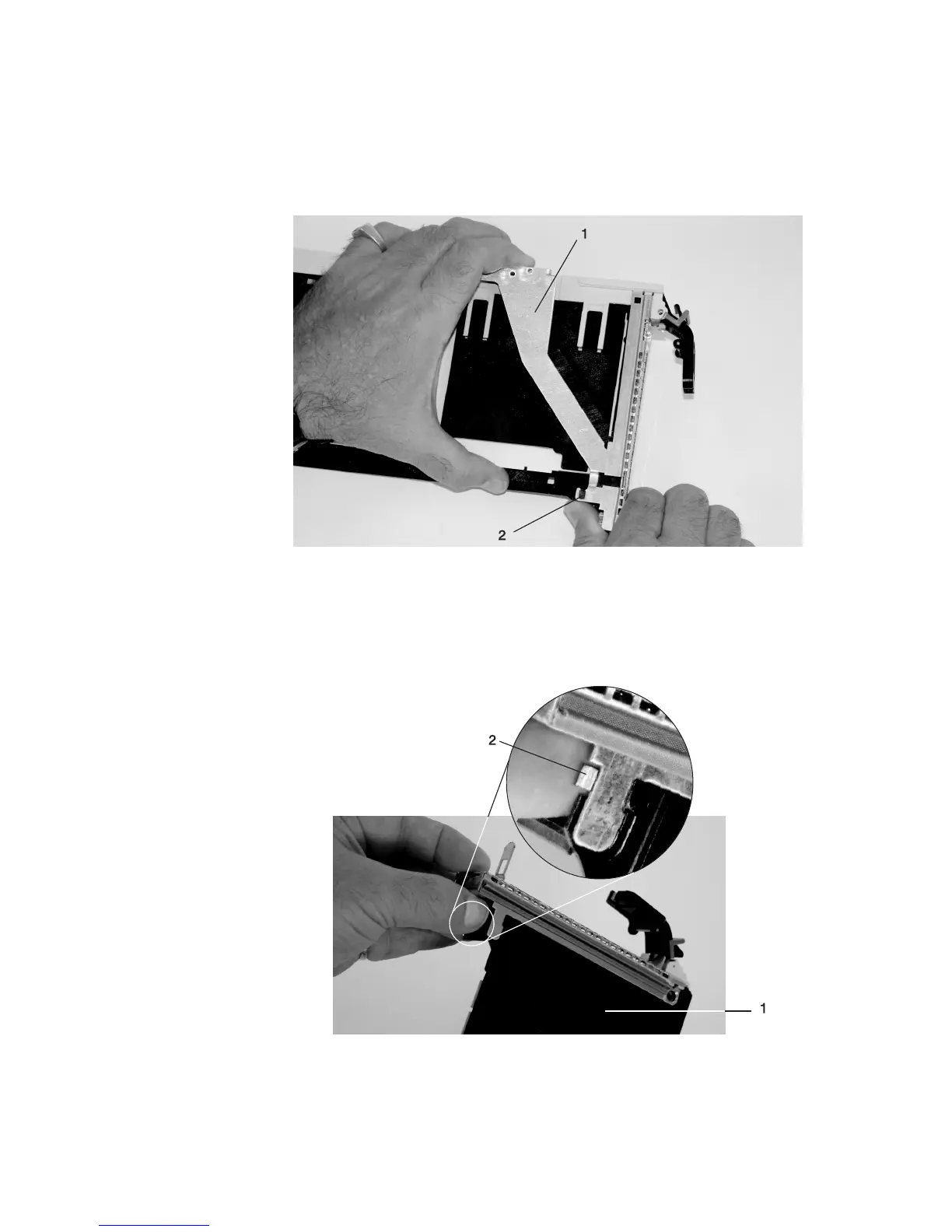

c. While holding the bezel extension out, push the plastic cover arm latch out of
the bezel hook, as shown in the following illustration. This action allows the
bezel to be removed.
1 Bezel Extension 2 Plastic Cover Latch in Bezel
Hook
d. On the opposite side of the cassette (cover side), push the cover latch to
release the bezel.
1 Cover Side 2 Cover Latch
78 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
