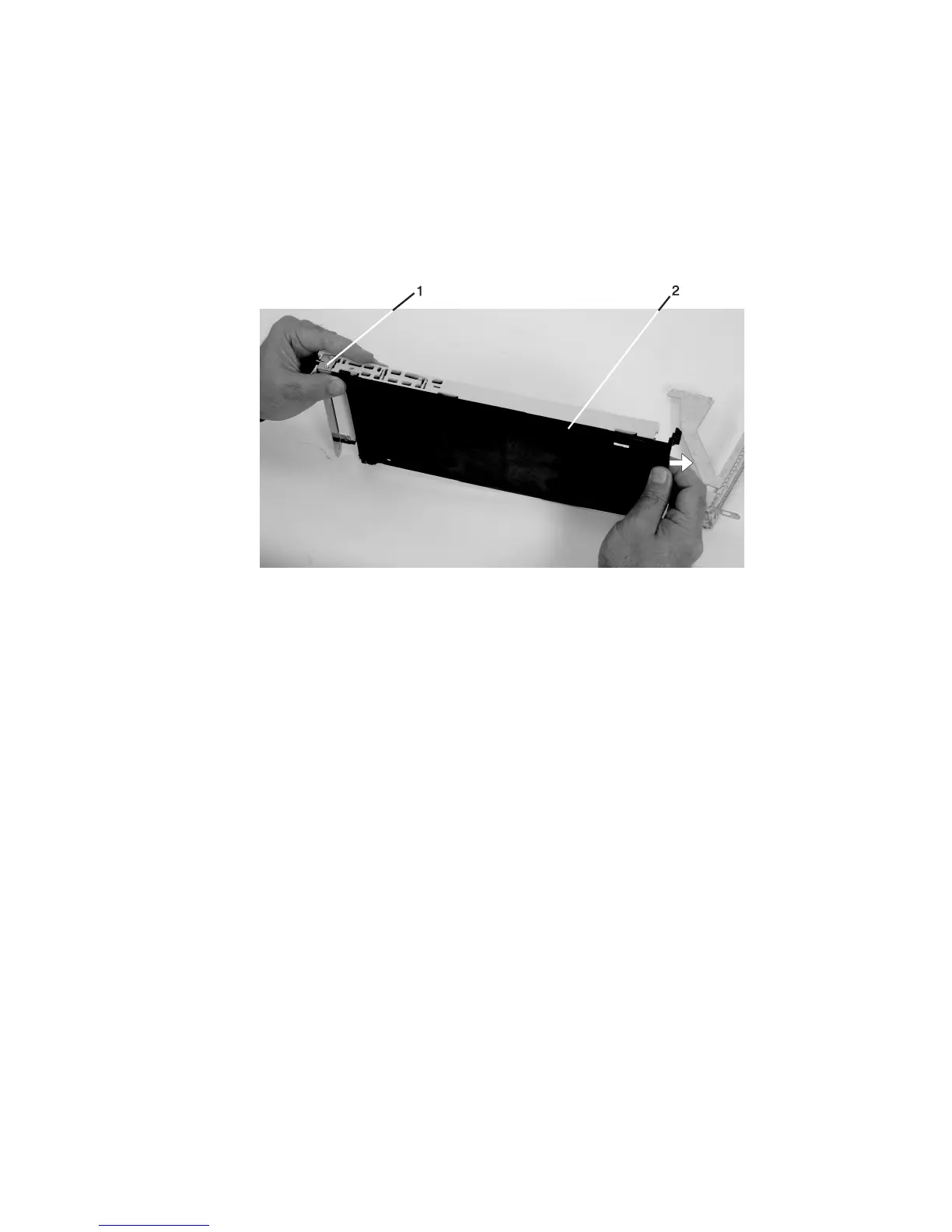

6. As shown in the following illustration, turn over the cassette so the cover is up.
Remove the cover from the cassette as follows:
a. Slide the cover until it releases from the cassette assembly.
Attention: The cover might be tight and difficult to slide, if you grasp the left
end (handle end) of the cassette and the right end of the cover, you can use
enough force to pull the cover off of the PCI adapter cassette assembly.
1 Left End of the Cassette 2 Cassette Cover
b. Lift the cover off the assembly and set it aside.
80 Eserver pSeries 7311 Model D10 and Model D20 Service Guide
