41 90H6629 2 Power supply — 765 watts
(P01, P02)
42 53P4651 1 Power sub frame assembly
43 1621811 12 Screw, M4 (10mm)
44 24L0940 AR Filler, Spacer
45 1621811 2 Screw, M4 (10mm)
46 24L0939 AR Filler, Power Supply
47 1621811 2 Screw, M4 (10mm)
48 NONUM 1 EMC access plate
49 1621811 2 Screw, M4 (10mm)
50 44H8641 2 Cable Clamp, To p
51 44H8640 2 Cable Clamp, Base
52 1621811 2 Screw, M4 (10mm)

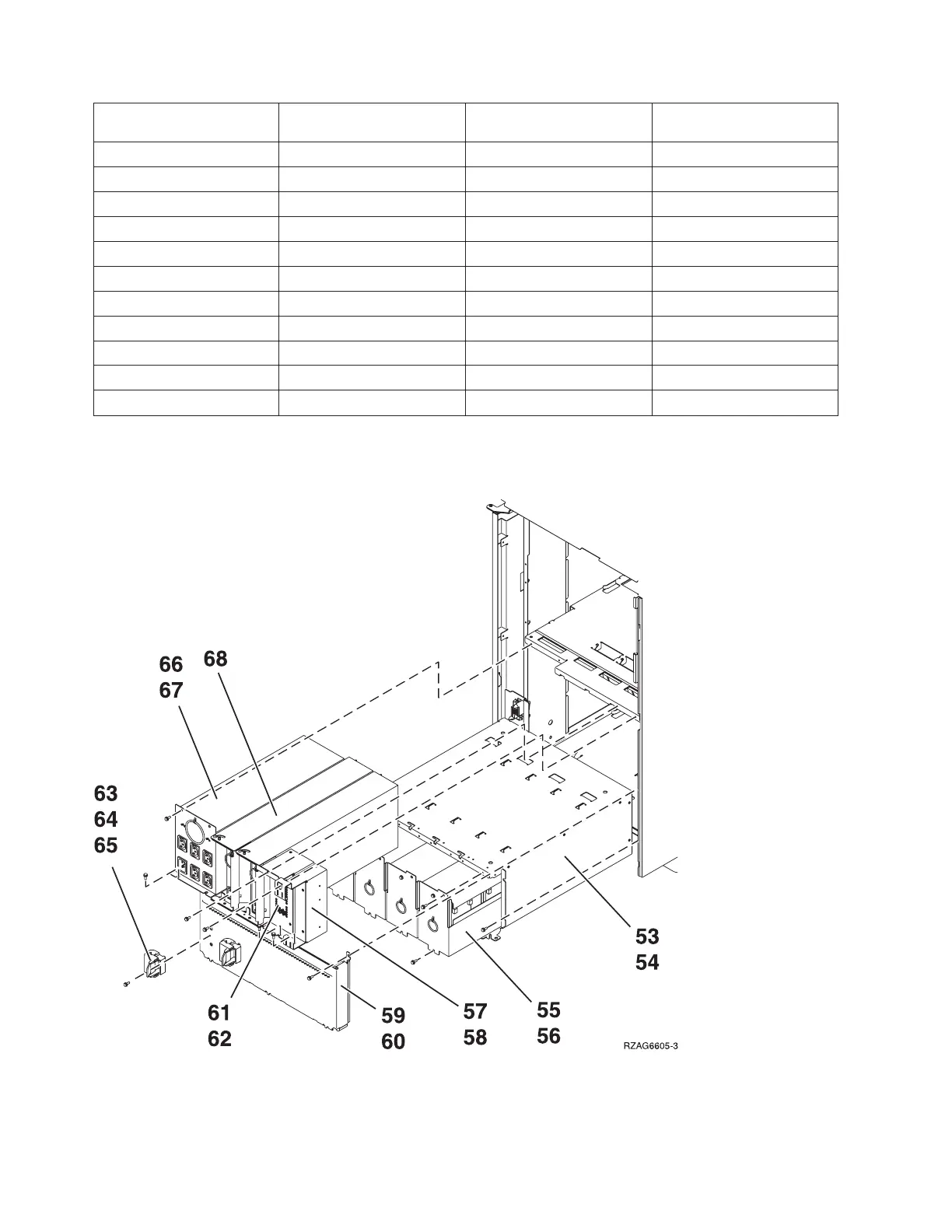

Figure 6. Final assembly, rear - Models 830 and SB2 with FC 9074 (continued), (single line cord)
Table 6. Final assembly, rear - Models 830 and SB2 with FC 9074 (continued), (single line cord)
408 Hardware (Remove and Replace; Part Locations and Listings)
To Next Page
