a. Press the catch to release the handle î1î.
b. Lift the handle on the battery î2î.
c. Lift the battery out of the power supply unit î3î.
4. Install the replacement battery.
Attention: The replacement battery has protective end caps that must be
removed prior to use.
a. Remove the battery from the packaging.
b. Remove the end caps.
c. Attach the end caps to both ends of the battery that you removed and place
the battery in the original packaging.
2
svc00611
3
1

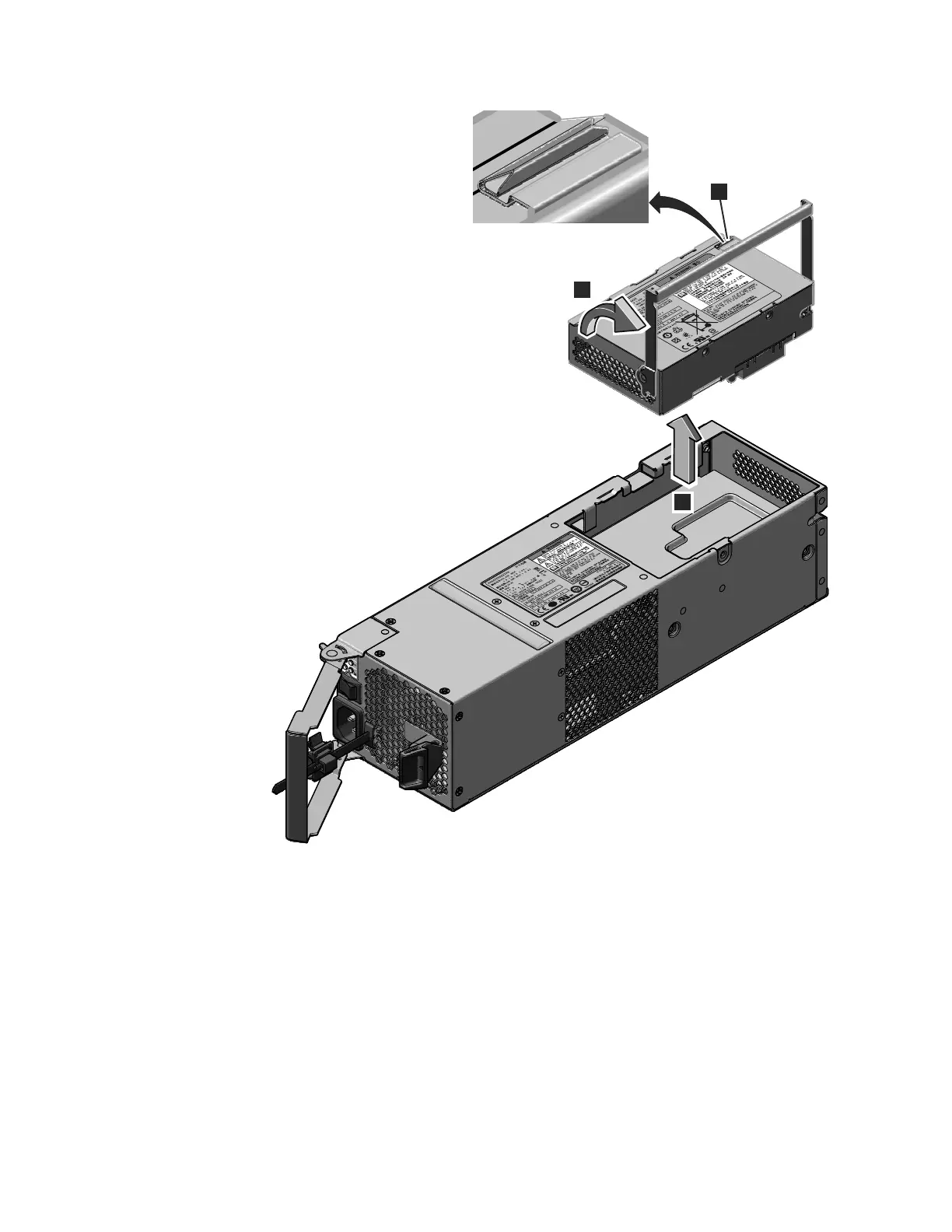

Figure 33. Removing the battery from the control enclosure power-supply unit
Chapter 8. Removing and replacing parts 95
