2. Pull the tab with the arrow away from the connector.
3. Plug the replacement cable into the specific port.
4. Ensure that the SAS cable is fully inserted. A click is heard when the cable is
successfully inserted.
Replacing a control enclosure chassis
This topic describes how to replace a control enclosure chassis.
Note: Ensure that you know the type of enclosure chassis that you are replacing.
The procedures for replacing a control enclosure chassis are different from those
procedures for replacing an expansion enclosure chassis. For information about
replacing an expansion enclosure chassis, see “Replacing an expansion enclosure
chassis” on page 105.
svc00651

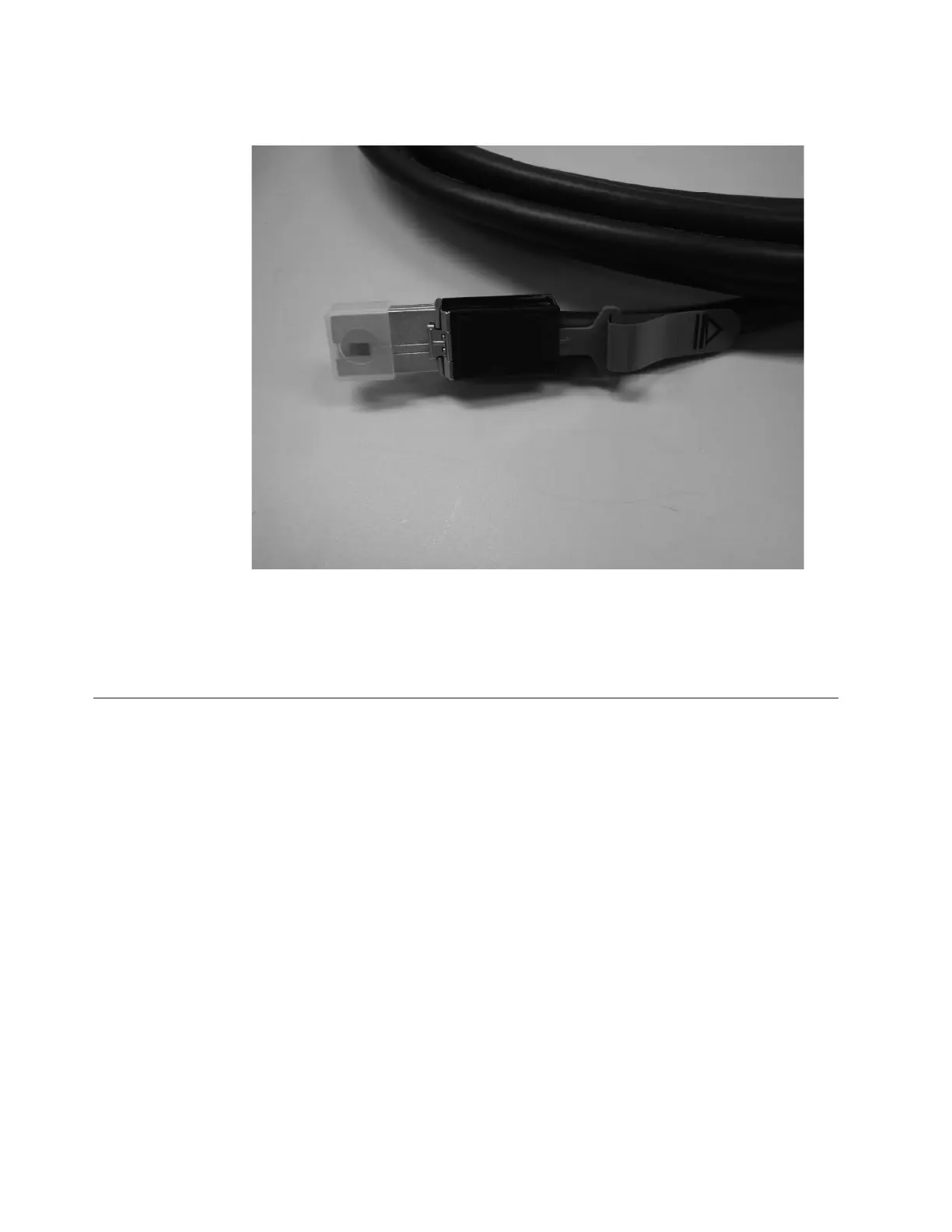

Figure 38. SAS cable
100 Storwize V7000: Troubleshooting, Recovery, and Maintenance Guide
