IBM Storwize V7000 - Expansion canister ports and indicators; Expansion canister SAS ports and indicators

Table 15. Expansion canister LEDs
Name Description Color Symbol
Status Indicates if the canister is active.
v If the LED is on, the canister is active.
v If the LED is off, the canister is not active.
v If the LED is flashing, there is a vital product data
(VPD) error.
Green
Fault Indicates if a fault is present and identifies the canister.
v If the LED is on, a fault exists.
v If the LED is off, no fault exists.
v If the LED is flashing, the canister is being identified.
This status might or might not be a fault.
Amber
1
svc00673
1

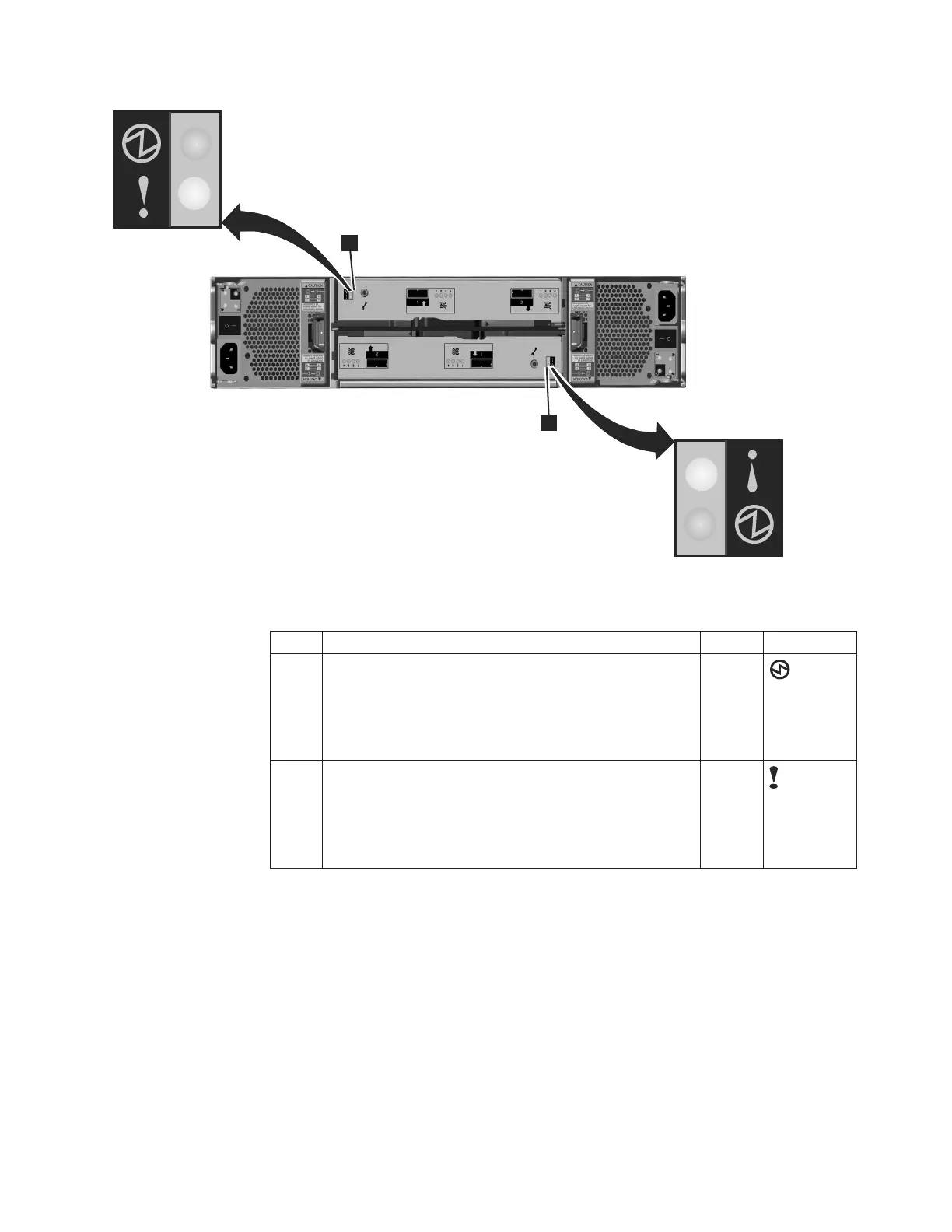

Figure 20. LEDs on the expansion canisters
Chapter 1. Storwize V7000 hardware components 17
