1 Fault LED
2 Activity LED
Table 4 shows the status descriptions for the two LEDs.
Table 4. Drive LEDs
Name Description Color
Activity Indicates if the drive is ready or active.
v If the LED is on, the drive is ready to be used.
v If the LED is off, the drive is not ready.
v If the LED is flashing, the drive is ready, and there is activity.
Green
Fault Indicates a fault or identifies a drive.
v If the LED is on, a fault exists on the drive.
v If the LED is off, no known fault exists on the drive.
v If the LED is flashing, the drive is being identified. A fault might
or might not exist.
Amber
1
2
svc00607

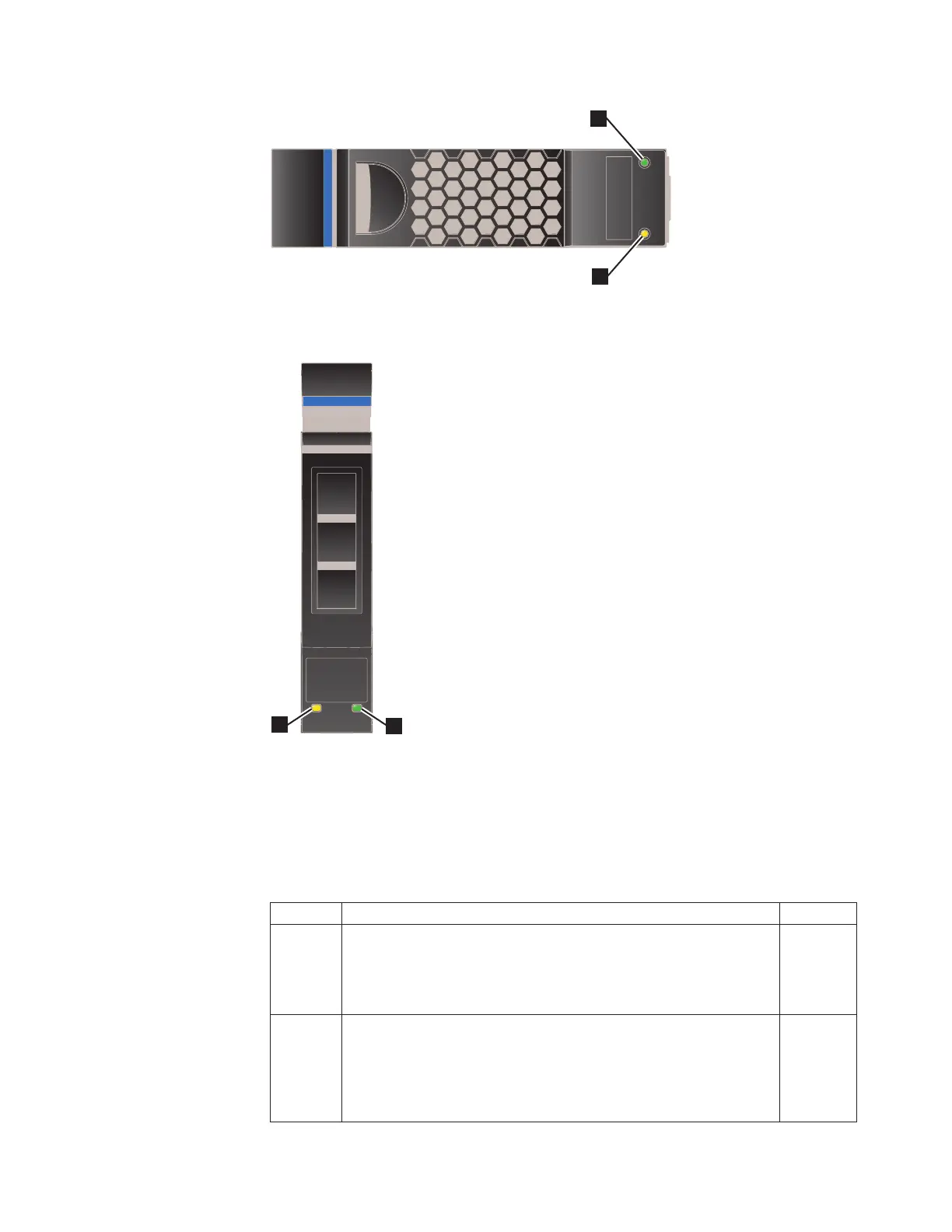

Figure 3. LED indicators on a single 3.5" drive
1
2
svc00606
Figure 4. LED indicators on a single 2.5" drive
