b. Grip the handle to pull the power supply out of the enclosure as shown in
Figure 32.
6. Insert the replacement power supply unit into the enclosure with the handle
pointing towards the center of the enclosure. Insert the unit in the same
orientation as the one that you removed.
svc00633

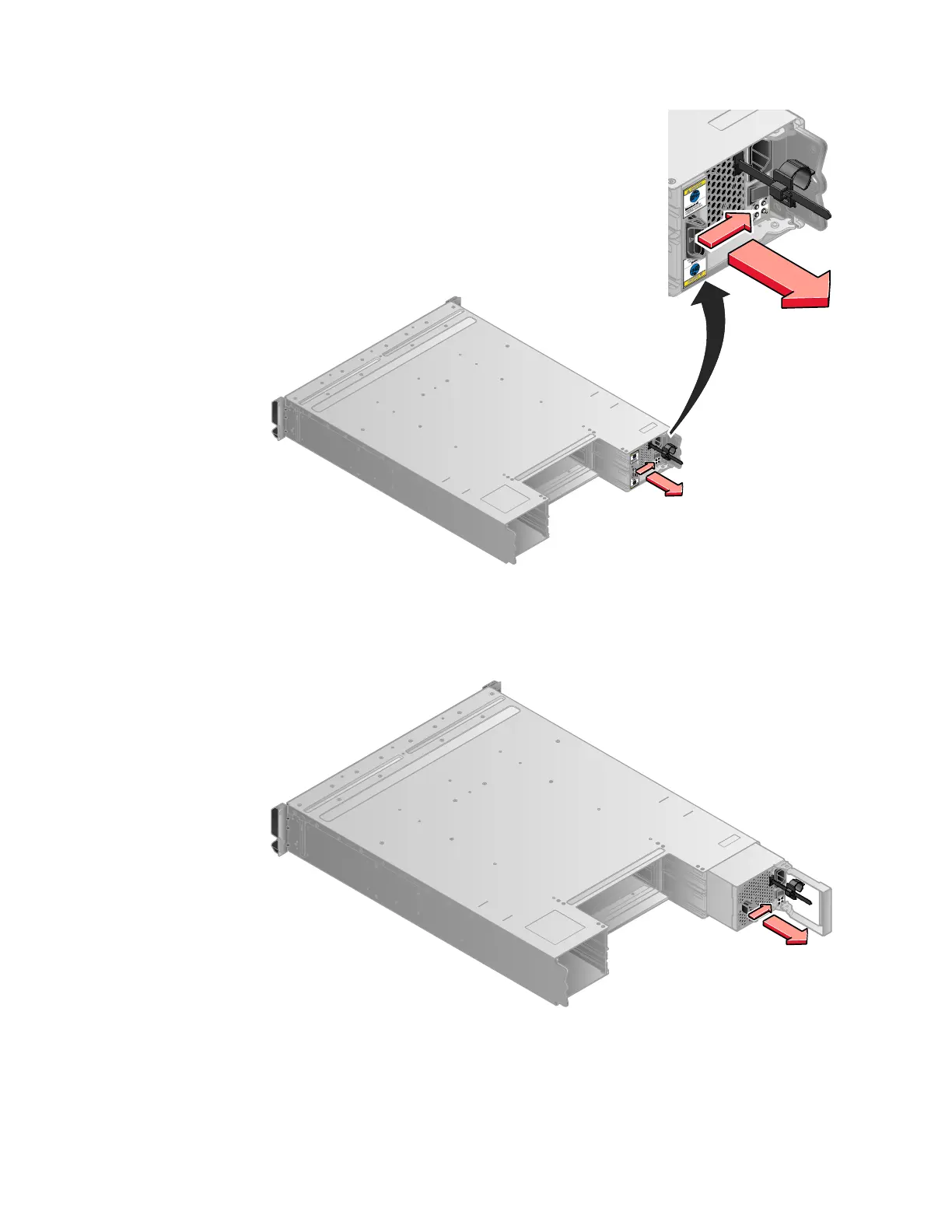

Figure 31. Directions for lifting the handle on the power supply unit
svc00632
Figure 32. Using the handle to remove a power supply unit
Chapter 8. Removing and replacing parts 91
