Unpacking the printer
Note: Save all packing material and shipping containers.
1. Remove the SureMark printer from the shipping container and place it on a flat
surface.
2. Open any shipping containers of additional options and accessories to install
with the SureMark printer.
3. Carefully remove any remaining packing material and packing tape.
Installing a SureMark printer
This section describes SureMark printer installation.
Installing for EIA-232/RS-485 communication
1. Power the system off and disconnect the EIA-232 power supply.
2. Locate the rear cable connectors.
3. If you are using the EIA-232 communication port:
a. For all models except TI8, TG8, TI9, TG9, check the settings on the
EIA-232 mode switch, which is near the rear cable connections. See
Figure 5 for thermal/impact printers. See Figure 6 on page 19 and Figure 7
on page 19 for single-station printers.
Notes:
1) If the EIA-232 communication cable has only 3 wires or if the system
output is 3 pins (2 signals and a ground), you must use XON/XOFF
mode.
2) Models TI8, TG8, TI9, TG9 do not have a mode switch for EIA-232
settings. See “EIA-232 communication mode selections (Models TI8,
TI9, TG8, TG9)” on page 30.
b. Connect the power supply to the printer.
EIA-232
Mode
Switch
(some
models)
Cash
Drawer
Port
Power Supply
Port (EIA-232
Only)
EIA 232
Port
RS-485 Port
1
2
OFF

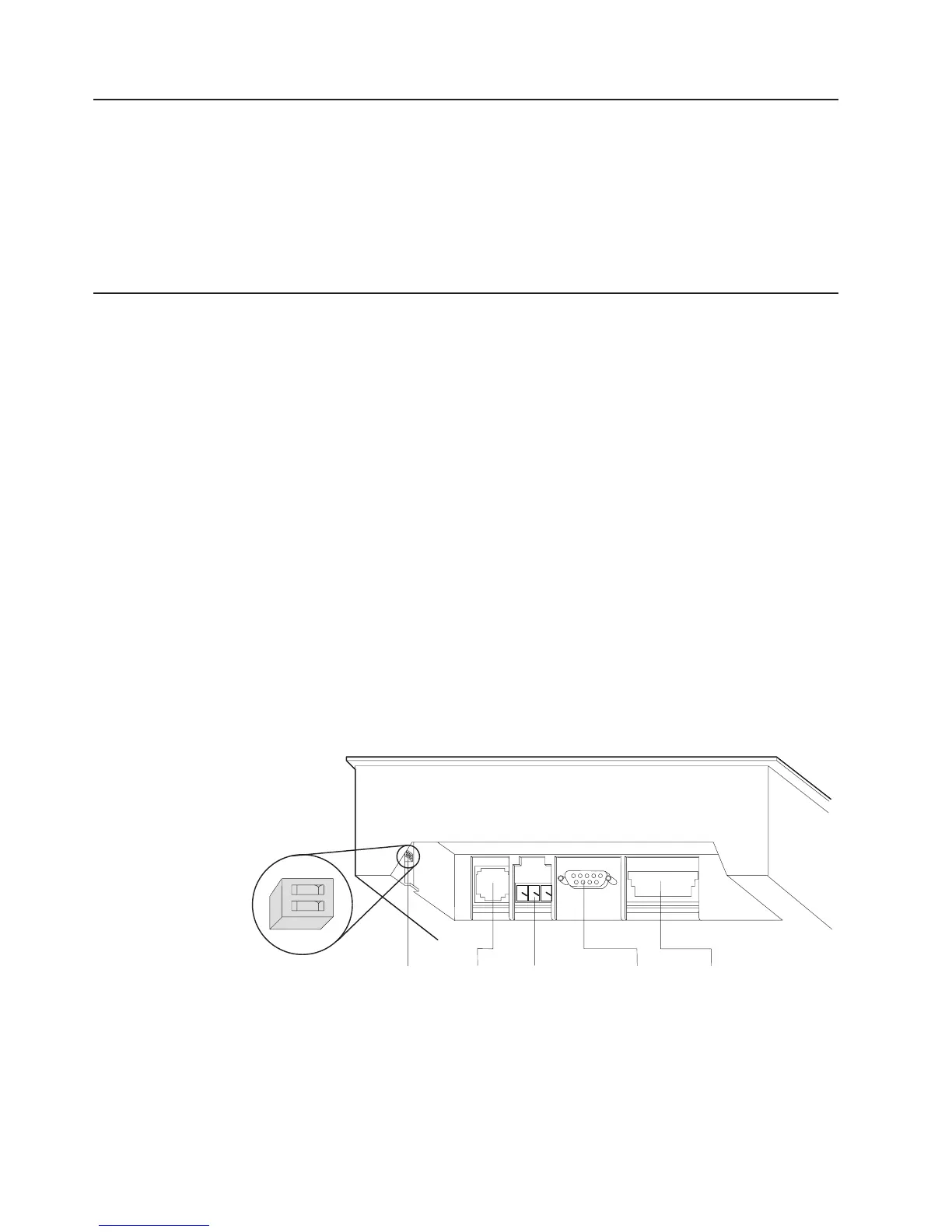

Figure 5. Cable connectors and EIA-232 settings switch for thermal/impact SureMark printers.
(View is from the bottom rear of the printer)
Updated April 2, 2009
18 SureMark Printers User’s Guide
