Ribbon loading
1. Open the ribbon cover. As the cover is opened, the print head moves to a
position where you can easily load a ribbon.
2. If there is already a ribbon cartridge installed, remove it by lifting it straight up.
Note: You might need to grasp the body of the cartridge rather than the top to
remove it.

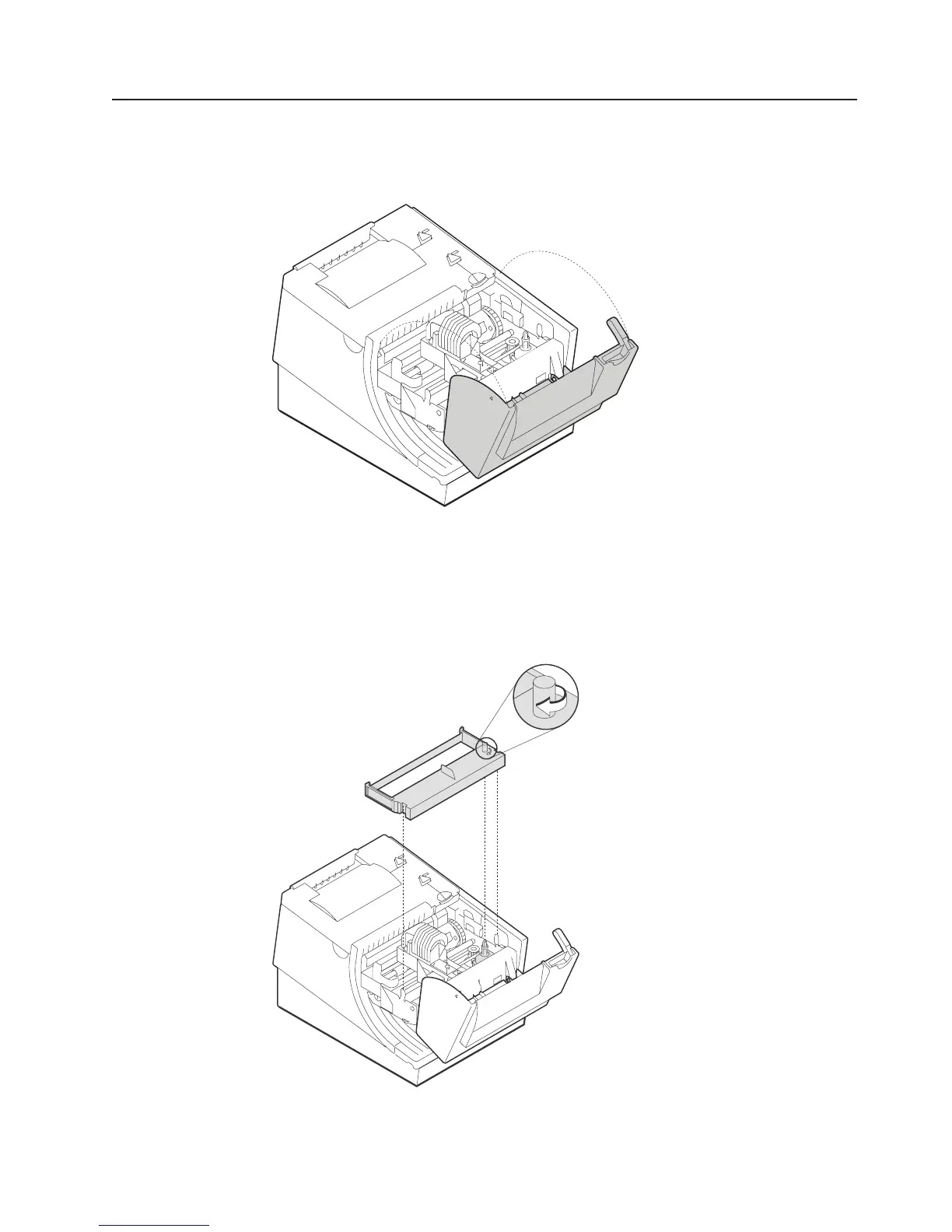

Figure 25. Opening the ribbon cover
Figure 26. Ribbon cartridge loading
Updated April 2, 2009
Chapter 4. Operation 51
