3. For single-station printers, route any power cord and cables as shown in

Figure 11.

4. Connect the USB communication cable to the correct port.

5. Connect any other signal cables for I/O devices to the correct ports.

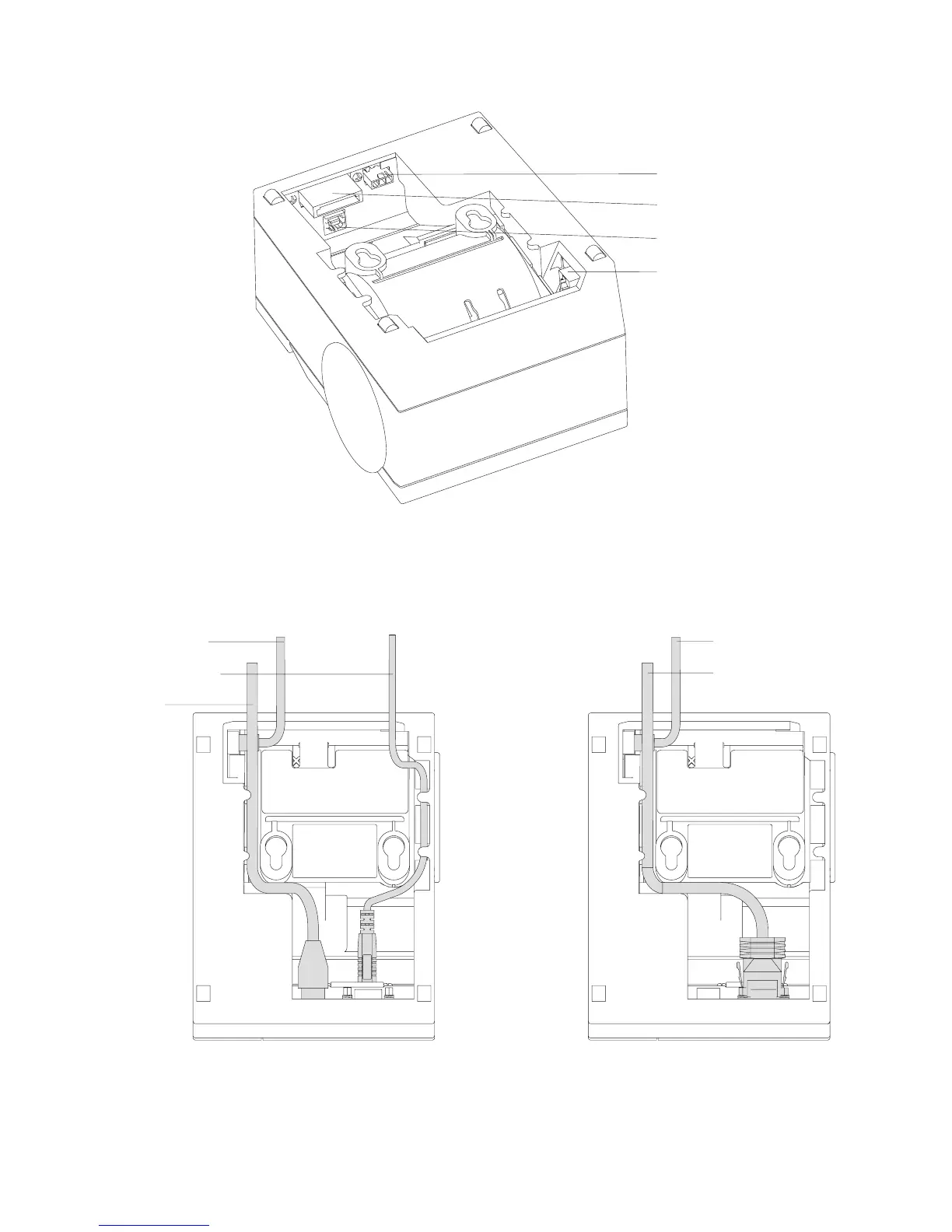

Power supply port

Powered USB port

Standard USB port

Cash drawer connector

Figure 10. USB ports for single-station SureMark printers. (View is from the bottom rear of

the printer)

Cash drawer cable

Power cord

Standard USB cable

Cash drawer cable

Powered USB cable

Figure 11. USB cable routing for single-station SureMark printers

Updated April 2, 2009

22 SureMark Printers User’s Guide
