IBM System x3500 Service Guide

Internal LEDs, connectors, and jumpers
The illustrations in this section show the LEDs, connectors, and jumpers on the
internal boards. The illustrations might differ slightly from your hardware.

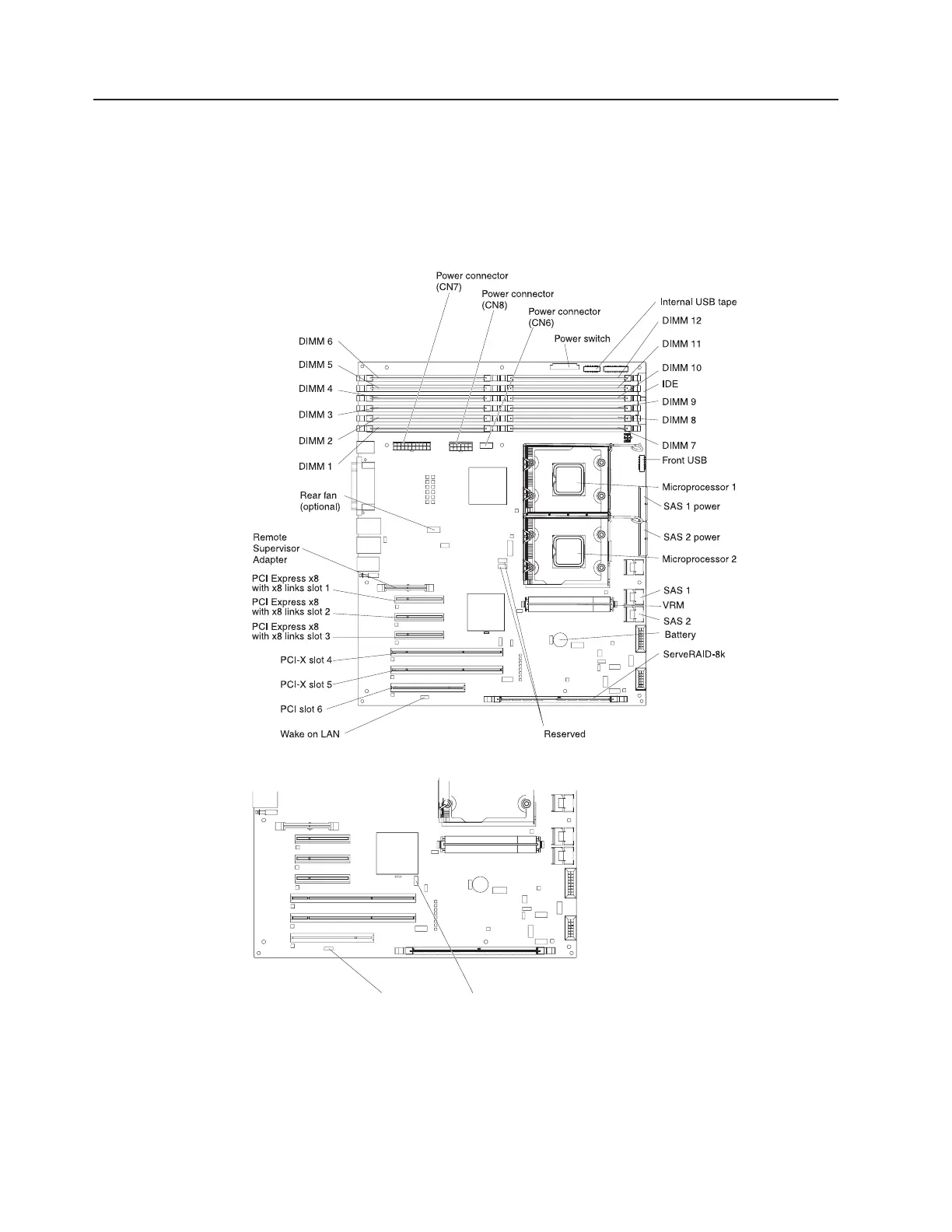

System-board internal connectors and switches
The following illustrations show the internal connectors and switches on the system
board.
See Table 2 on page 9 for information about the switch settings.
Wake on LAN
(CN 45)
SW4 (Boot block/Clear CMOS)
8 IBM System x3500 Type 7977: Problem Determination and Service Guide

IBM System x3500 Specifications

General

Chipset	Intel 5000P
Maximum Memory	48 GB
Memory Slots	12
Network Interface	Dual Gigabit Ethernet
Processor	Intel Xeon 5400/5300/5200 series
Form Factor	5U Tower
Memory Type	DDR2 FB-DIMM
Storage	Up to 6 x 3.5" SAS/SATA HDDs
RAID Support	RAID 0, 1
Expansion Slots	6 x PCI-E slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESX Server
