Number Part Number Quantity Description Part

3 45E3799 1 Bracket, 1U library right rail

4 45E3749 2 Screw, cross-recessed binding head, M4x4 (for securing the rear of the cover to the

library)

5 45E3801 1 Bracket, 1U library left rail

6 45E3802 12 Screw, cross-recessed flat head, M3x6 (6 for securing left and right rails to library; 6 for

securing sides of cover to library)

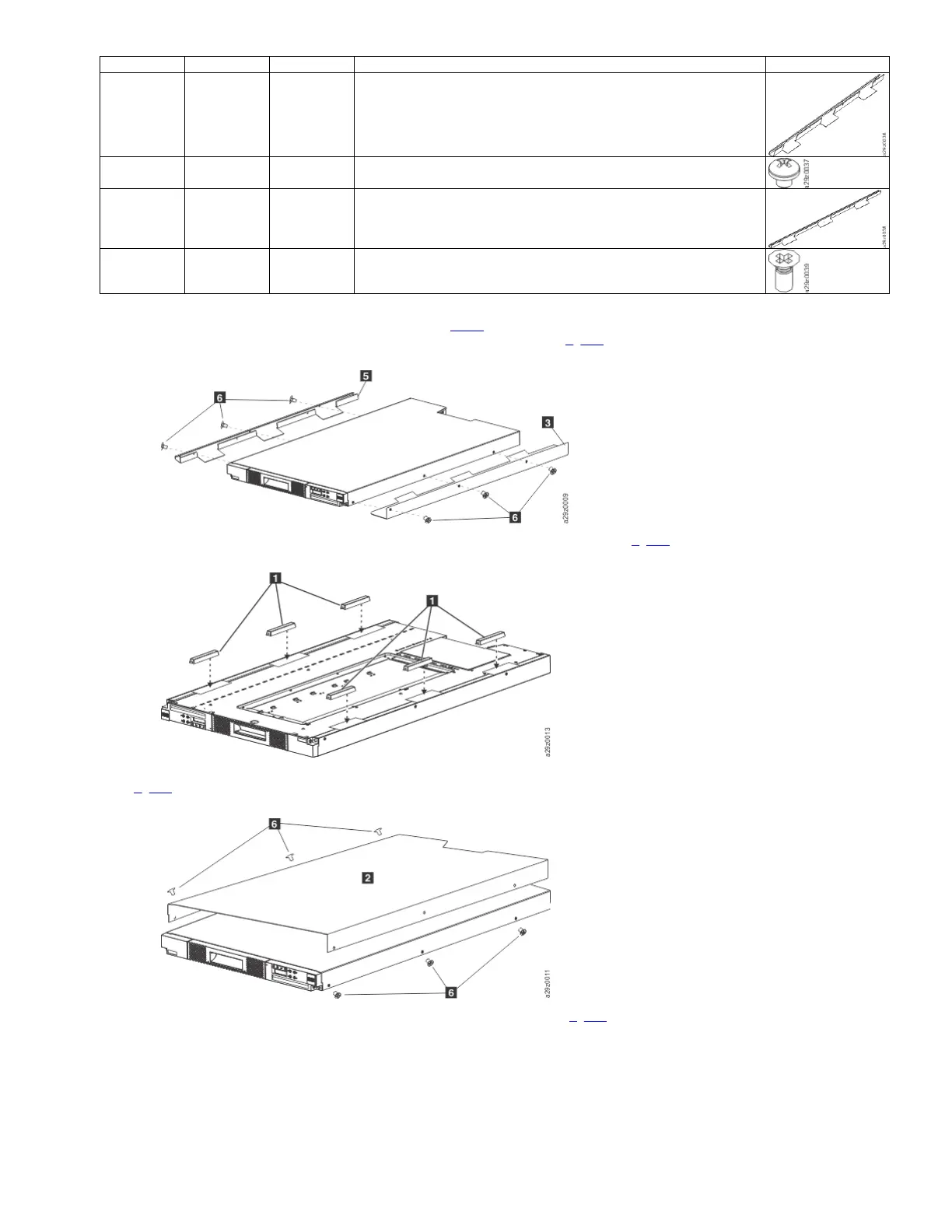

To install the deskside cover on your library, follow the steps:

1. Verify that your deskside kit includes all the necessary contents. See Table 1.

2. Attach the left 5 and right 3 rails to the chassis with three flat-head screws 6 on each side (Figure 1).

Figure 1. Attaching side rails to the library chassis

3. Turn the library over and attach the desktop feet 1 to the designated locations on the bottom of the library (Figure 2). Return the library to the upright position.

Figure 2. Attaching the desktop feet

4. Position the deskside cover 2 in the correct orientation over the library chassis and attach the cover to the library with three flat-head screws 6 on each side

(Figure 3).

Figure 3. Attaching the cover to the library chassis (side screws)

5. Attach the deskside cover with the two large binding-head screws 4 on the rear of the library (Figure 4).

Figure 4. Attaching the cover to the library chassis (rear screws)

TS2900 Tape Autoloader 19
