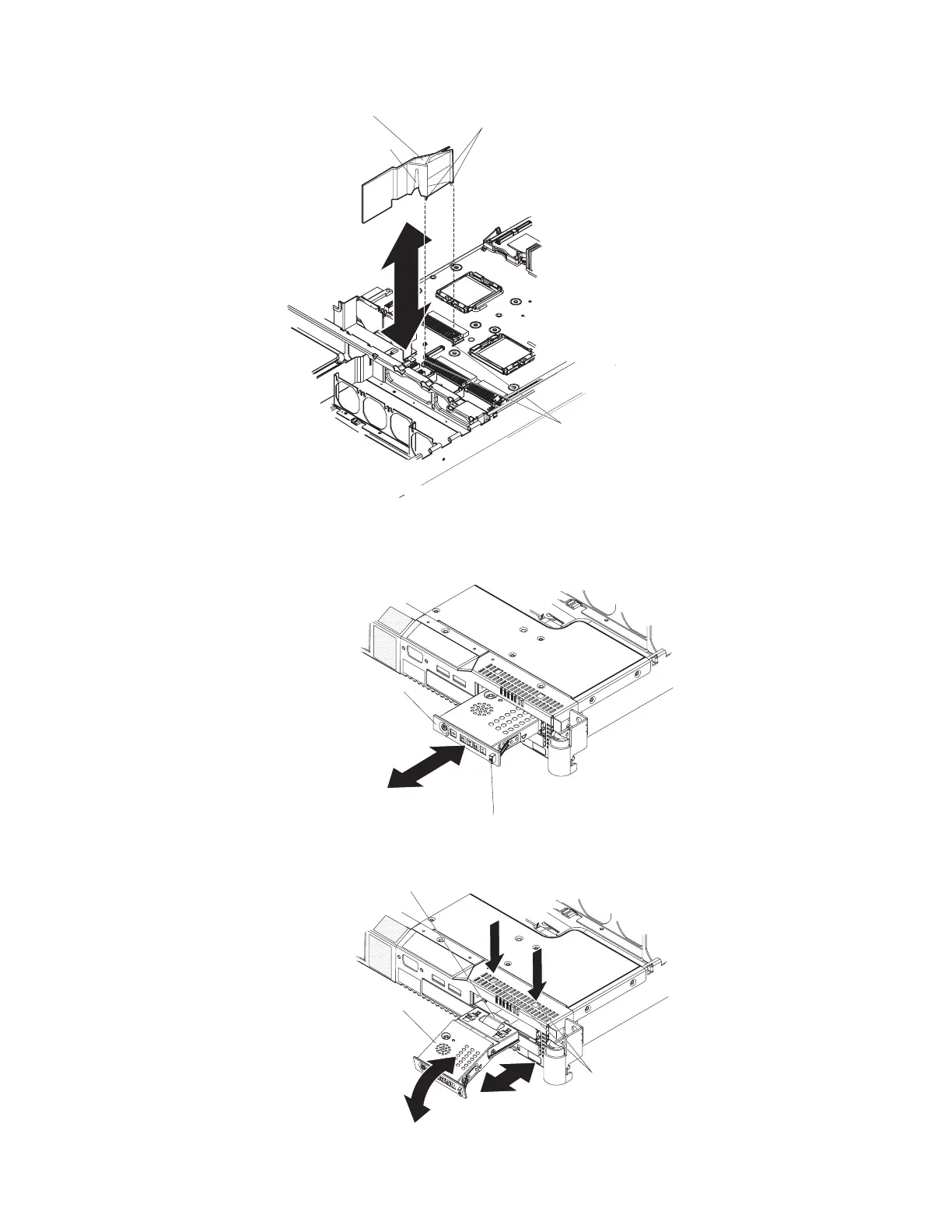

Baffle pins
Air baffle
Cable routing slot
Baffle mounting
holes
8. Remove the air baffle.
9. Disconnect the video cable 1, USB cable 2, CD-RW cable 3, and the
lightpath cable 4 from the system board.
Release button
Operator information
panel
10. Press the release button on the front of the operator information panel and
slide the assembly out of the server.
Release buttons
Operator information
panel
Ribbon cable
92 IBM System x3550 Type 7978 and 1913: Problem Determination and Service Guide
