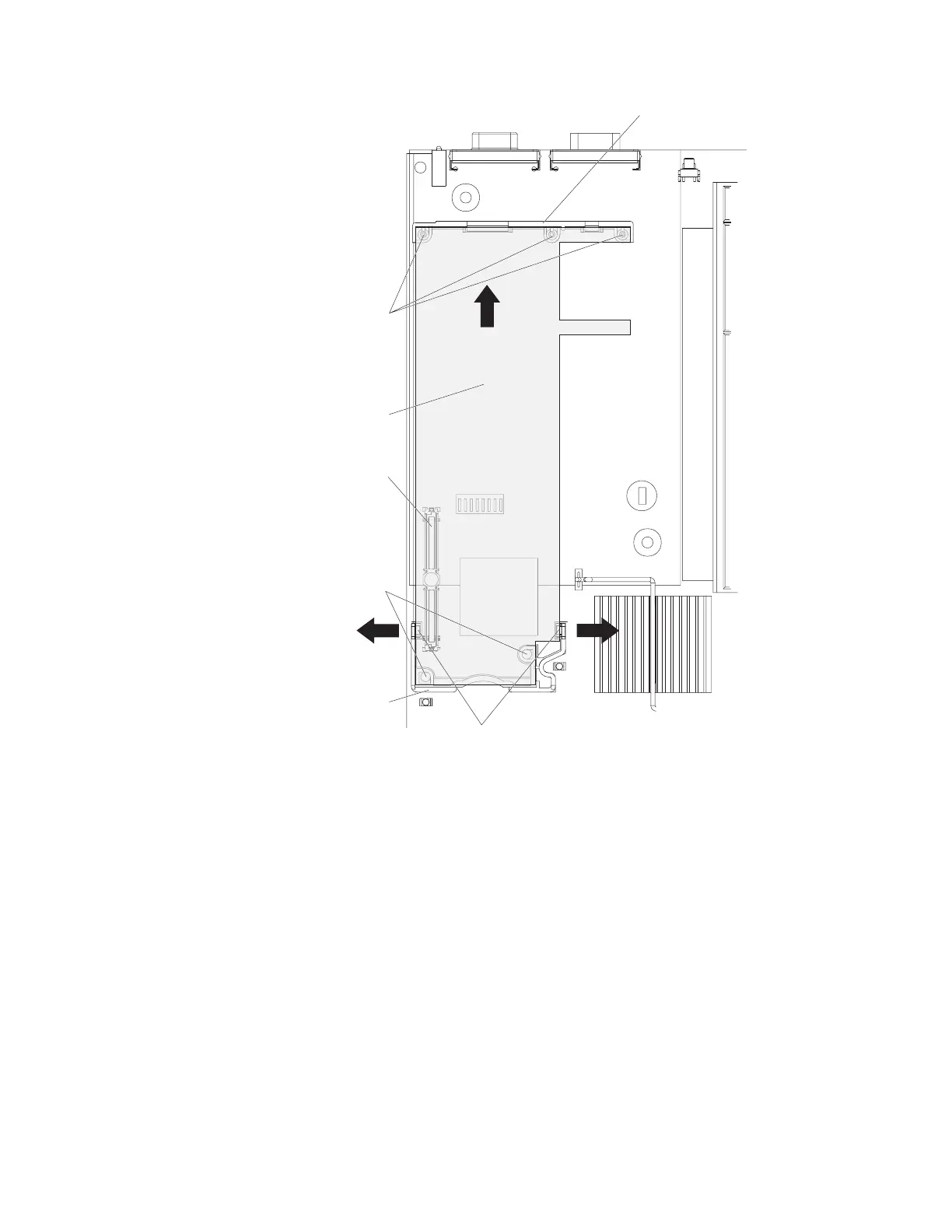

Pins
Pins
Mounting bracket
retention latches
Mounting bracket
Mounting bracket
Connector
Remote Supervisor
Adapter II SlimLine
4. Spread the card retainers as you lift the Remote Supervisor Adapter II SlimLine
card to disconnect it from the system board, then lift it out of the server.
Installing the Remote Supervisor Adapter II SlimLine
To install the Remote Supervisor Adapter II SlimLine assembly, complete the
following steps. Refer to the graphics in “Removing the Remote Supervisor Adapter
II SlimLine” on page 57:
1. Position the Remote Supervisor Adapter II SlimLine card so that the keys on the
connector align correctly with the connector on the system board.
2. Insert the card into the rear retainer bracket; then, press the card into the
connector and make sure that all support posts and retainers secure the card in
place.
3. Replace the PCI riser-card assembly and adapter (if present).
4. If you are instructed to return the Remote Supervisor Adapter II SlimLine, follow
all packaging instructions, and use any packaging materials for shipping that are
supplied to you.
5. Install the cover (see “Installing the cover” on page 42).
6. Slide the server into the rack.
58 IBM System x3550 Type 7978 and 1913: Problem Determination and Service Guide

IBM x3550 Specifications

General

Processor Type	Intel Xeon
Chipset	Intel 5000P
Number of Processors Supported	2
Network Interface	Dual Gigabit Ethernet
Hard Drive Interface	SAS/SATA
Maximum Internal Storage	2.4 TB
Storage	Up to six 2.5-inch SAS or SATA hot-swap hard disk drives
Drive Bays	6
RAID Support	RAID 0, 1
Power Supply	670W or 835W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESX
Memory	PC2-5300 Fully Buffered DIMMs (DDR2-667) or PC2-4200 Fully Buffered DIMMs (DDR2-533)
