11. Press the release buttons on the top of the server and slide the operator
information panel assembly rails out of the server as far as it will go.
12. Pull the panel away from the rails and carefully pull the attached lightpath
ribbon cable out of the server.
13. If you are instructed to return the operator information panel assembly, follow
all packaging instructions, and use any packaging materials for shipping that
are supplied to you.

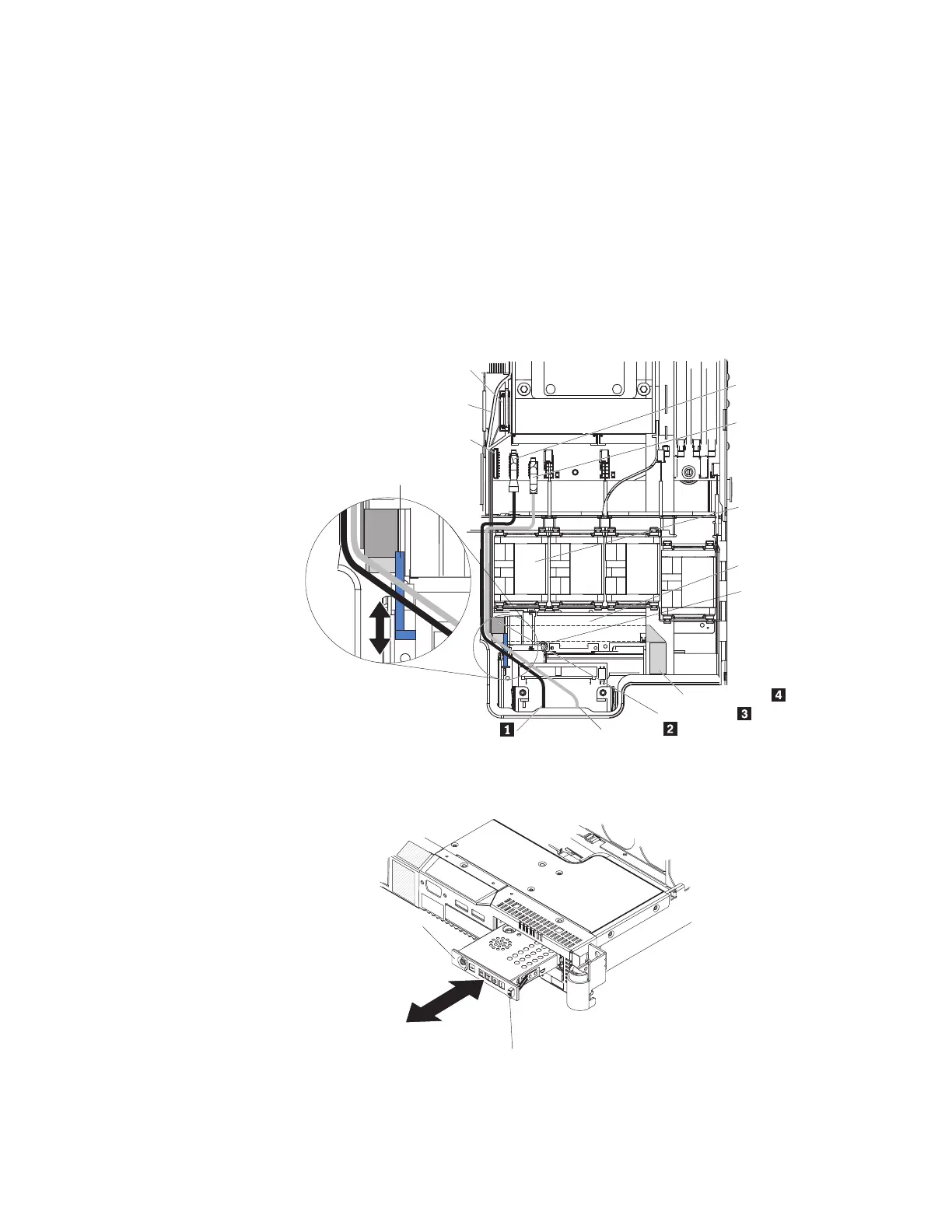

Installing the operator information panel assembly
To install the operator information panel, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 39.
CD-RW cable connector
CD-RW cable retainer
Lightpath cable connector
Video cable
connector
USB cable
connector
Fan 3
Interposer
card
USB cable
CD-RW cable
Lightpath cable
Video cable
Air baffle
2. From the front of the server, thread the lightpath ribbon cable through the
panel housing in the server; then, carefully route and connect the ribbon cable
to the lightpath cable connector on the system board.
Release button
Operator information
panel
3. Slide the operator information panel into the server until it latches in place with
a click.
4. Reconnect the CD-RW cable 3, the USB cable 2, and the video cable 1
to the system board.
Chapter 4. Removing and replacing server components 93
