Installing a riser card assembly
To replace a riser card assembly, complete the following steps.

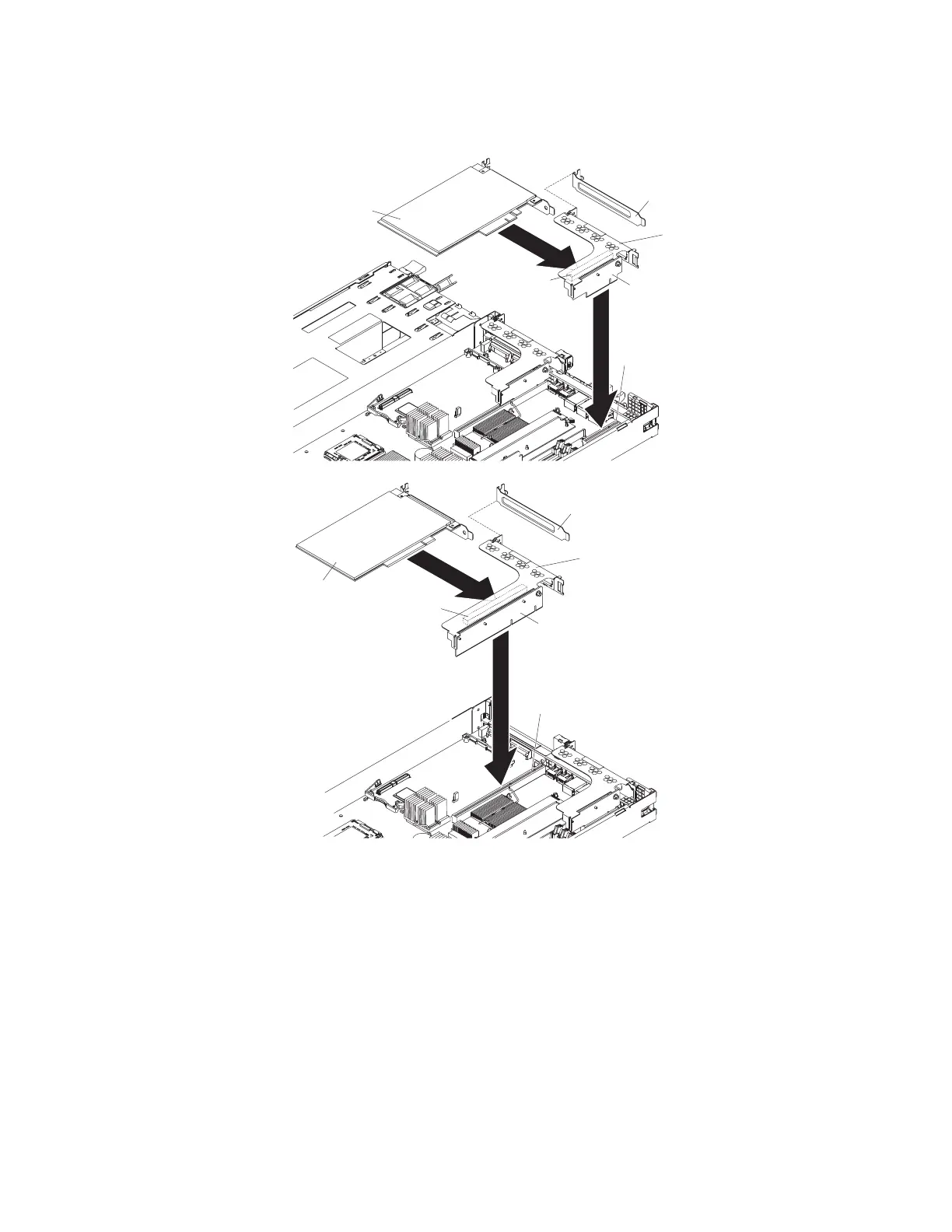

Riser-card
assembly
Expansion
slot 1
Riser card
connector
PCI Express Adapter
Expansion
slot cover
Adapter
support
bracket
Riser-card
assembly
Adapter
support
bracket
Expansion slot 2
Expansion
slot cover
Riser-card
connector
PCI adapter
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 39.
2. Reinstall the adapter, if one is present. See “Installing an adapter” on page 47.
3. Insert the riser card assembly into the connector on the system board. Be sure
that it is fully seated.
4. Install the cover (see “Installing the cover” on page 42).
5. Slide the server into the rack.
6. Reconnect the power cords and any cables that were removed.
7. Turn on the peripheral devices and the server.
76 IBM System x3550 Type 7978 and 1913: Problem Determination and Service Guide
