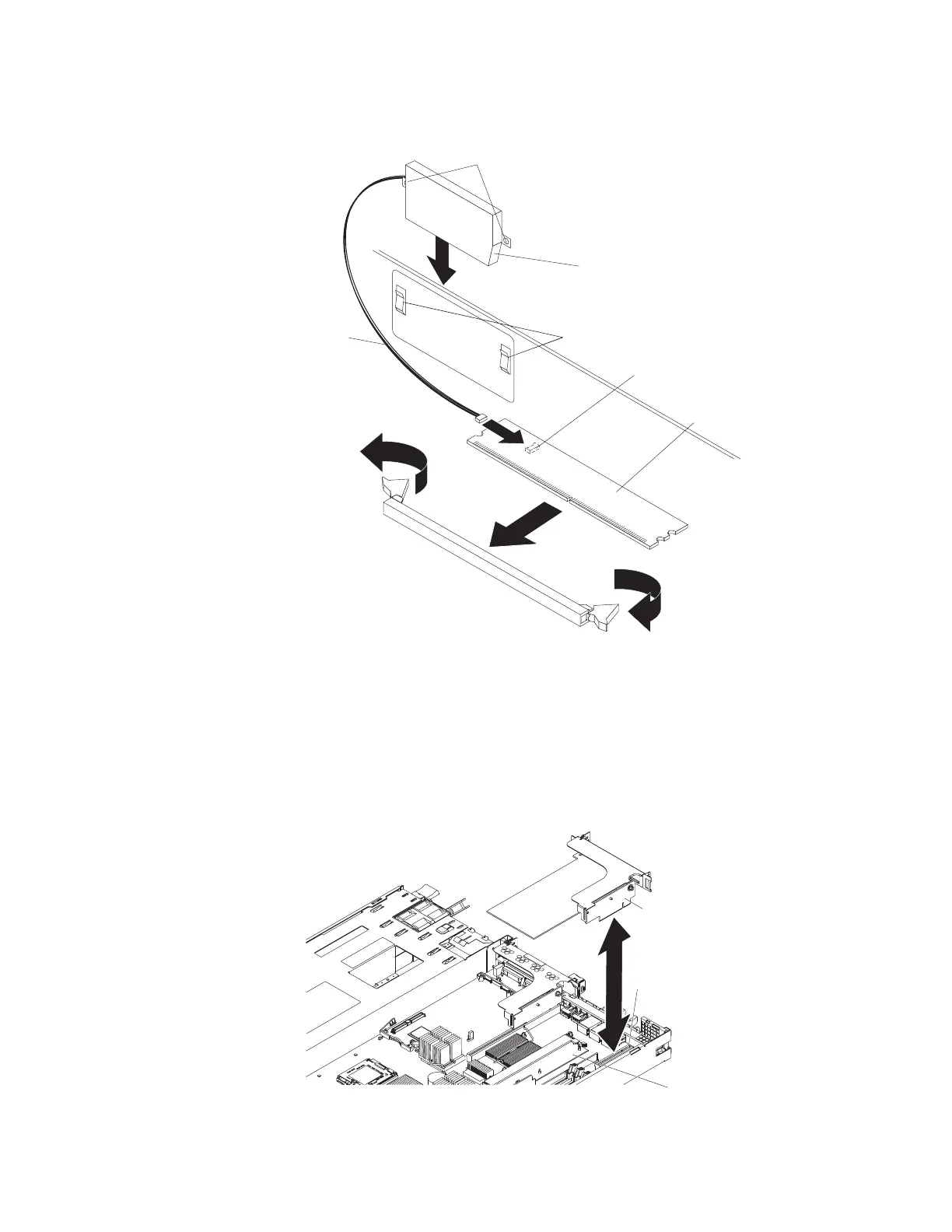

Installing the RAID controller
To install the RAID controller on the system board, complete the following steps.
Battery
RAID controller
Battery mounting
clips
Battery mounting tabs
Battery cable
Battery cable
connector
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 39.
2. Grasp the edges of the RAID controller board.
3. Open the retaining clip on each end of the controller socket.
4. Slide the RAID controller board into the controller socket.
5. Close the retaining clip on each end of the controller socket.
6. Connect the cable from the RAID-controller battery to the RAID controller
board (some models only).
Riser-card
assembly
Riser card
connector
RAID controller
board
7. If an adapter was present in slot 1, reinstall it now (see “Installing an adapter”
on page 47).
Chapter 4. Removing and replacing server components 61
