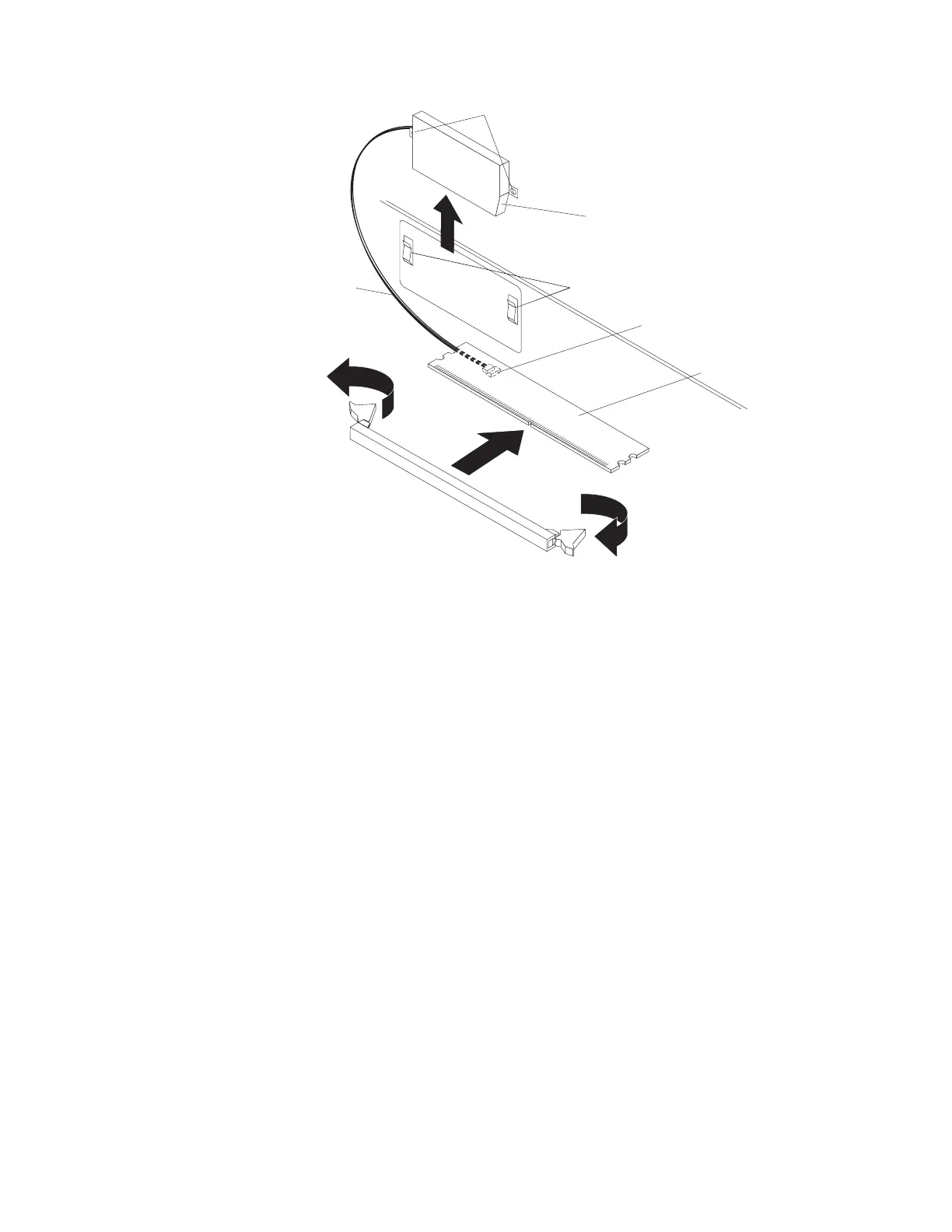

Battery
RAID controller
Battery mounting
clips
Battery mounting tabs
Battery cable
Battery cable
connector
4. Do not disconnect the cable from the RAID controller battery (some models
only) to the RAID controller board.
5. Open the retaining clip on each end of the RAID controller board connector.
6. Slide the RAID controller board out of the connector.
60 IBM System x3550 Type 7978 and 1913: Problem Determination and Service Guide
