CONNECTIONS AND MAINTENANCE
■ Power source connections
D Connecting to the DC power source through the PS-310
CAUTION:
Before connecting the DC power cable, conrm the
transceiver is OFF, and the DC power cable polarity is
correct.
• Red: positive + terminal
• Black: negative − terminal
BE SURE to connect only the DC power cable from the
PS-310, and DO NOT extend the cable length.
To operate the GM600, you must connect it to a 12 or 24
volt DC power source through the PS-310
dc-dc power
supply, sold as a set with the GM600.
The PS-310 converts the input voltage from the 12 or 24 volt
DC power source, then provides stable 12.6 V DC, 5.5 A of
continuous power to the transceiver.
Select the appropriate version for your vessel power system.
• PS-310
Version Input voltage Output voltage
#11 21.6 to 31.2 V DC 12.6 V DC
#12 10.8 to 15.6 V DC 12.6 V DC

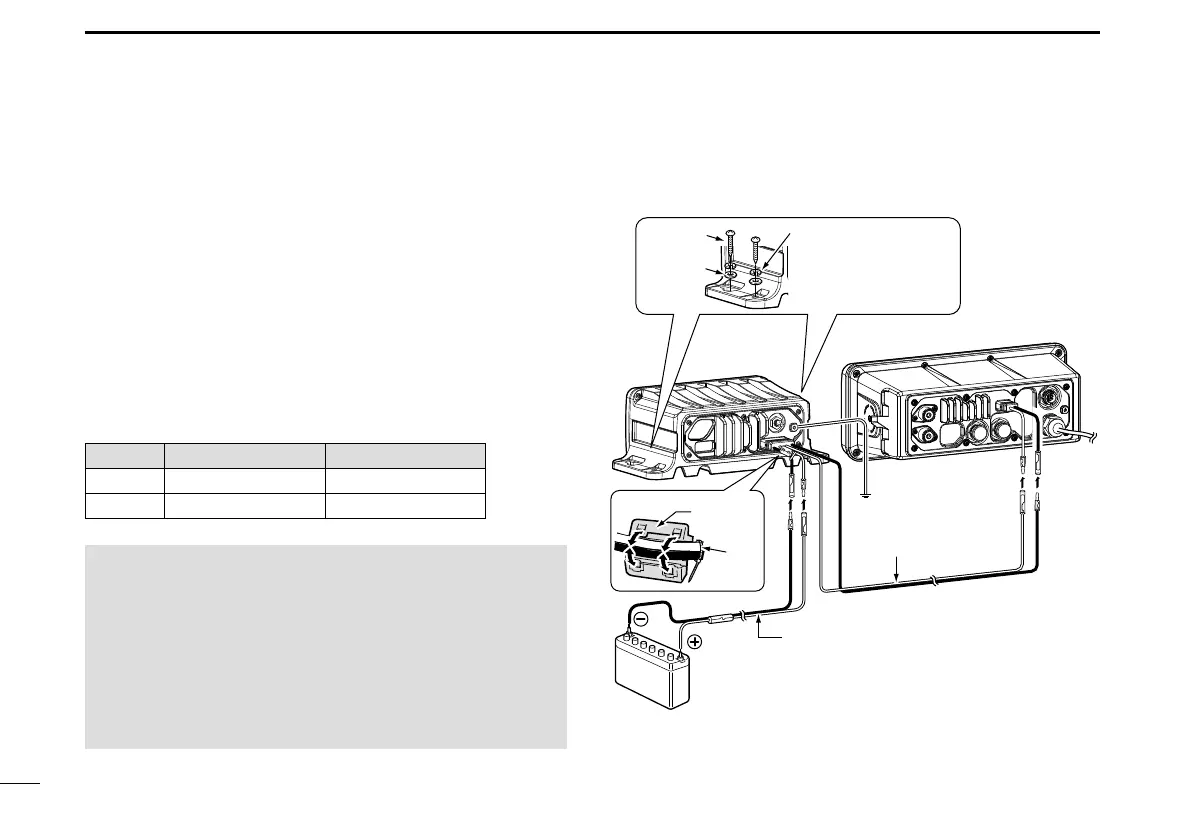

PS-310
GM600
Battery
(12 V or 24 V, depending on the PS-310 version.)
DC power cable
( Supplied with the PS-310)
DC power cable
GND (to the vesselʼs
ground system)
Screw
Mount the PS-310
securely with the 4
supplied screws.
Spring washer
Flat
washer
Ferrite
EMI lter
Tie
wrap
