7
2
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D Information area
The 9 digit MMSI (Maritime Mobile Service Identity: DSC
self ID) code and the following indicators are displayed in
the Information area.

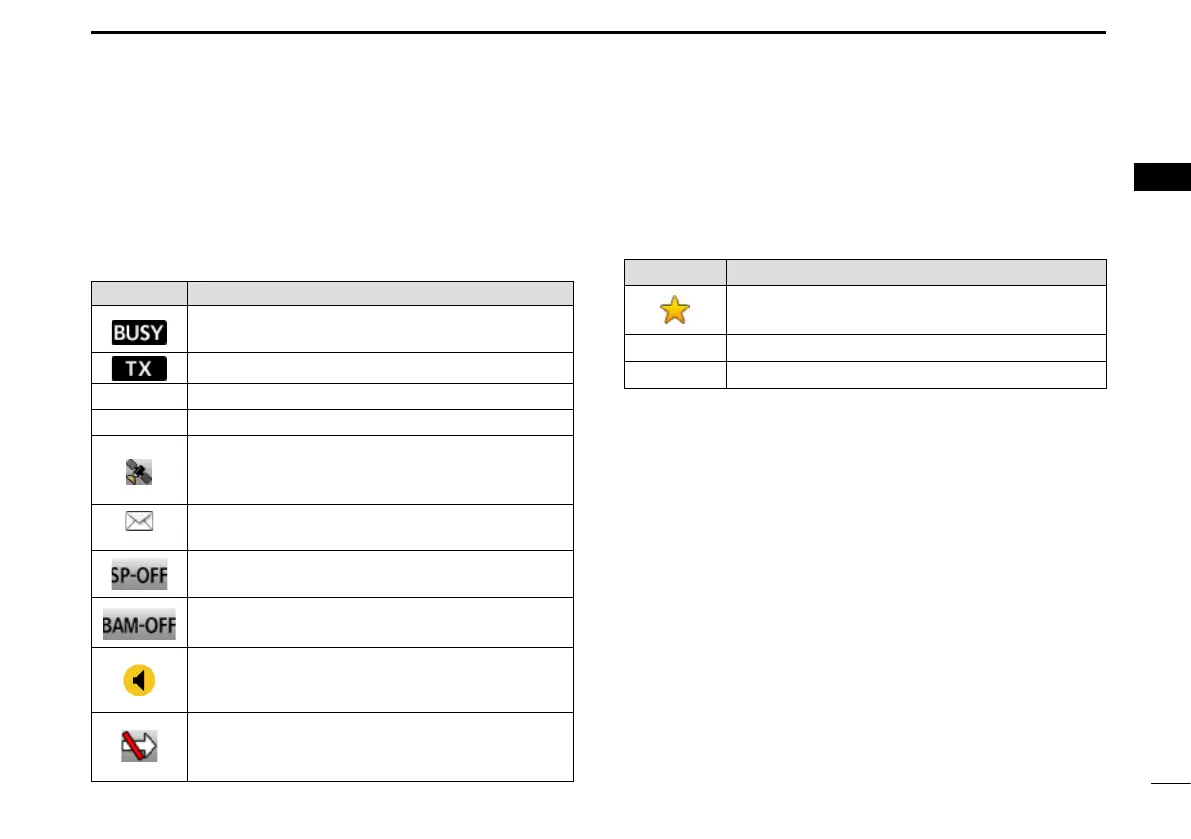

Indicator Description
Displayed while receiving a signal or when the
squelch is open.
Displayed while transmitting.
25W
Displayed when high power is selected.
1W
Displayed when low power is selected.
Displayed when the transceiver receives a valid
GPS data from the GPS receiver.
Blinks while invalid GPS data is being received.
Displayed when there is an unread DSC message.
Blinks when a DSC message is received.
Displayed when the “Internal Speaker” item is
OFF. (p. 89)
Displayed when the BAM function is OFF.
(p. 22)
Displayed when the BAM alert is received.
• The icon varies, depending on the alert’s priority
and status. (p. 23)
Displayed when the “CH Auto Switch” in DSC
settings is set to an option except “Accept after
10 sec..”
D Channel area
The selected operating channel number, channel name, and
the following indicators are displayed in the Channel area.
Indicator Description
Displayed when a Favorite (Tag) channel is
selected.
CALL Displayed when the Call channel is selected.
DUP Displayed when a Duplex channel is selected.
To Next Page
