PANEL DESCRIPTION
New2001
1
PANEL DESCRIPTION

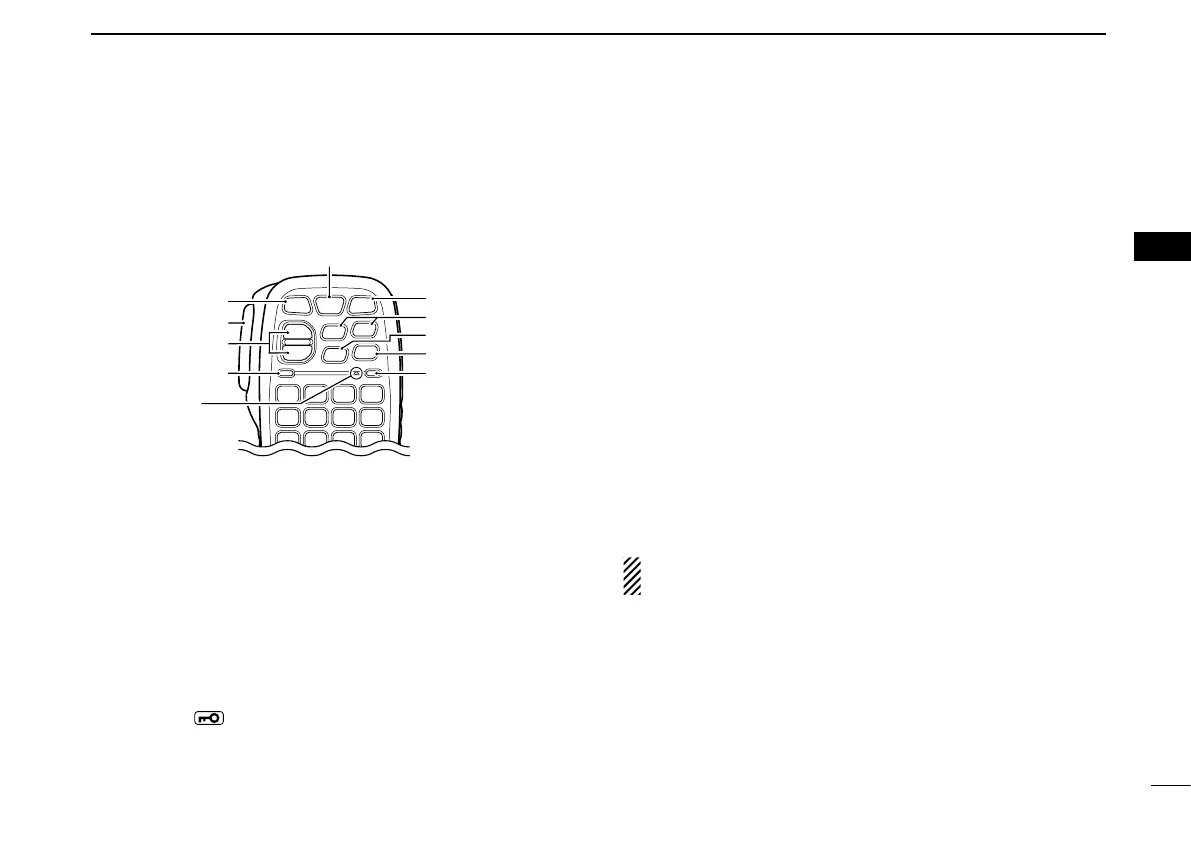

With the HM-207, you can input numbers for frequency or
Memory channel settings, and adjust the audio volume and
squelch level.
q
w
e
!0
t
y
i
u
o
r
Mic element
q LED 1
Lights red while transmitting by pushing [PTT].
w [∫]/[√] (UP/DOWN) KEYS
Push to change the operating frequency or Memory ➥
channel.
Hold down to continuously change the frequency or ➥
Memory channel.
e [PTT] SWITCH
Hold down to transmit, release to receive.
r [VFO/MR
] KEY
Push to toggle between the VFO and Memory modes. ➥
Hold down for 1 second to turn the Lock function ON ➥
or OFF. (p. 25)
t [HOME CALL] KEY
Push to select the Home channel. ➥
Hold down for 1 second to turn the Call channel mode ➥
ON or OFF.
y [MAIN DUAL] KEY
Push to set the MAIN band to either the right band or the
left band.
u [F-1] KEY
Push to activate the preset function of the [F-1] key.
(Default: During RX/Standby: [BND.BNK]
During TX: [T-CALL])
[F-2] KEY
Push to activate the preset function of the [F-2] key.
(Default: During RX/Standby: [MONI],
During TX: [---])
You can assign a desired function in the MENU mode.
(p. 14) See page 8 for details of the key functions.
i [CLR] KEY
In the MENU mode, push to exit the MENU mode.
o [ENT] KEY
After entering a VFO frequency or Memory channel num-
ber, push to set.
!0 LED 2
Lights green when transceiver’s power is ON.
■ About the HM-207 microphone

Icom ic-2730A Specifications

General

Frequency Range	144-148 MHz, 430-450 MHz
Mode	FM
Power Output	50W, 15W, 5W
Antenna Connector	SO-239
Power Supply Requirement	13.8V DC ±15%
Voltage	13.8V DC
Operating Temperature	-10°C to +60°C
Number of Channels	1000
Current Consumption	13A (at 50W output)
