5-3

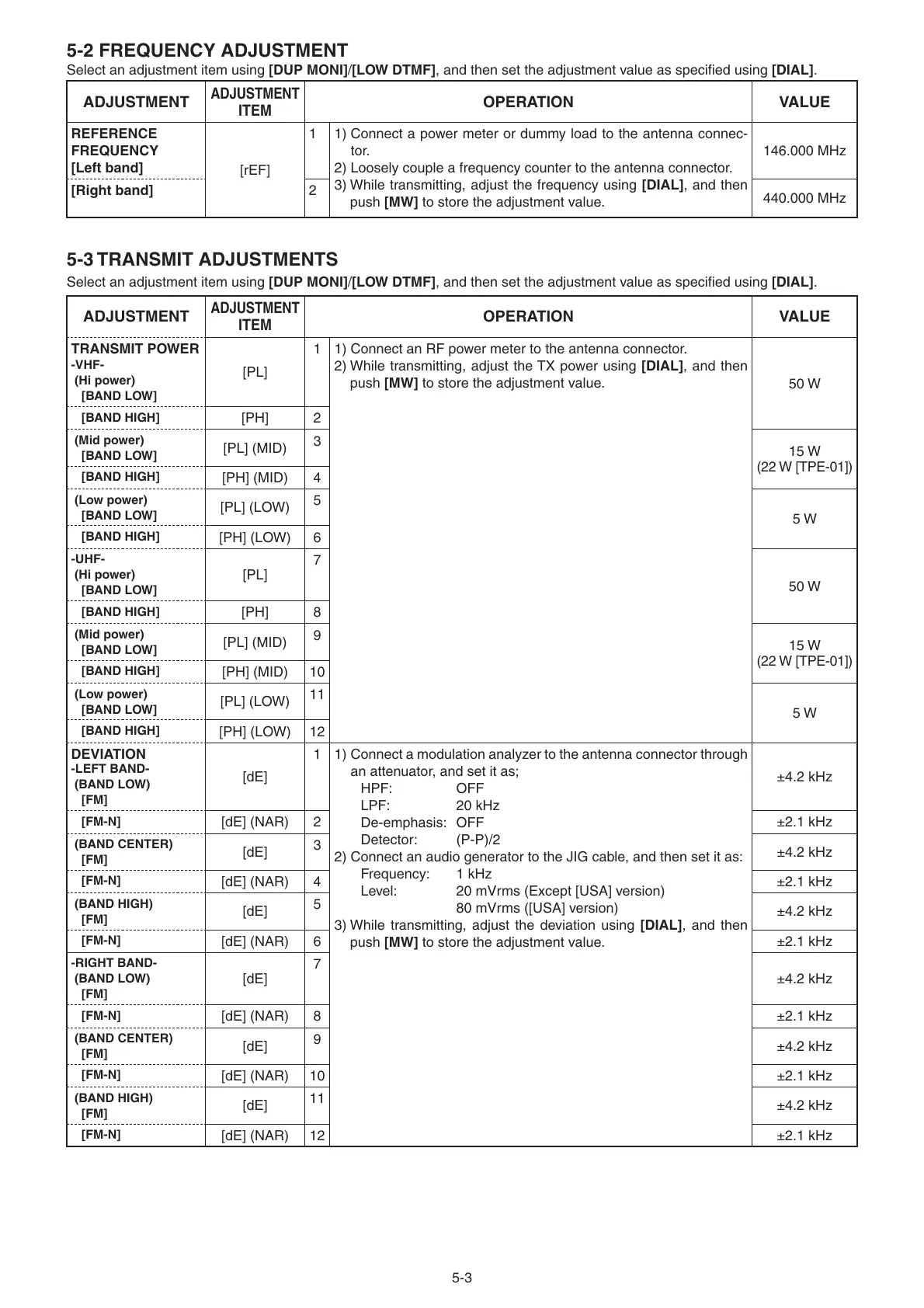

5-2 FREQUENCY ADJUSTMENT
Select an adjustment item using [DUP MONI]/[LOW DTMF], and then set the adjustment value as specifi ed using [DIAL].
ADJUSTMENT
ADJUSTMENT
ITEM
OPERATION VALUE
REFERENCE
FREQUENCY
[Left band]
[rEF]
1 1) Connect a power meter or dummy load to the antenna connec-
tor.
2) Loosely couple a frequency counter to the antenna connector.
3) While transmitting, adjust the frequency using [DIAL], and then
push [MW] to store the adjustment value.
146.000 MHz
[Right band] 2
440.000 MHz
5-3 TRANSMIT ADJUSTMENTS
Select an adjustment item using [DUP MONI]/[LOW DTMF], and then set the adjustment value as specifi ed using [DIAL].
ADJUSTMENT
ADJUSTMENT
ITEM
OPERATION VALUE
TRANSMIT POWER
-VHF-
(Hi power)
[BAND LOW]
[PL]
1 1) Connect an RF power meter to the antenna connector.
2) While transmitting, adjust the TX power using [DIAL], and then
push [MW] to store the adjustment value.
50 W
[BAND HIGH]
[PH] 2
(Mid power)
[BAND LOW]
[PL] (MID)
3
15 W
(22 W [TPE-01])
[BAND HIGH]
[PH] (MID) 4
(Low power)
[BAND LOW]
[PL] (LOW)
5
5 W
[BAND HIGH]
[PH] (LOW) 6
-UHF-
(Hi power)
[BAND LOW]
[PL]
7
50 W
[BAND HIGH]
[PH] 8
(Mid power)
[BAND LOW]
[PL] (MID)
9
15 W
(22 W [TPE-01])
[BAND HIGH]
[PH] (MID) 10
(Low power)
[BAND LOW]
[PL] (LOW)
11
5 W
[BAND HIGH]
[PH] (LOW) 12
DEVIATION
-LEFT BAND-
(BAND LOW)
[FM]
[dE]
1 1) Connect a modulation analyzer to the antenna connector through
an attenuator, and set it as;
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P-P)/2
2) Connect an audio generator to the JIG cable, and then set it as:
Frequency: 1 kHz
Level: 20 mVrms (Except [USA] version)
80 mVrms ([USA] version)
3) While transmitting, adjust the deviation using [DIAL], and then
push [MW] to store the adjustment value.
±4.2 kHz
[FM-N]
[dE] (NAR) 2 ±2.1 kHz
(BAND CENTER)
[FM]
[dE]
3
±4.2 kHz
[FM-N]
[dE] (NAR) 4 ±2.1 kHz
(BAND HIGH)
[FM]
[dE]
5
±4.2 kHz
[FM-N]
[dE] (NAR) 6 ±2.1 kHz
-RIGHT BAND-
(BAND LOW)
[FM]
[dE]
7
±4.2 kHz
[FM-N]
[dE] (NAR) 8 ±2.1 kHz
(BAND CENTER)
[FM]
[dE]
9
±4.2 kHz
[FM-N]
[dE] (NAR) 10 ±2.1 kHz
(BAND HIGH)
[FM]
[dE]
11
±4.2 kHz
[FM-N]
[dE] (NAR) 12 ±2.1 kHz
To Next Page
