Icom ic-2730A - Page 25

5-7
ADJUSTMENT
ADJUSTMENT
ITEM
OPERATION VALUE
-435.020/450.020 MHz-
(FM-N mode)
[Left band]
[S39] (NAR)
38 • Set the SSG as:
Frequency:
(Set the same frequency displayed on the controller.)
Level
†
: 0 dBµ (–107 dBm)
Push [MW].
(Automatic
adjustment)
[Right band]
[S39] (NAR) 39
-500.020 MHz-
(FM-N mode)
[Left band]
[S40] (NAR)
40 • Set the SSG as:
Frequency:
(Set the same frequency displayed on the controller.)
Level
†
: 0 dBµ (–107 dBm)
Push [MW].
(Automatic
adjustment)
[Right band]
[S40] (NAR) 41
SQUELCH NOTE:
“RECEIVE SENSITIVITY” must be adjusted before “SQUELCH” and “S-METER.” Otherwise,
“SQUELCH” will not be adjusted properly.
-127.020 MHz-
(AM mode)
[Left band]
[Sq1]
1
• Connect a 50  dummy load to the antenna connector.
Push [MW].
(Automatic
adjustment)
[Right band]
[Sq1] 2
(AM-N mode)
[Left band]
[Sq1] (NAR)
3
[Right band]
[Sq1] (NAR) 4
-145.020/146.020 MHz-
(FM mode)
[Left band]
[Sq2]
5
[Right band]
[Sq2] 6
(FM-N mode)
[Left band]
[Sq2] (NAR)
7
[Right band]
[Sq2] (NAR) 8
-387.020 MHz-
(FM mode)
[Left band]
[Sq3]
9
[Right band]
[Sq3] 10
(FM-N mode)
[Left band]
[Sq3] (NAR)
11
[Right band]
[Sq3] (NAR) 12
-440.020 MHz-
(FM mode)
[Left band]
[Sq4]
13
[Right band]
[Sq4] 14
(FM-N mode)
[Left band]
[Sq4] (NAR)
15
[Right band]
[Sq4] (NAR) 16
-500.020 MHz-
(FM mode)
[Left band]
[Sq5]
17
[Right band]
[Sq5] 18
(FM-N mode)
[Left band]
[Sq5] (NAR)
19
[Right band]
[Sq5] (NAR) 20
†
: This output level of a standard signal generator (SSG) is indicated in SSG’s 50 ohms termination.

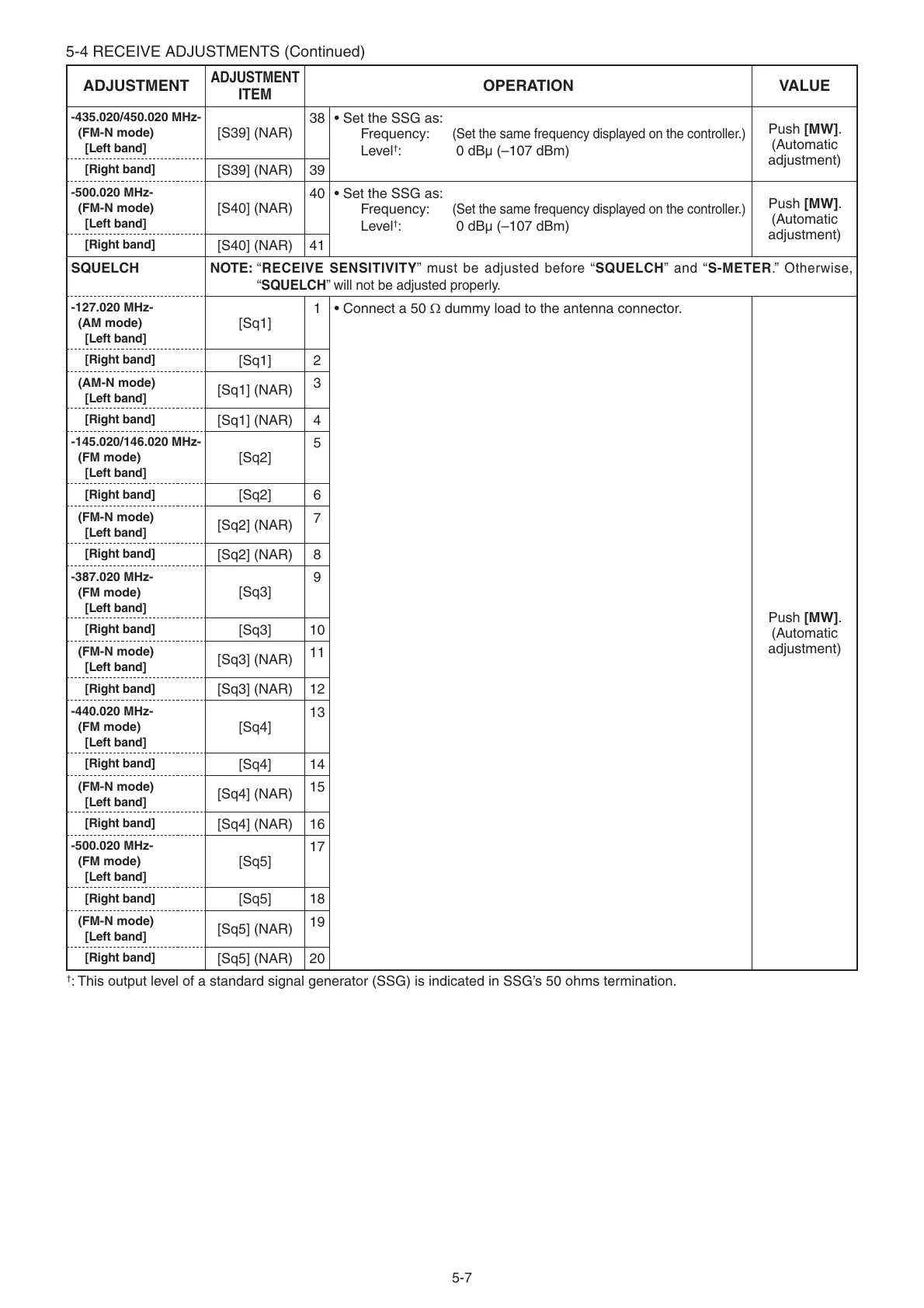

5-4 RECEIVE ADJUSTMENTS (Continued)
