1-2
D

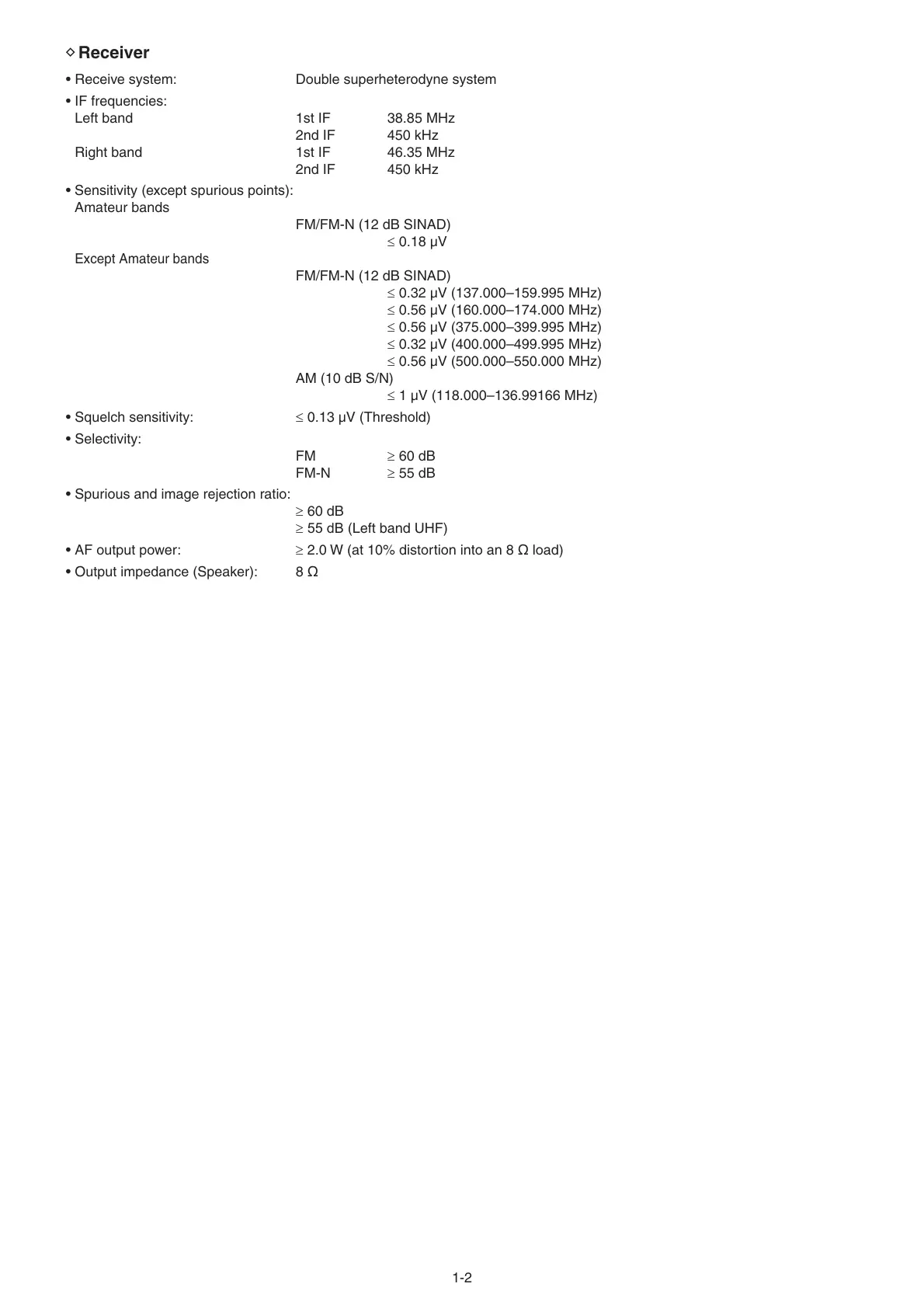

Receiver
• Receive system: Double superheterodyne system
• IF frequencies:
Left band 1st IF 38.85 MHz
2nd IF 450 kHz
Right band 1st IF 46.35 MHz
2nd IF 450 kHz
• Sensitivity (except spurious points):
Amateur bands
FM/FM-N (12 dB SINAD)
 0.18 µV
Except Amateur bands
FM/FM-N (12 dB SINAD)
 0.32 µV (137.000–159.995 MHz)
 0.56 µV (160.000–174.000 MHz)
 0.56 µV (375.000–399.995 MHz)
 0.32 µV (400.000–499.995 MHz)
 0.56 µV (500.000–550.000 MHz)
AM (10 dB S/N)
 1 µV (118.000–136.99166 MHz)
• Squelch sensitivity:  0.13 µV (Threshold)
• Selectivity:
FM  60 dB
FM-N  55 dB
• Spurious and image rejection ratio:
 60 dB
 55 dB (Left band UHF)
• AF output power:  2.0 W (at 10% distortion into an 8 ø load)
• Output impedance (Speaker): 8 ø
