Icom IC-F2100D Series User Manual

5
NXDN™ OPERATION
5-6
Previous view
D Transmitting a Status message
You can transmit a preset simple message� You
cannot transmit a voice signal at the same time�
<For the Simple key and Ten-key types>
1� Push [Digital Button] to enter the Application
selection mode�
• According to the current call type, “INDIV” (Individual
call) or “GROUP” (Group call) is briey displayed, and
then “VOICE” is displayed�
L If you want to change the call type, hold down [Digital
Button] for 1 second in the Standby mode�

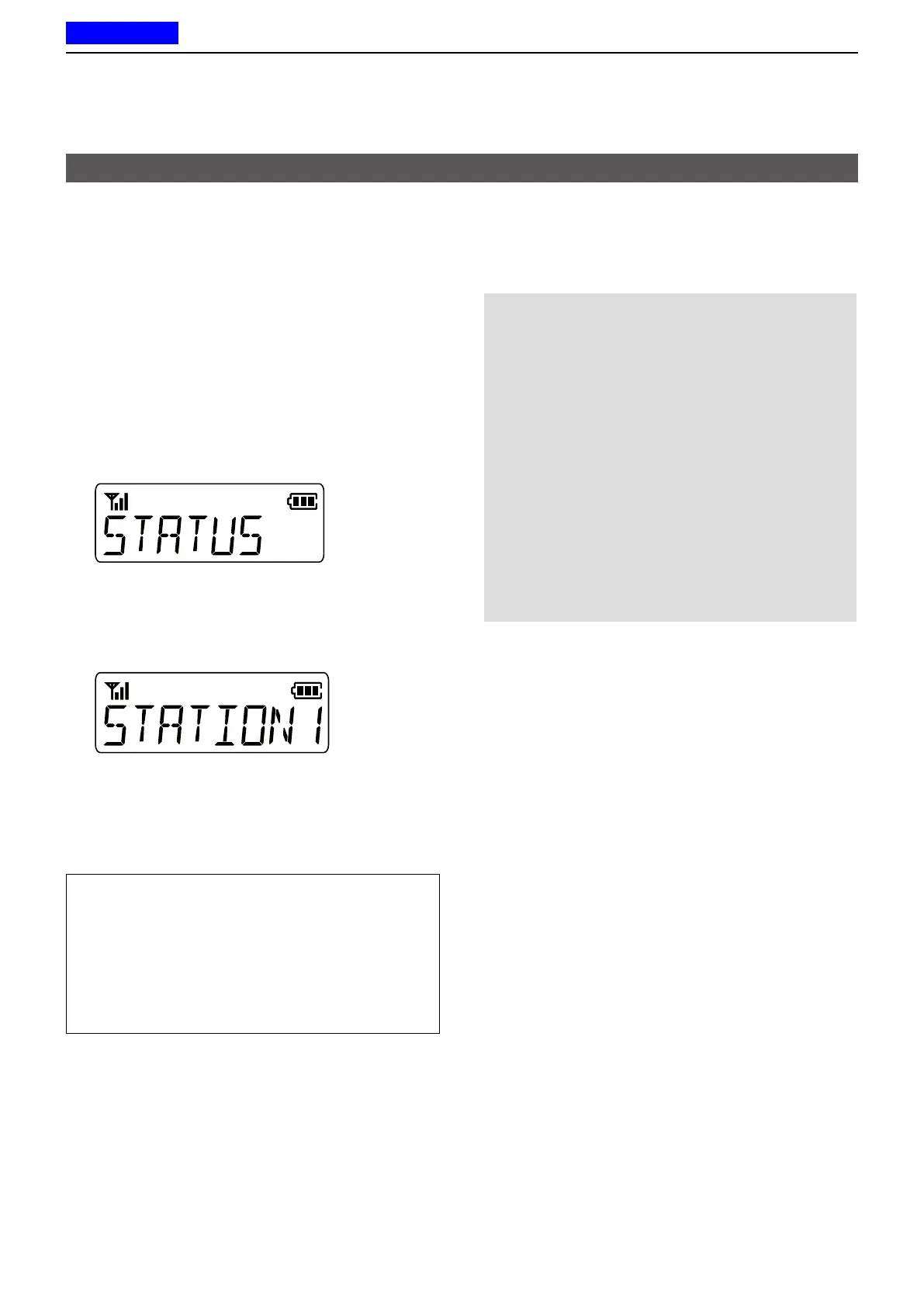

2� Push [CH Up] or [CH Down] to select “STATUS,”
and then push [Digital Button]�
3� Push [CH Up] or [CH Down] to select a status, and
then push [Digital Button]�
4� Push [CH Up] or [CH Down] to select an Individual
station or a Group�
5� Push [PTT] to transmit a Status message�
• “STAT OK” is displayed when an acknowledgment is
received from the targeted station�
• “STA FAIL ” is displayed if an acknowledgment is not
received from the targeted station�
TIP:
• Hold down [Status] for 1 second to transmit the preset
Status message�
• For the Ten-key type, push a numeric key [0] ~ [9] to
directly select the preset Status message to the latest
transmitted station or group�
• Hold down a numeric key [0] ~ [9] to directly send the
preset Status message to the latest transmitted station or
group�
Transmitting a call
NOTE: If the following settings are congured using
the CS-F2100D programming software, the Status
message can be automatically transmitted when:
• The transceiver is turned ON or OFF
L Set the Status message to be transmitted in Power ON
Status or Power OFF Status, respectively�
L Set the target station ID in Power Status ID for
Conventional or Power Status ID for Single-site
Trunk�
( Digital > Status > Status Setting)
• After sending a voice message
L Set Send with Voice Call to “Enable�”
L Set the Status message to be transmitted in Send
Status Number�
( Digital > Status > Status Setting)
<For the Non-display type>
A Status call can be transmitted by pushing [Status]�
1� Rotate [Rotary Selector] to select a Status�
2� Hold down [Status] to transmit a Status call�
