11 Mechanical Layout

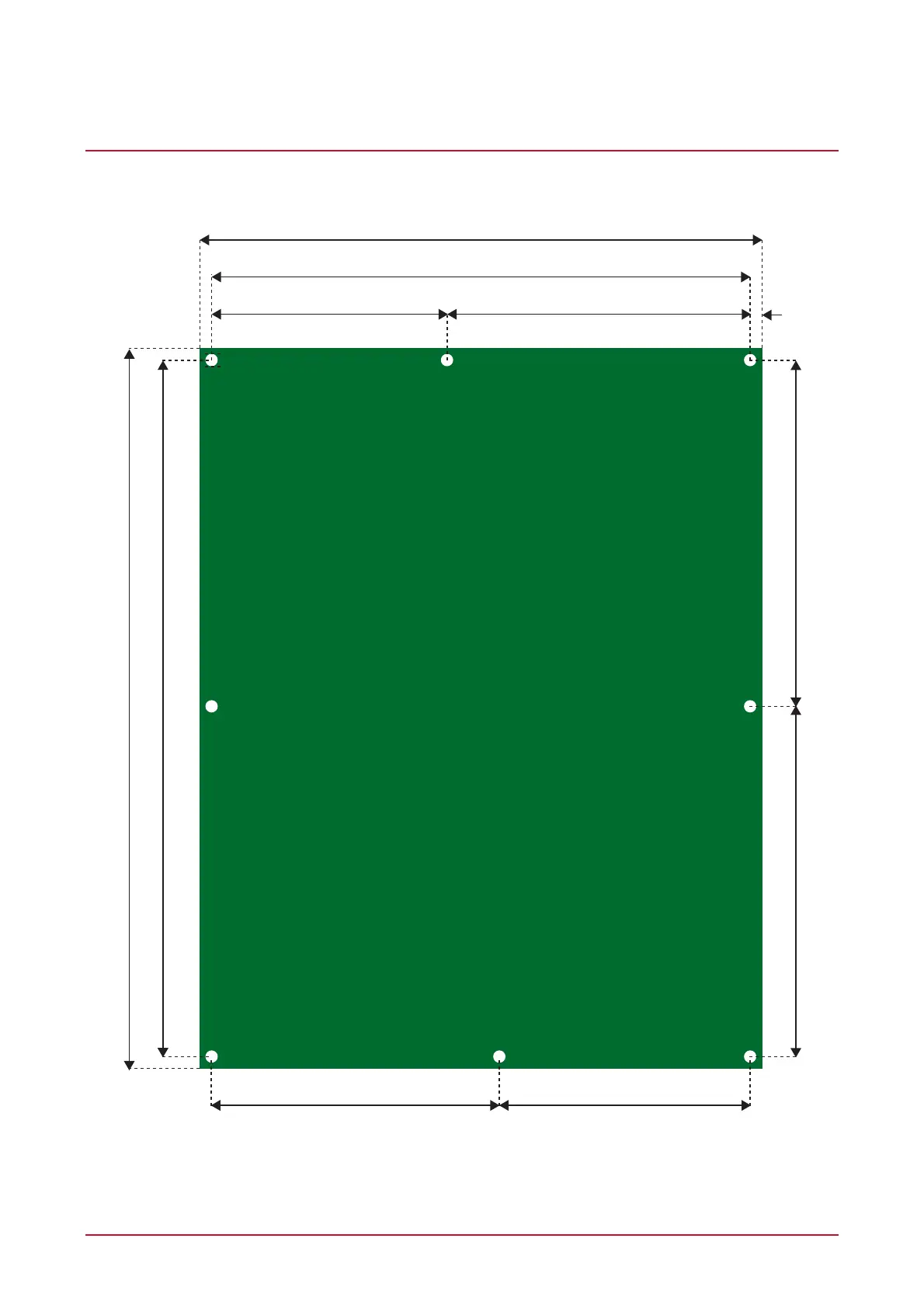

The mechanical layout shown below outlines the essential details needed to help ensure the correct installation
of the Protege Controller.
2mm
183mm
93.5mm 81.5mm
175mm
76.5mm 98.5mm
PRT-CTRL-SE
112.2mm
234mm
225mm
113.6mm
5mm diameter
