FC6A S
ERIES
M
ICRO
S
MART
A
LL
-
IN
-O
NE
T
YPE
C
OMMUNICATION
M
ANUAL
FC9Y-B1730 8-29
8: J1939 C
OMMUNICATION

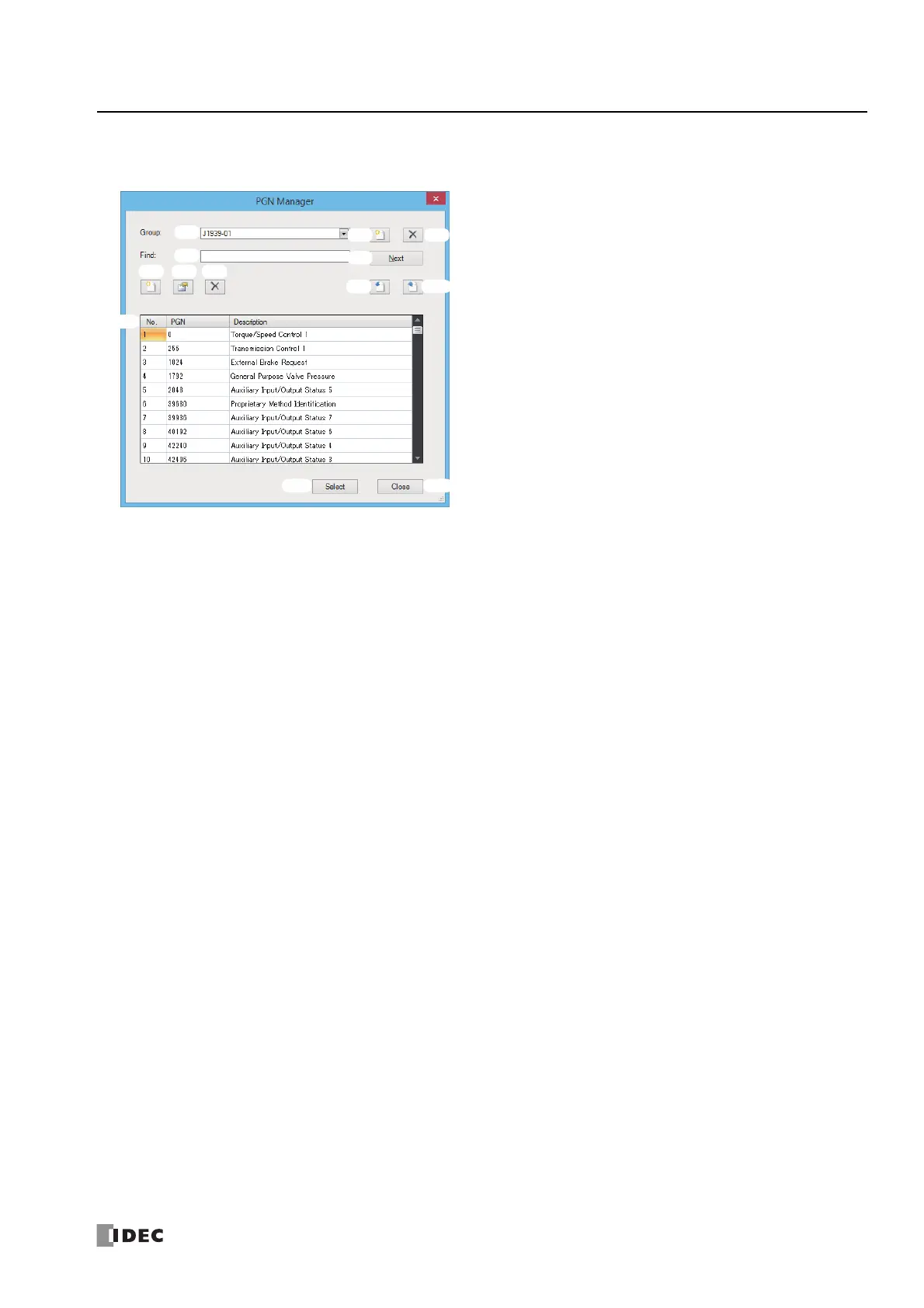

PGN Manager
PGNs for transmitted and received messages are collectively managed with PGN Manager.
(1) Group list
Displays the registered PGN groups.
When the group is changed, the PGNs registered to the selected group are displayed in the PGN list (11).
J1939 has been registered in advance. A maximum of 20 groups including J1939 can be registered.
(2) Add group button
Adds a group.
Click this button to display PGN Group Editor. Add a new group with PGN Group Editor. For details, see "PGN Group Editor" on
page 8-31.
The added group is added to the group list.
(3) Delete group button
Deletes a group.
Select a group from the group list and click this button to delete it.
The default group J1939 cannot be deleted.
(4) Find
Enter a string to find in the PGN list as a maximum of 128 bytes.
(5) Next
Finds the string entered in Find in the PGN list. Enter a string in Find and click this button.
(6) Add PGN button
Adds a PGN to the group.
Select the group in the group list where the PGN will be added and click this button to display PGN Editor.
Add a new PGN with PGN Editor. For details, see "PGN Editor" on page 8-31.
The added PGN is added to the PGN list.
(7) Edit PGN button
Edits a PGN.
Select a registered group in the group list that contains the PGN to edit, and then select the PGN to edit in the PGN list. Click
this button to display PGN Editor.
Edit the PGN in PGN Editor. For details, see "PGN Editor" on page 8-31.
The content of the PGN selected in the PGN is updated.
(8) Delete PGN button
Deletes a PGN.
Select a registered group in the group list that contains the PGN to delete, and then select the PGN to delete in the PGN list.
Click this button to delete the PGN.
(1)
(4)
(2)
(5)
(3)
(6) (7) (8)
(9)
(10)
(12) (13)
(11)
To Next Page
