11: W
EB
S
ERVER
11-10 FC6A S
ERIES
M
ICRO
S
MART
A
LL
-
IN
-O
NE
T
YPE
C
OMMUNICATION
M
ANUAL
FC9Y-B1730

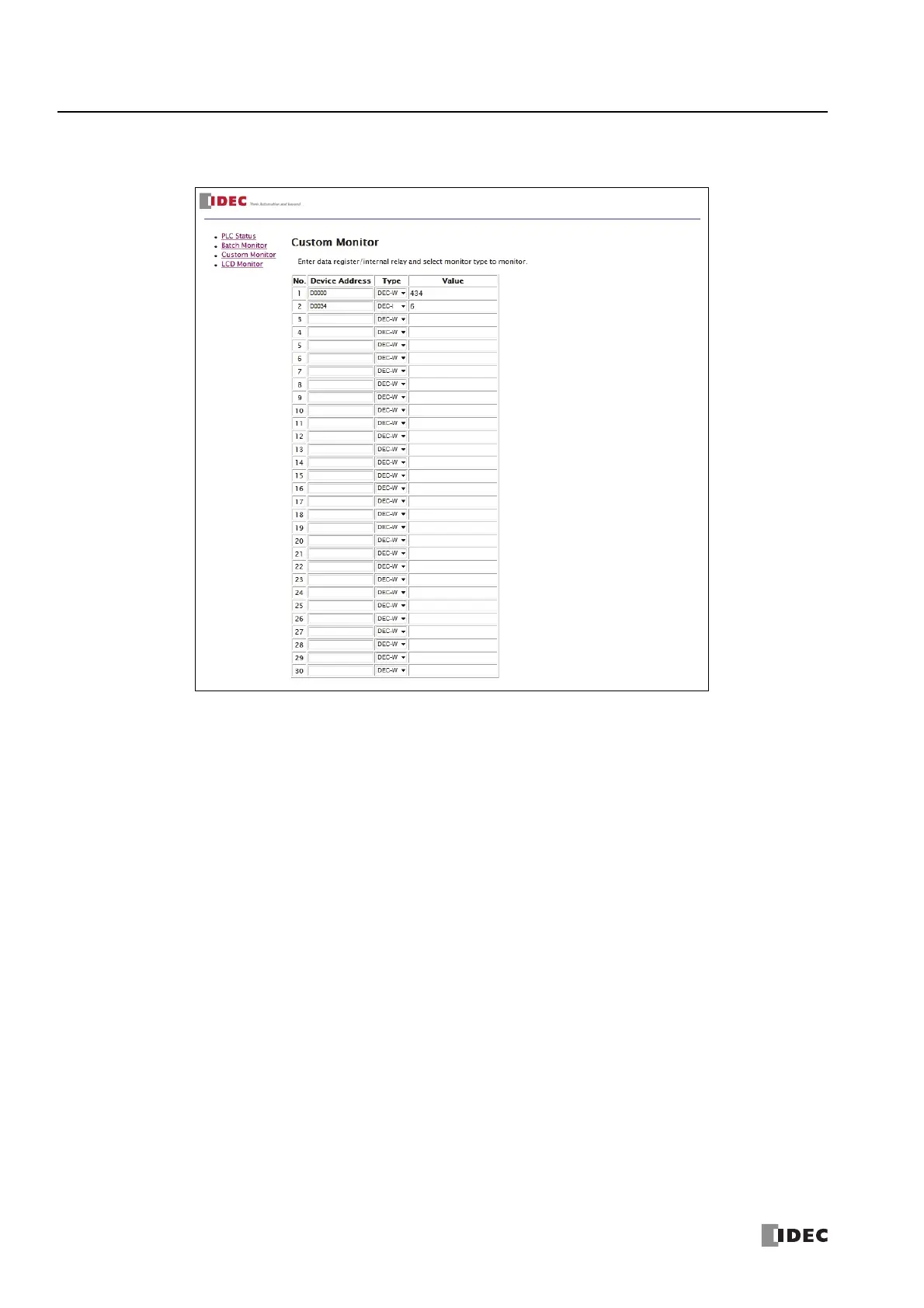

■ Custom Monitor
In the custom monitor, a maximum of 30 devices and corresponding data types can be specified to monitor and control.
• Operation procedure
1. Enter the device (type and number) in the Device Address.
"D" (data register) or "m" (internal relay) can be specified. Specify data device number in decimal, such as D2058 or m0112.
2. Select the Type to display the corresponding device in the desired format.
Data registers or internal relays values are shown in the format specified by the monitor type. See the web data type for the
available data types.
3. Click the monitored data that is displayed under Value.
A dialog box to write a data is shown. The entered value is written to the FC6A Series MicroSmart.
