3: C OMMUNICATION S ETTINGS
Programming WindLDR

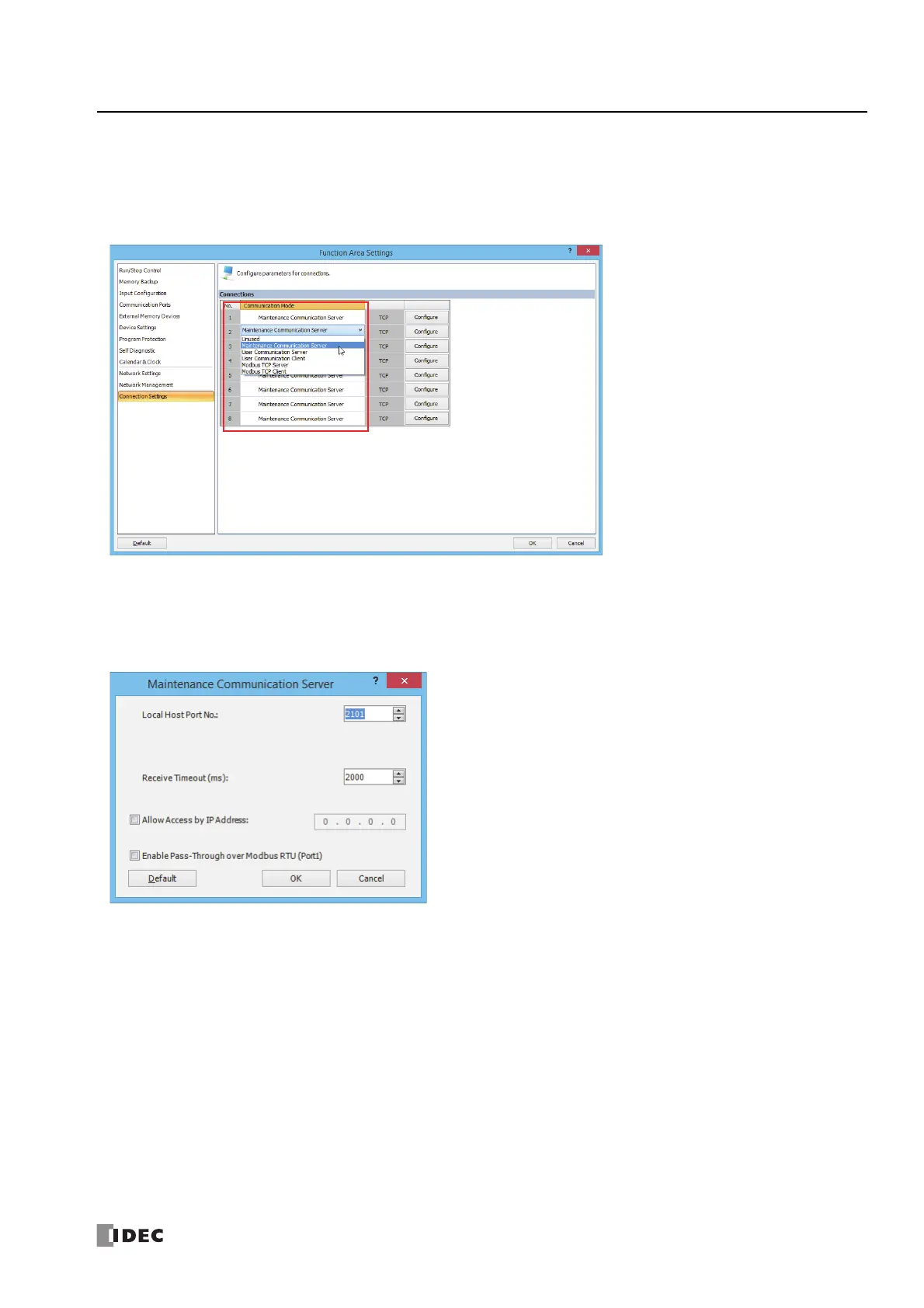

1. From the WindLDR menu bar, select Configuration > Connection Settings.
The Function Area Settings dialog box is displayed.
2. Click Communication Mode for the port to be used and select communication mode of the connection to use.
Configure the communication mode allocated to a maximum of eight connections that can be used as client or server. Each
connection can be set to a different port number. Set connections that are not used to Unused.
A dialog box is displayed according to the communication mode.
3. Specify the parameters according to the communication format of the destination device.
4. Click OK.
5. Use the Module Configuration Editor to configure the HMI module network settings.
On the Configuration tab, in the PLCs group, select Expansion Modules.
