4: M AINTENANCE C OMMUNICATION
4-10 FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE C OMMUNICATION M ANUAL FC9Y-B1730

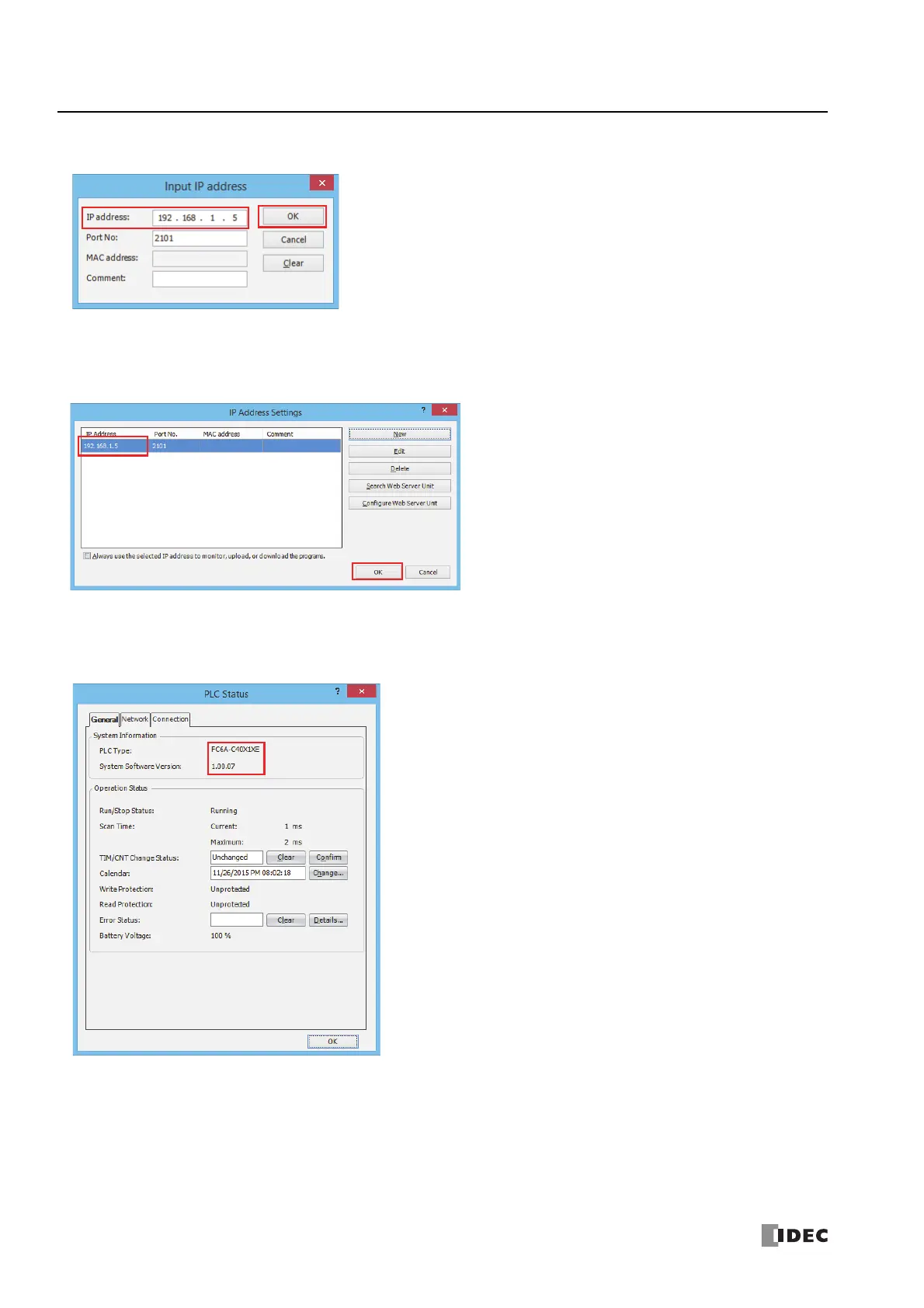

16. Enter the IP address entered in step 2 and click OK.
17. From the WindLDR menu bar, select Online > Monitor > Monitor.
The IP Address Settings dialog box appears.
18. Select the IP address you entered and click OK.
19. From the WindLDR menu bar, select Online > PLC > Status.
The PLC Status dialog box appears.
20. Check that the FC6A Series MicroSmart module type and system software version are displayed correctly.
Configuring the initial Ethernet setup for the maintenance communication server is now complete. You can download and upload
user programs and monitor and change device values via Ethernet.
