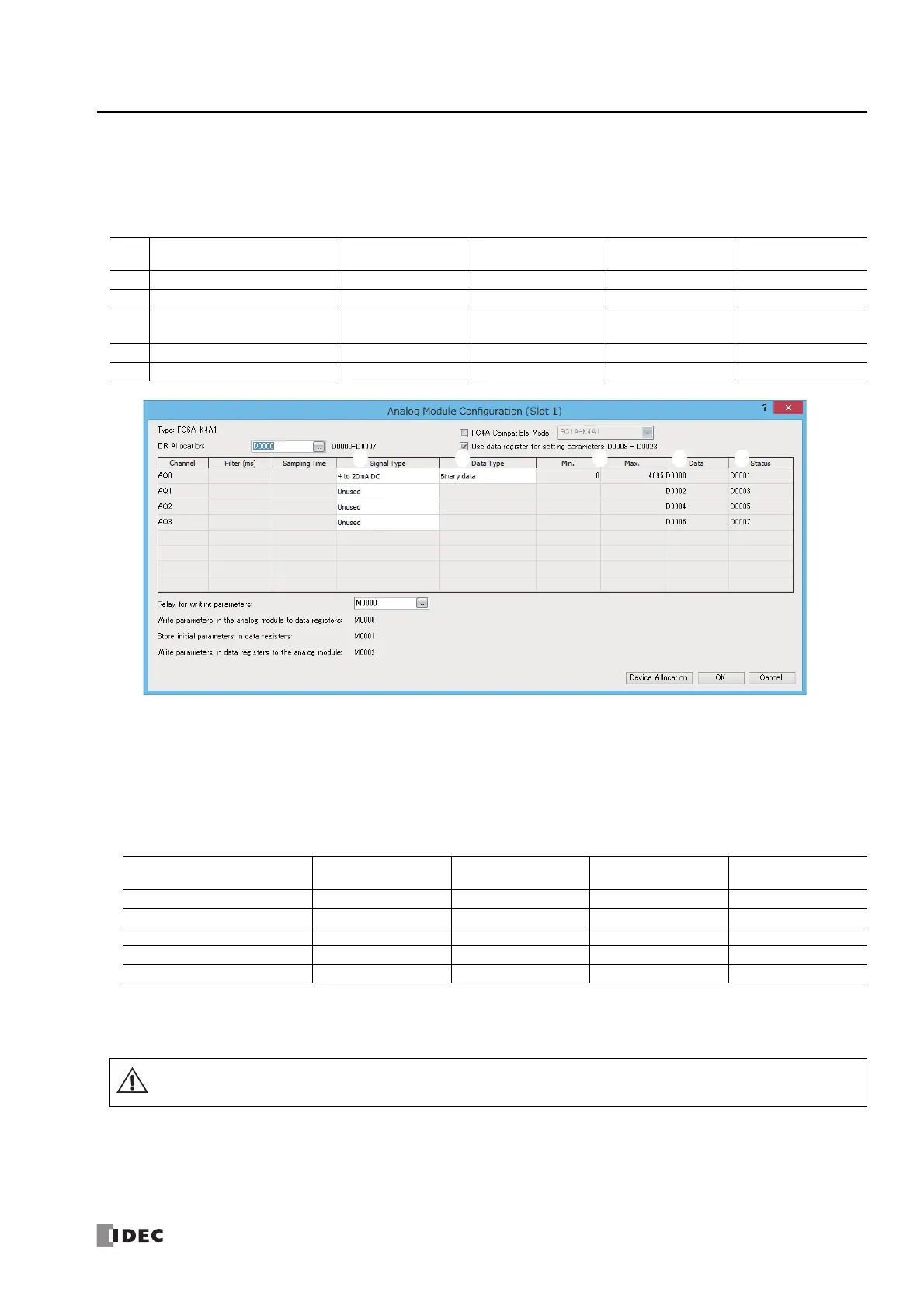

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 9-11
9: A NALOG I/O M ODULES
Analog Output Type
The following parameters are for configuring the analog outputs on the analog output modules and the mixed analog I/O modules.
Yes: Parameters, ―: No parameters
(1) Signal Type
The signal type that can be set differs according to the analog I/O module model. Select the analog I/O module that
corresponds to the user application and set the signal type. There are five types of signal types for the analog outputs, which are
detailed as follows.
Yes: Supported, -: Not supported
No. Parameter
FC6A-K2A1
FC6A-K2A4
FC6A-K4A1
FC6A-K4A4
FC6A-L06A1
FC6A-L06A4
FC6A-L03CN1
FC6A-L03CN4
(1) Signal Type Yes Yes Yes Yes
(2) Data Type Yes Yes Yes Yes
(3)
Minimum and maximum values
(Data type)
Yes Yes Yes Yes
(4) Data Yes Yes Yes Yes
(5) Status Yes Yes Yes Yes
Signal Type
FC6A-K2A1
FC6A-K2A4
FC6A-K4A1
FC6A-K4A4
FC6A-L06A1
FC6A-L06A4
FC6A-L03CN1
FC6A-L03CN4
Unused
*1
Yes Yes Yes Yes
0 to 10 V Yes Yes Yes Yes
-10 to +10 V Yes Yes Yes Yes
0 to 20 mA Yes Yes Yes Yes
4 to 20 mA Yes Yes Yes Yes
*1 Channels that are set to unused are not scanned.
The circuit is setup the same as when signal type: 0 to 10 V is selected.
A channel set to unused always outputs 0 V.
(4) (5)(1) (2) (3)
The device connected to the analog I/O module may be damaged if the analog output signal type is mistakenly set and
used. Please use caution when setting the analog output signal type.
Caution
