2.1 > Box opening
At the box opening, components shall be extracted from the protection casing as depicted in the pictures
below.

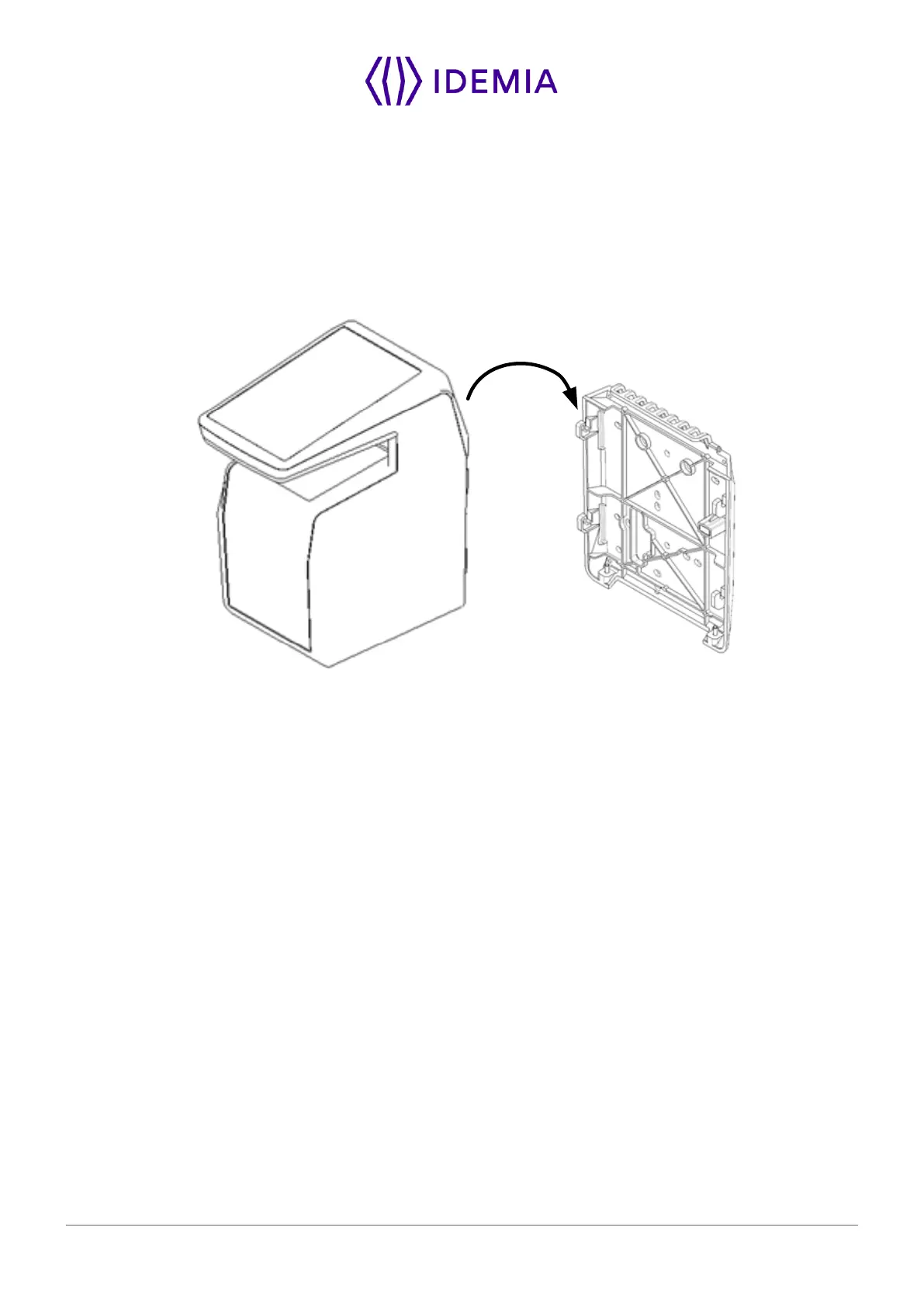

Extract the wall plate (which is not screwed to the terminal) and keep it separate until the installation of the
terminal is completed. The screwing of the product to the wall plate is the last stage of the installation.
Figure 3: Box Opening
