4.1 > Wiring overview
Before proceeding, make sure that the person in charge of installation and connections is
properly connected to earth, in order to prevent Electrostatic Discharges (ESD).
Power supply ground shall not be used for peripheral ground. All other grounds can be
used indifferently.
Note that all connections of the MorphoWave SP terminal described hereafter are of SELV (Safety Electrical
Low Voltage) type.

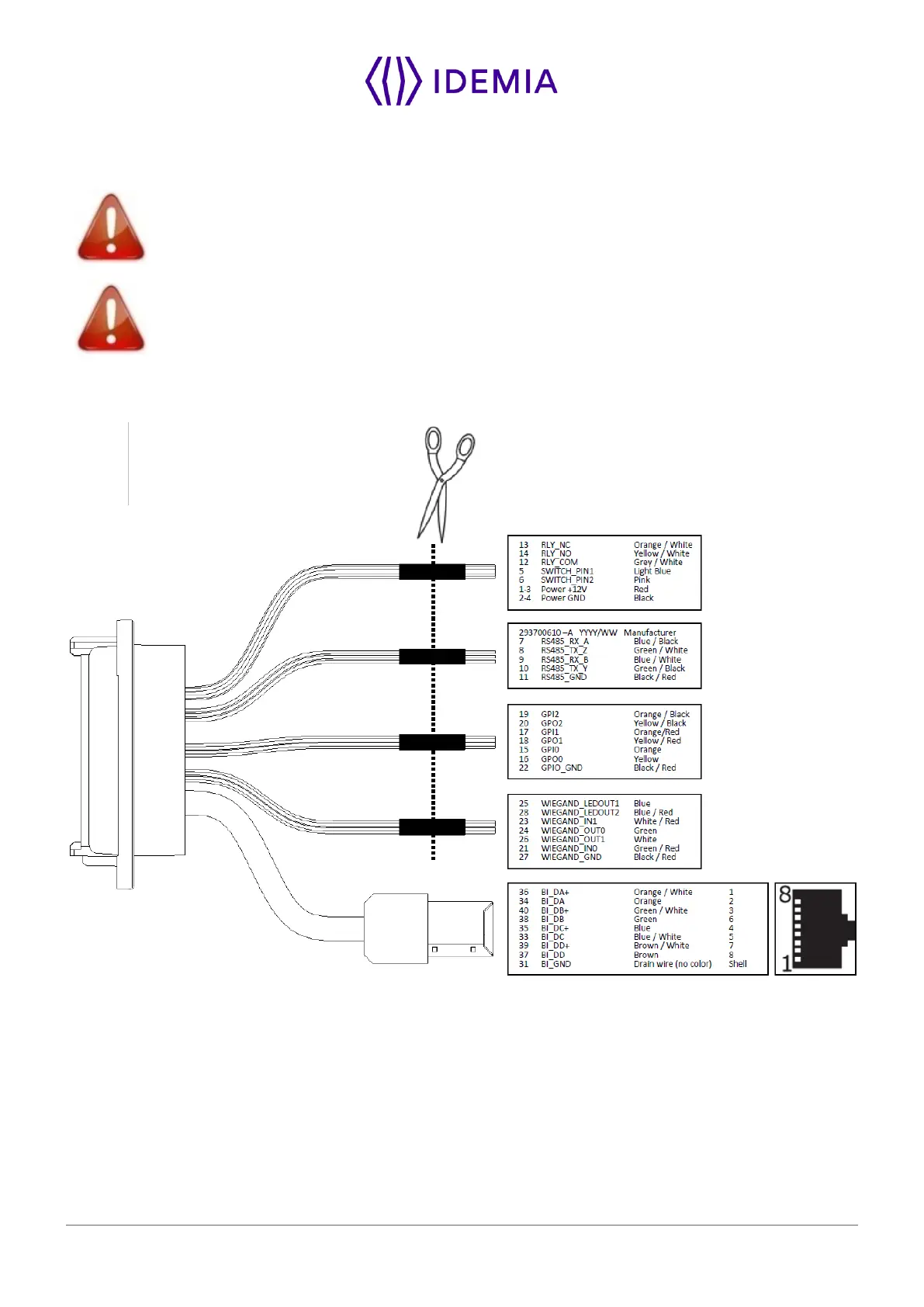

Figure 20: Cabling layout
