MorphoWave Compact - 2018_2000035853-v81
3.3.5 > Connect the connector assembly on the device

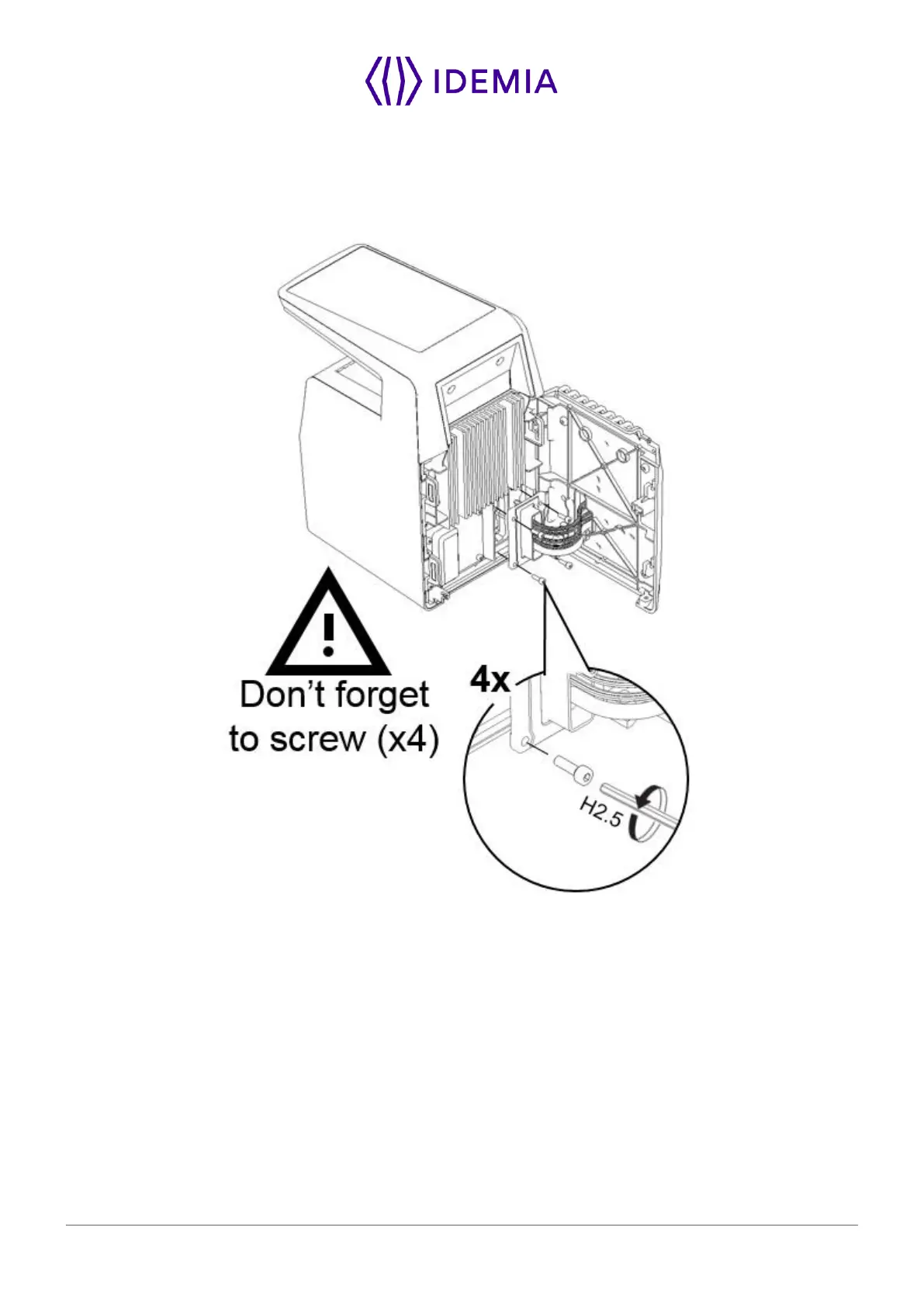

Attach the connector assembly on the device with the 4 screws.
Figure 16: Connector assembly on the device
