MorphoWave Compact - 2018_2000035853-v81
Contact relay (normally open)
Contact relay (normally closed)

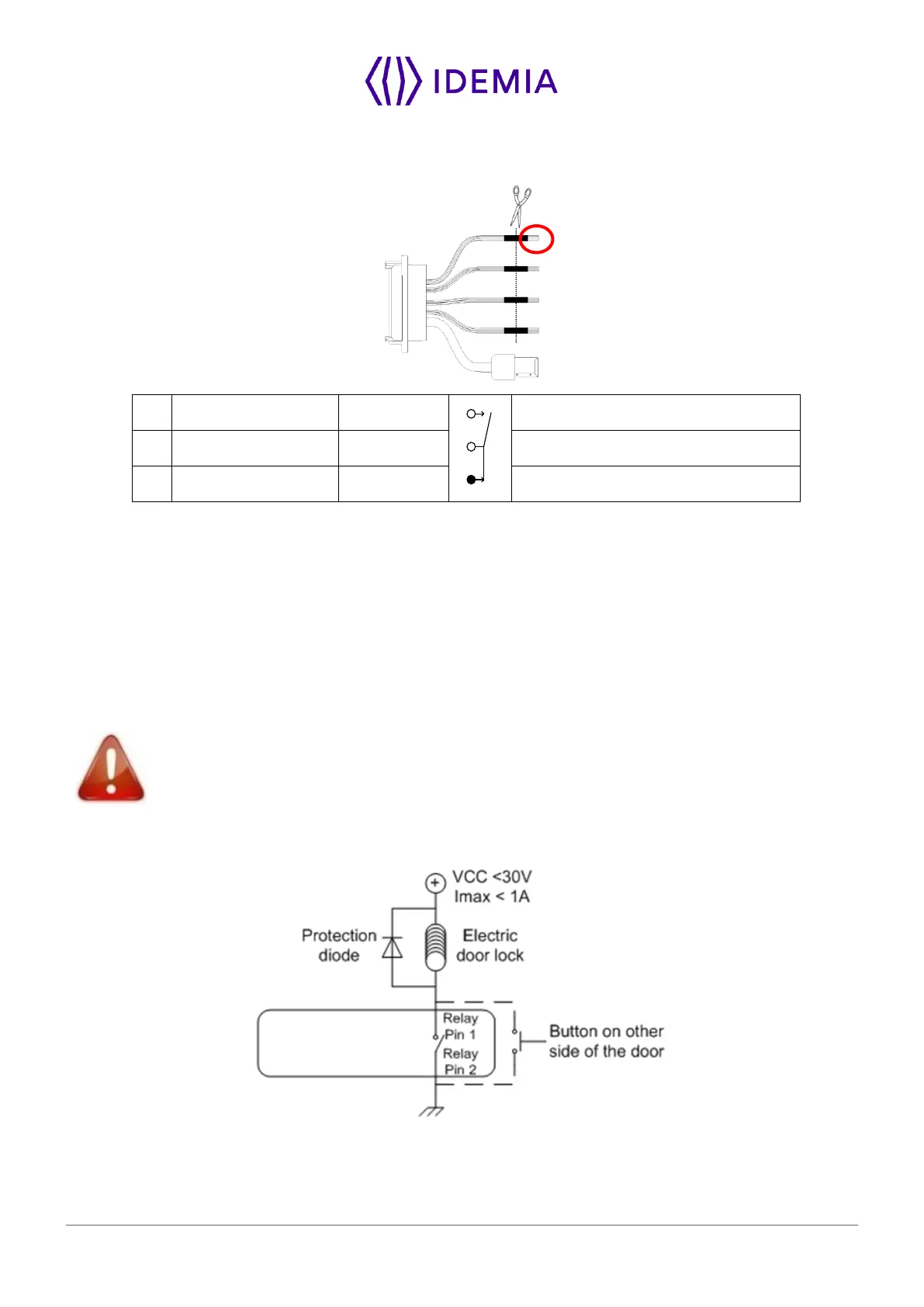

Figure 22: Output relay wiring
Nominal characteristics of relay
Load characteristics:
1 A max @ 30 VDC (according to the safety extra low voltage requirements independently of the power
supply),
Resistive load or inductive load; see warning information hereafter for inductive load,
The internal relay is designed for at least 100 000 cycles (resistive load).
Inductive load management requires a parallel diode for a better contact lifetime.
Example of connection for electrical door locks
Figure 23: Example of electric latch connection
