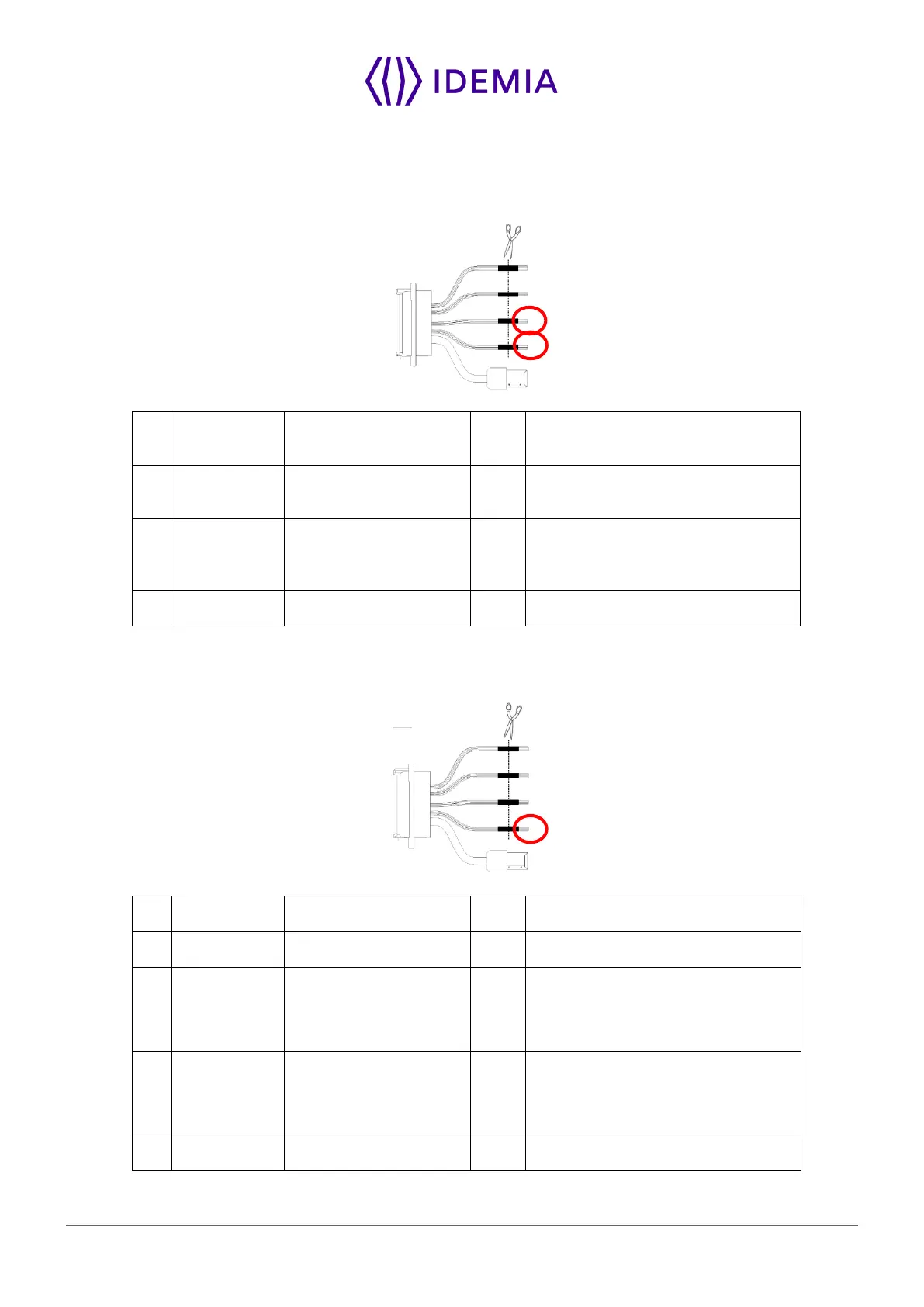

4.7 > Serial port wiring
DataClock Input
21
Green / Red
WIEGAND_IN0
In
Data (Output type required: Open
drain only)
23
White / Red
WIEGAND_IN1
In
Clock (Output type required: Open
drain only)
16
Yellow
GPO0
Out
Card present signal (if configured,
only one selectable for Morpho
Legacy)
27
Black / Red
WIEGAND_GND
Ground for Wiegand
Figure 27: Serial port wiring DataClock Input
DataClock Output
24
Green
WIEGAND _OUT0
Out
Data ( 5V TTL )
26
White
WIEGAND _OUT1
Out
Clock ( 5V TTL )
25
Blue
WIEGAND_LEDOUT1
In
LED IN 1 (option): panel feedback
(Output type required: Open drain or
5V+/-5%)
28
Blue / Red
WIEGAND_LEDOUT2
In
LED IN 2 (option): panel feedback
(Output type required: Open drain or
5V+/-5%)
27
Black / Red
WIEGAND_GND
Ground for Wiegand
Figure 28: Serial port wiring DataClock Output
