35
MorphoWave Compact - 2018_2000035853-v81
3.3.3 > Attach the base plate on the wall
Fix the base plate on the wall with the 4 screws.

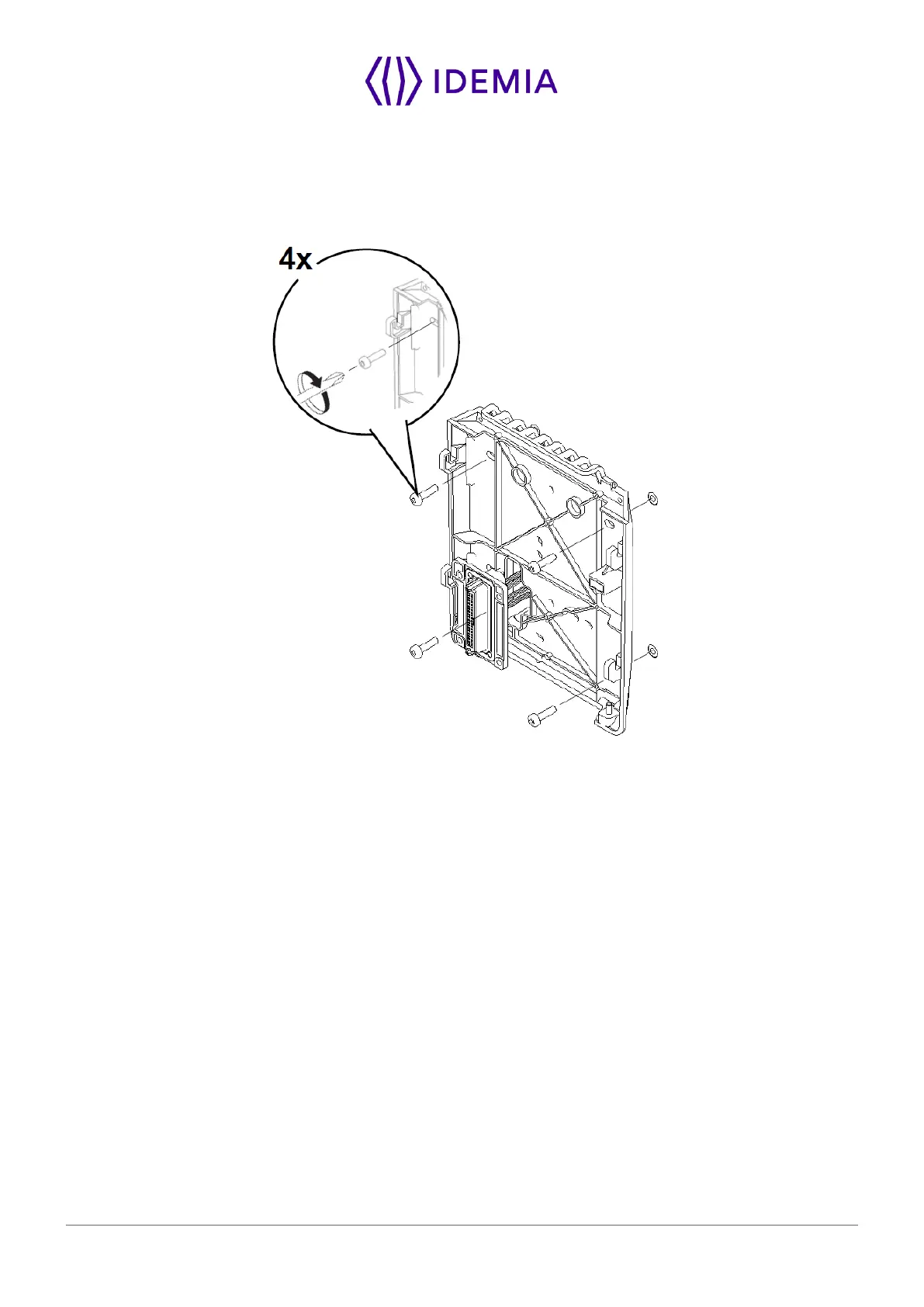

Figure 14: Base plate fixation on the wall
