4.2 > Power Supply
PoE+ and external power supply are not used at the same time: if both power supplies are used, priority
is given to the first power supply connected. If external power supply is shut down, switch to PoE+ without
reboot is not guaranteed.
External Power supply
1-3
Red
Power Supply 12-24V DC
In
Positive 12-24 Volts, power supply
2-4
Black
Power ground
In
Ground power supply

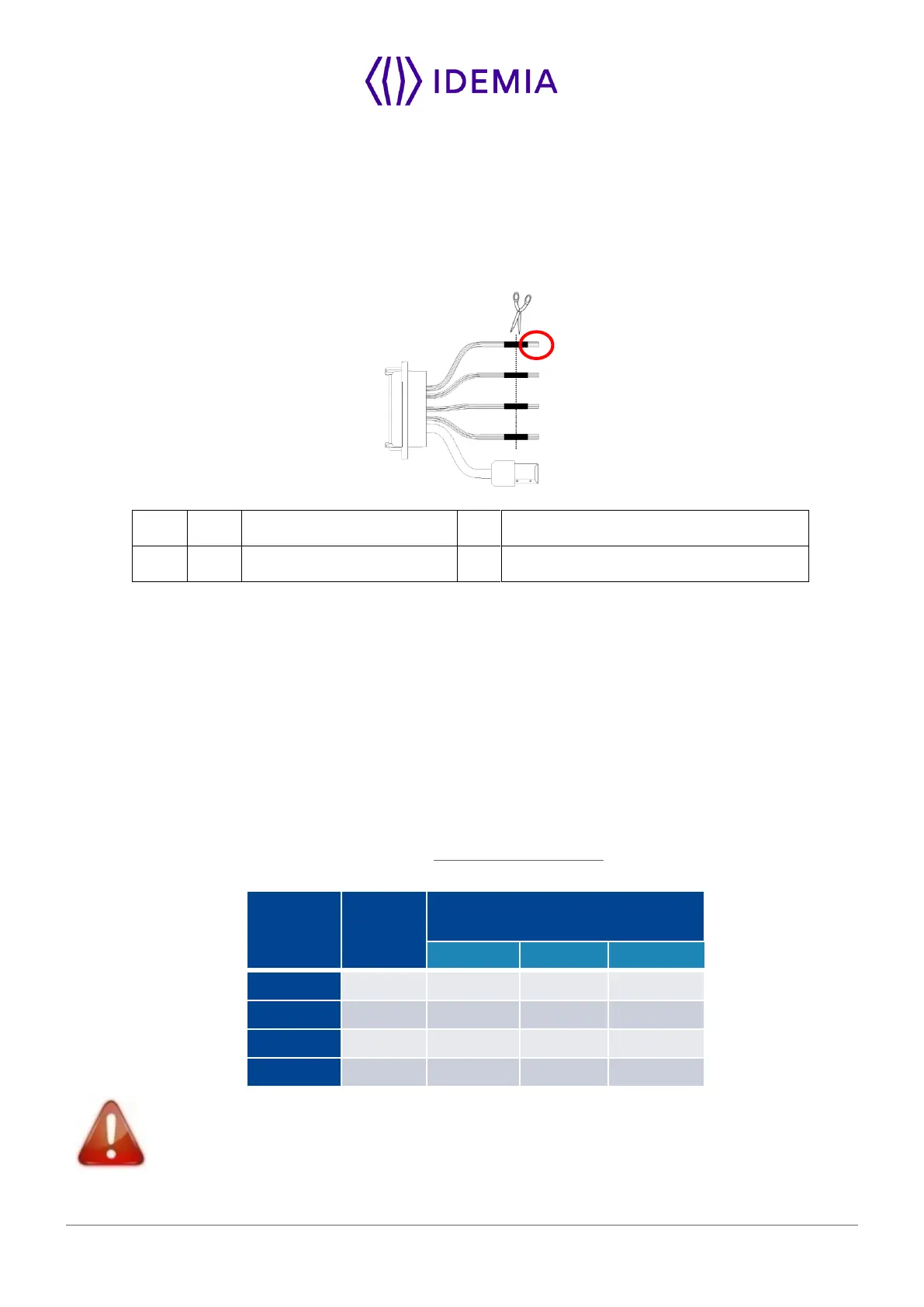

Figure 21: Power supply wiring
The External power supply
Must comply with IEC 60950-1 standard marked Class 2, Limited Power source (LPS)
12V to 24V DC (regulated and filtered) 2.5 Amp min at 12V.
If sharing power between devices, each unit must receive 2.5A (e.g. two units would require a 12vDC,
5A supply).
IDEMIA recommends using a 24V power supply and AWG16 gauge cable. The voltage measured on the
product block connector of the terminal must be equal to 12V-24V (-15% / +10%).
The voltage drop due to the cable shall be taken into account. The table below shows as an example the
maximum distance between power supply and one (1) unique device, depending on cable gauge and
power supply rating.
Gauge
AWG
Section
(mm
2
)
Maximum distance (meters)
vs power source rating
12V+/-10%
12V+/-5%
24V+/-10%
16
1.31
9 m
20 m
300 m
18
0.82
6 m
12 m
200 m
20
0.52
3 m
8 m
120 m
22
0.32
2 m
5 m
75 m
If several terminals are powered by the same cable, make sure to select a wire gauge that
complies with maximum voltage drop, cable length, and power source minimum voltage
rating.
