Idemia MorphoWave SP - GPIO Wiring

51
MorphoWave Compact - 2018_2000035853-v81
4.8 > GPIO wiring
19
Orange / Black
GPI2
In
Digital Input (1,8V to 5V)
20
Yellow / Black
GPO2
Out
Digital Output (5V – 5mA max)
17
Orange / Red
GPI1
In
Digital Input (1,8V to 5V)
18
Yellow / Red
GPO1
Out
Digital Output (5V – 5mA max)
15
Orange
GPI0
In
Digital Input (1,8V to 5V)
16
Yellow
GPO0
Out
Digital Output (5V – 5mA max)
22
Black / Red
GPIO_GND
Ground

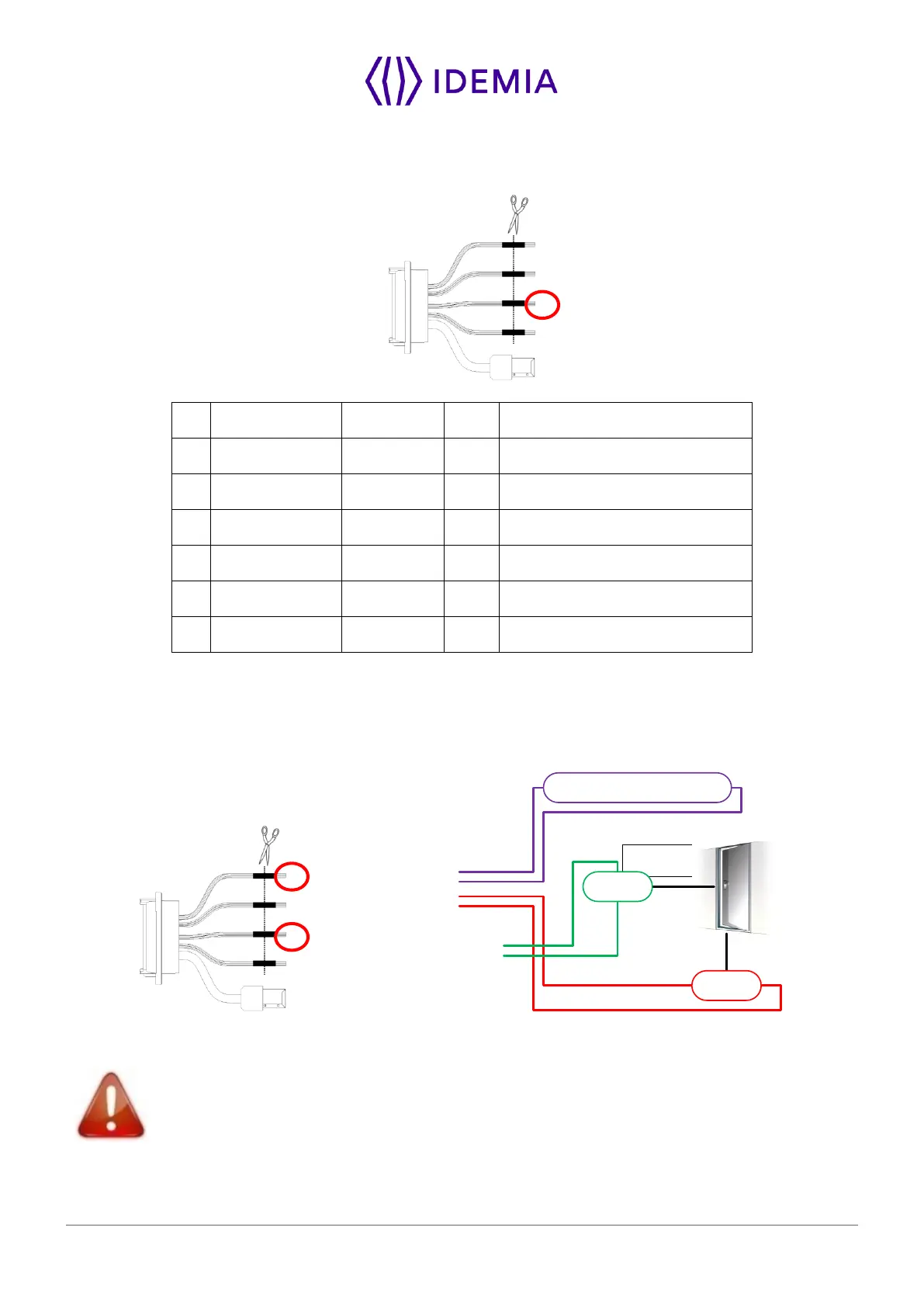

Figure 31: GPIO wiring
Single Door Access Control (SDAC) implementation
Figure 32: SDAC wiring
If door contact is not used, GPI1 and GPO1 shall be connected together
External Power
supply
GPI_1
GPO_0
Push button /
Motion sensor
GPI_0
GPO_1
RELAY_COM
RELAY_NO/NC
Door
contact
Door
strike
