MorphoWave Compact - 2018_2000035853-v81
RS485
10
Green / Black
RS485_TX_Y
In/Out
RS485 Rx/Tx non inverting signal (A)
8
Green / White
RS485_TX_Z
In/Out
RS485 Rx/Tx inverting signal (B)
11
Black / Red
RS485_GND
Ground

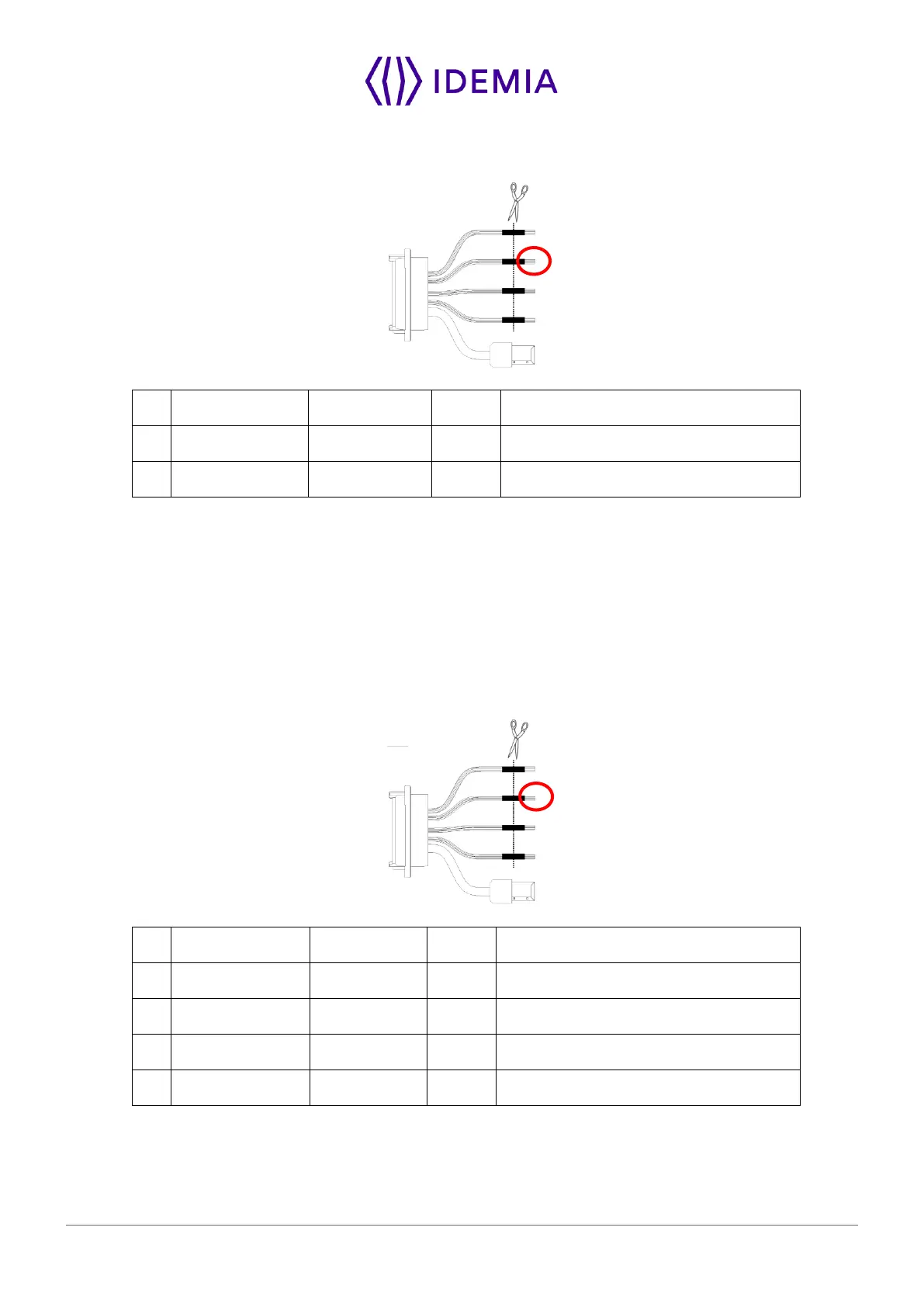

Figure 29: Serial port wiring RS485
RS485 implementation is limited to half-duplex communication. So only Tx+, Tx- and ground reference
signals are necessary.
Depending on the RS485 network, an impedance adaptation may be required.
For farthest terminal, a 120-Ohms resistor termination may be added outside the terminal between TX+
and TX-.
RS422
7
Blue / Black
RS422_RX_A
In
RS422 non inverting Receive
9
Blue / White
RS422_RX_B
In
RS422 inverting Receive
10
Green / Black
RS422_TX_Y
Out
RS422 non inverting Transmit
8
Green / White
RS422_TX_Z
Out
RS422 inverting Transmit
11
Black / Red
RS422_GND
Ground
Figure 30: Serial port wiring RS422
RS422 interface is a full duplex communication.
